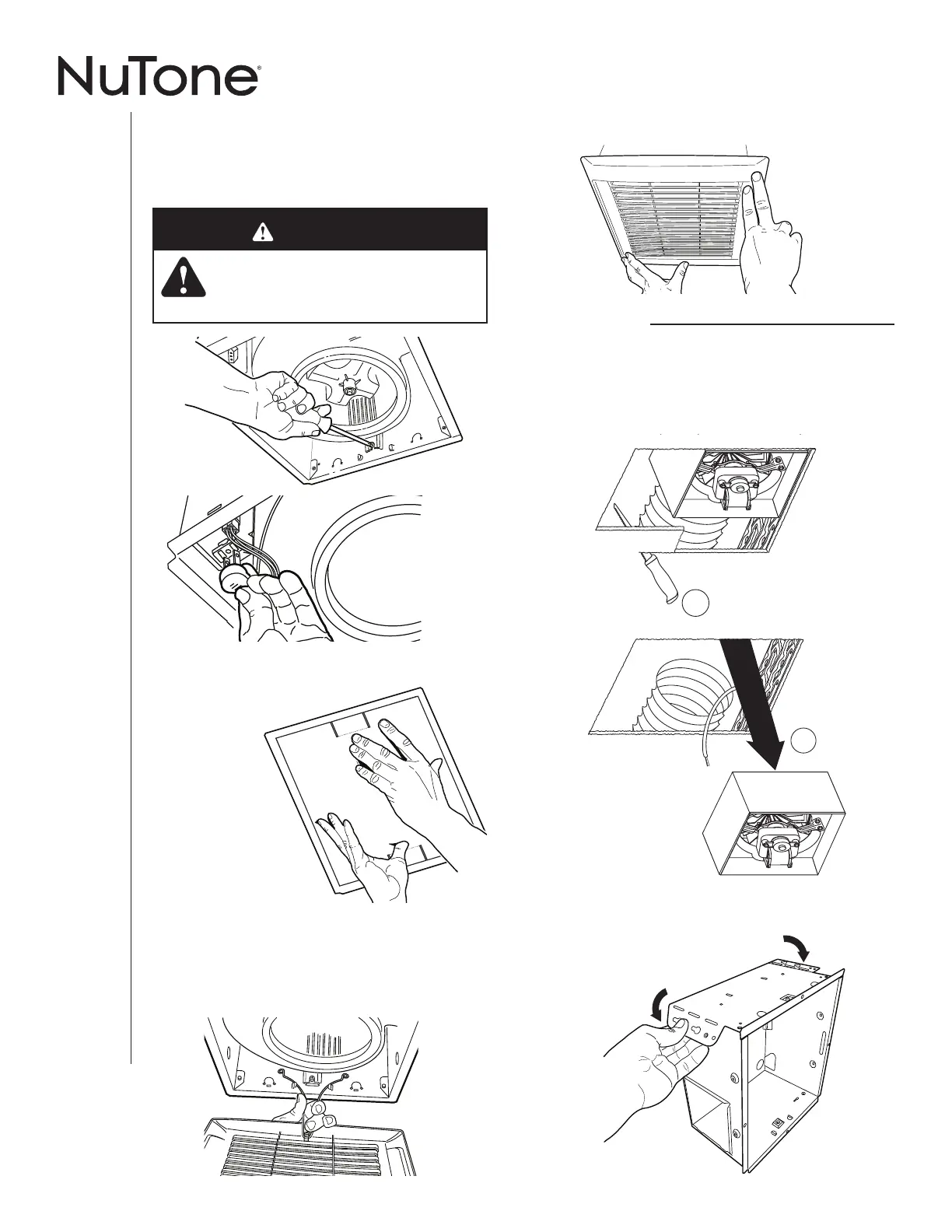

INSTALLATION AND USE & CARE INSTRUCTIONS
INSTALLATION
6
9. Finish ceiling, remove mask,
then install grille.
Remove mask from housing. Squeeze grille springs
and insert into slots in housing.
7. Install blower.
Re-install blower. Secure blower with 2 screws from parts
bag and plug blower into black receptacle. Plug in humidity-
sensing control.
3. Remove old fan.
Enlarge ceiling opening (if necessary) to 9¾-inches )
(parallel to joist) by 10½-inches (perpendicular to joist).
Leave ductwork and wiring in place.
1
2
4. Fold mounting ears flat against
housing.
RETROFIT
CAUTION
• Make sure that the wiring inside of
the housing does not interfere with
re-installation of the blower.
8. Install housing mask.
Place mask into housing
opening to
prevent drywall
spray and
construction dust
from damaging
blower.
Push grille up against ceiling.
Leave this mask in place to prevent
construction dust, drywall spray, or paint
from damaging inside of product.
REMOVE MASK BEFORE
INSTALLING GRILLE.
Laissez ce masque en place pour empêcher
la poussière de construction, le plâtre ou la
peinture, etc. d’endommager
l’intérieur du produit.
ENLEVEZ CE MASQUE AVANT
D’INSTALLER LA GRILLE.
Deje esta cubierta en su lugar para evitar
que polvos de construcción, rocíos de yeso
o pintura dañen el interior del producto.
QUITE LA CUBIERTA ANTES
DE INSTALAR LA REJILLA.
99352432A
