NuTone NM200 Series User Manual

MODELS NM200WH • NM200AL
Page 4

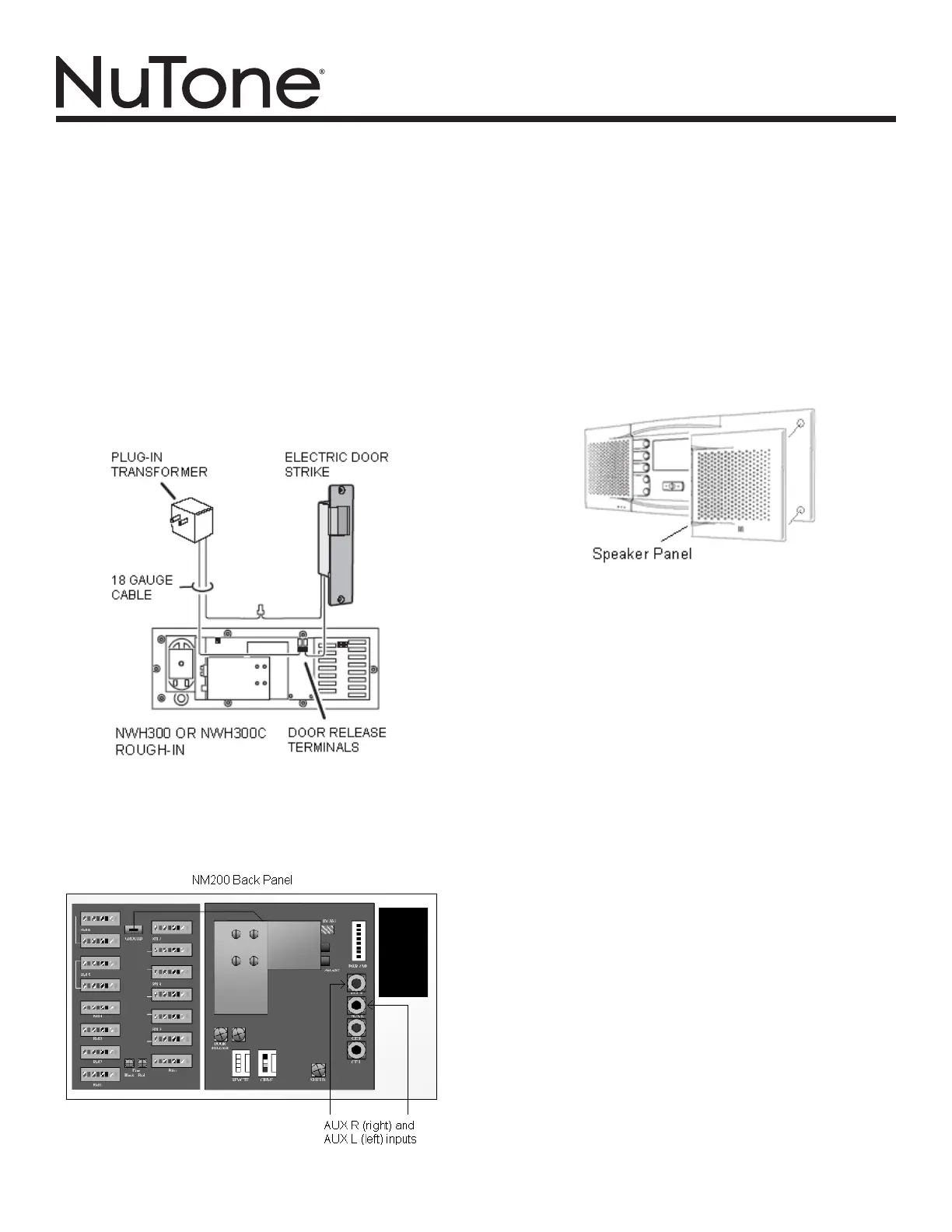

Door Release Connection
Tousethedoorrelease,connectthe18gaugelowvolt-
age cables from the remote power transformer and the door
release striker. The 24 Volt/2 Amp dry contact switch closure
may also be used for home automation or security panel panic
alarm interface.
Note: The door release operation may only be used for one type
of function per application.
External Audio Sources
PlugintheRCA™phonoplugstotheAUXjacksasmarkedfor
the source audio equipment.
POWERING UP THE NM200
Afterallconnectionshavebeenmade,insertthepowerpluginto
the transformer and secure the master to the rough-in using the
2 screws provided. If using the NF200C frame with a NC300
CDplayer,installthemasterunitovertheframe.Donotover
tighten the screws as the plastic may distort or crack. Install the
speaker panel on the master.
Please be careful to only apply pressure on the speaker panel
at the corners and not in the middle. Check all functions by
following the guidelines in the Owners Manual shipped with
themasterunit.Ifanydifcultiesareencountered,recheckall
connections. If after reviewing these instructions and you are
unabletoresolveanyproblems,contacttechnicalsupportat1-
888-336-6151.
Antenna Connection
Connect the FM dipole coax antenna lead “F” connector to the
FM 75 Ohm “F” connector on the NM200 master as shown in the
previousgure.ConnecttheorangeAMantennawiretotheAM
terminal on the master.
