NuTone NS130BL User Manual

MODELS NS130BL • NS130SS • NS130WW
NS136BL • NS136SS • NS136WW
Page 6
KEY NO. PART NO. DESCRIPTION
1 97017397 3¼” x 10” Damper/Duct Connector *
2 97017398 7” Oval Duct Plate *
3 99526174 Recirculation Cap, Black
99526175 Recirculation Cap, White
99526146 Recirculation Grille, Black
99526147 Recirculation Grille, White
4 97017399 Rocker Switch, Black (2 Switches)
97017400 Rocker Switch, White (2 Switches)
5 99526148 Nameplate, Black
99526149 Nameplate, White
6 97017434 Recirculation Deector for 30” Hood,
Black *
97017435 Recirculation Deector for 30” Hood,
White *
97017436 Recirculation Deector for 36” Hood,
Black *
97017437 Recirculation Deector for 36” Hood,
White *
7 99526176 Recirculation Scroll Wall, Black
99526177 Recirculation Scroll Wall, White
8 97017403 Lamp Socket Holder Kit (Includes RH
& LH Socket Holder, Trim Ring,
Socket, & Splice Connectors)
9 97017404 Motor Mounting Bracket *
10 97017405 Motor *
11 97017406 High Speed Motor Capacitor *
12 97017407 Low Speed Motor Capacitor *
13 97017408 Blower Wheel (Includes Mounting
Ring)
14 99526154 Blower Wheel Mounting Ring
15 97017409 Bottom Cover, Black, for 30” Hood *
97017410 Bottom Cover, White, for 30” Hood *
97017411 Bottom Cover, Black, for 36” Hood *
97017412 Bottom Cover, White, for 36” Hood *
16 97017413 Non-duct Filter Kit for 30” Hood
(2 Filters & 8 Filter Clips)
97017414 Non-duct Filter Kit for 36” Hood
(2 Filters & 8 Filter Clips)
17 97017415 Filter Kit for 30” Hood (2 Filters)
97017416 Filter Kit for 36” Hood (2 Filters)
** 97017417 Parts Bag
* Includes hardware
** Not illustrated
Order replacement parts by PART NO. - not by KEY NO.
Replacement parts can now be ordered on our website. Please
visit us at www.nutone.com.

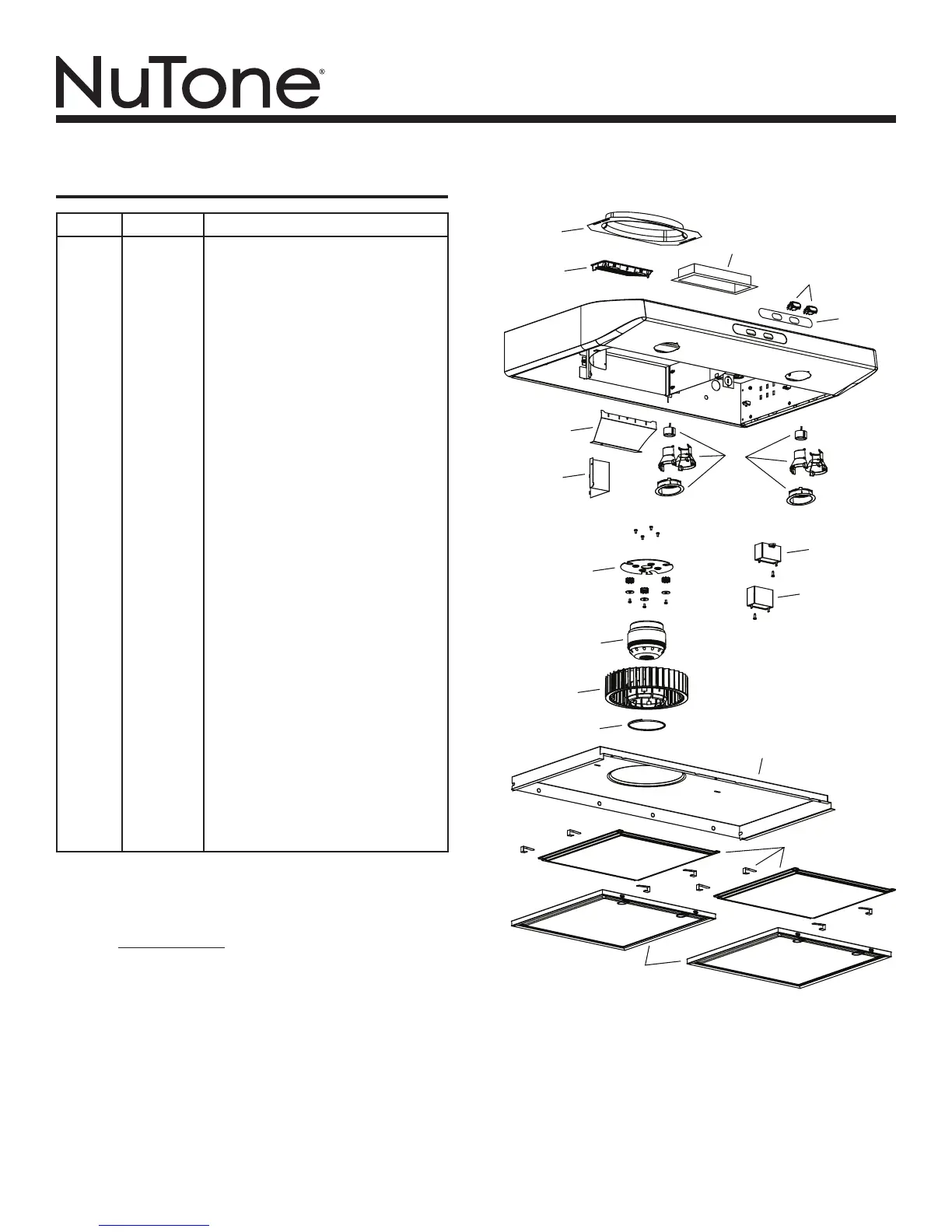

SERVICE PARTS
2
3
4
5
6
7
8
9
10
13
14
11
12
15
16
17
1
