6” ROUND DUCT INSTALLATION
4. Mount the 6” round adapter on the top of the hood, using 10 screws (included).
3
1
⁄4” X 10” DUCT INSTALLATION
4. Mount the 3
1
⁄4”x 10” adapter on the top of the hood, using 10 screws (included).
3
1
⁄4” X 10” DUCT INSTALLATION
1. Install the rubber gasket (included) on the top of the hood, as shown beside.
2. Mount the shutoff plate on the top of the hood, using 10 screws (included).

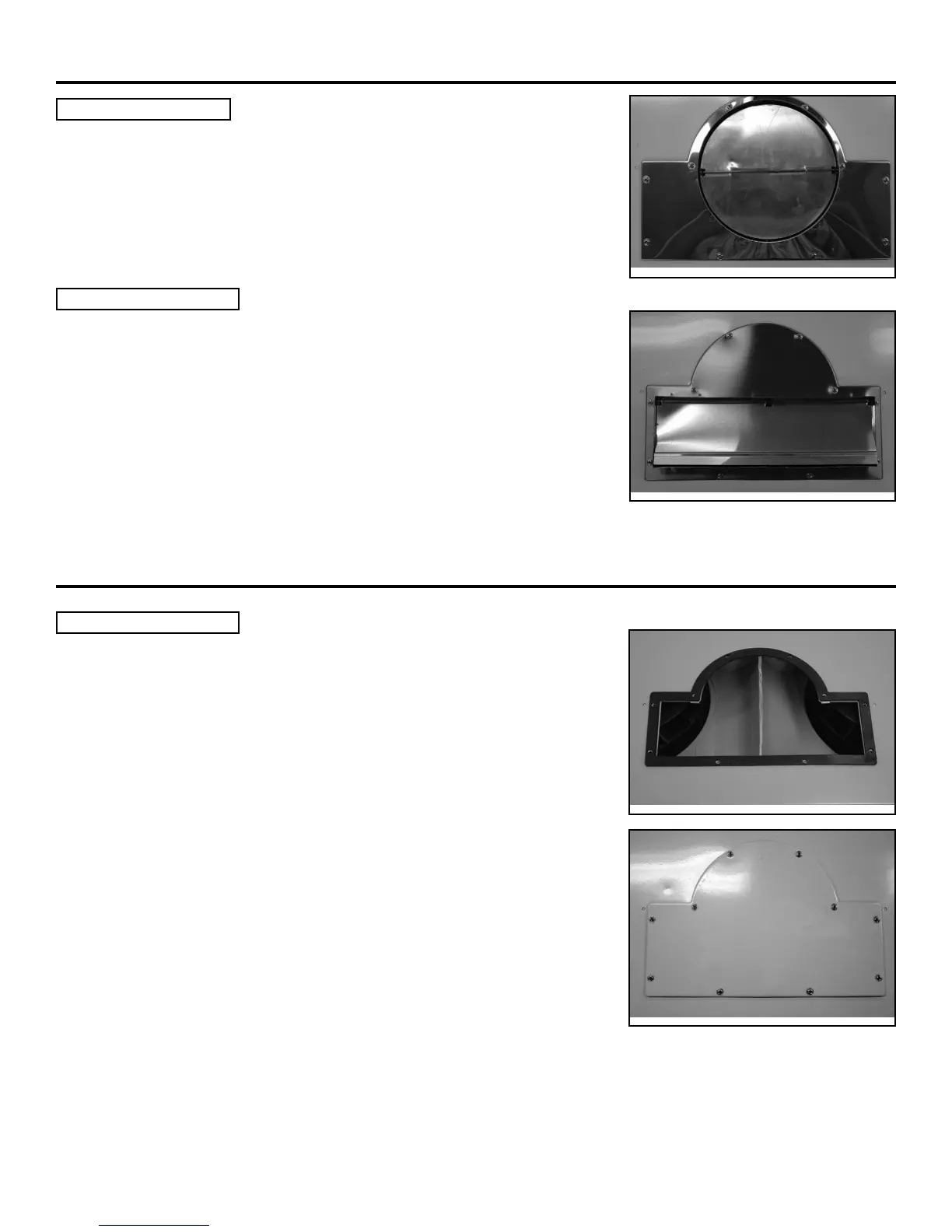

HOOD PREPARATION - VERTICAL DISCHARGE INSTALLATION (CONT’D)
HJ0001
HJ0003
-4-
HOOD PREPARATION - HORIZONTAL DISCHARGE INSTALLATION
HO0050
HO0051
