NuTone PM400SSV

INSTALLATION, USE & CARE INSTRUCTIONS
SERVICE PARTS
25
B
C
D
E
F
H
G
J
K
L
I

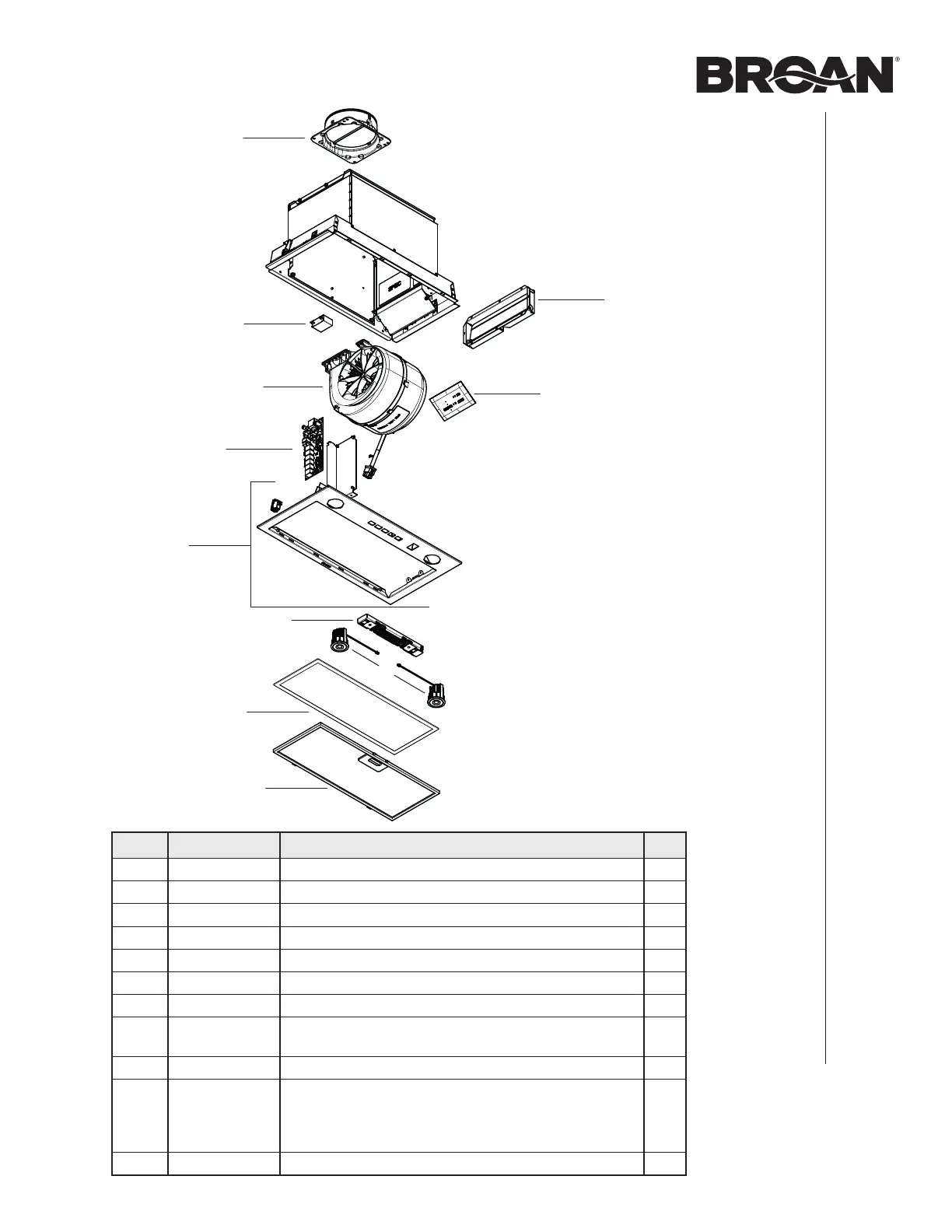

PM400SSV
KEY NO.PART NUMBER DESCRIPTION QTY.
1 SV08487-36 6-
IN. ROUND ADAPTER / DAMPER 1
2 S99271702 CAPACITOR 17 μF 1
3 S97021510 B
LOWER ASS’Y 400 CFM 1
4 S1108581 M
AIN PCB 1
5 S98012198-808 F
ACEPLATE 1
6 S1108579 S
OFT TOUCH 5-BUTTON CONTROL 1
7 S99271694 LED
MODULE ASSEMBLY (PAIR)1
8 S99010464
C
HARCOAL FILTER WITH CLIPS (NOT SHOWN) (NON-DUCTED INSTALLATION
ONLY, INCLUDED IN NON-DUCT KIT NO. HARKPM21)
1
9 S99010400 M
ICROMESH GREASE FILTER 1
10 S1104978
P
ARTS BAG INCLUDING : 4 NO. 8-18 X 1/4” METAL SCREWS,
4 NO. 8-32 X 1/4” MACHINE SCREWS,
8 NO. 8-15 X 5/8” PAN HEAD WOOD SCREWS,
4 NO. 6-18 X 5/8” TRUSS HEAD WOOD SCREWS.
1
11 SR740014 3¼”
X 10” ADAPTER / DAMPER 1
