NuTone PM400SSV User Manual

INSTALLATION, USE & CARE INSTRUCTIONS
INSTALLATION
5
For ADA compliance installation guidelines, please type the model number into our website.
RECOMMENDED TOOLS AND ACCESSORIES
• Measuring tape
• Phillips screwdriver no. 2
• Nut driver or socket 3/8”
• Flat blade screwdriver (to open knockout holes)
• Saw (to cut holes in cabinet)
• Sheet metal shears
• Pliers
• Metal foil duct tape
• Scissors (to cut metal foil duct tape)
• Pencil
• Wire stripper
• 2 Appropriate wire nuts
• Strain relief, 7/8” diameter (to secure house wiring
cable to the hood)
• Liner (optionnal)

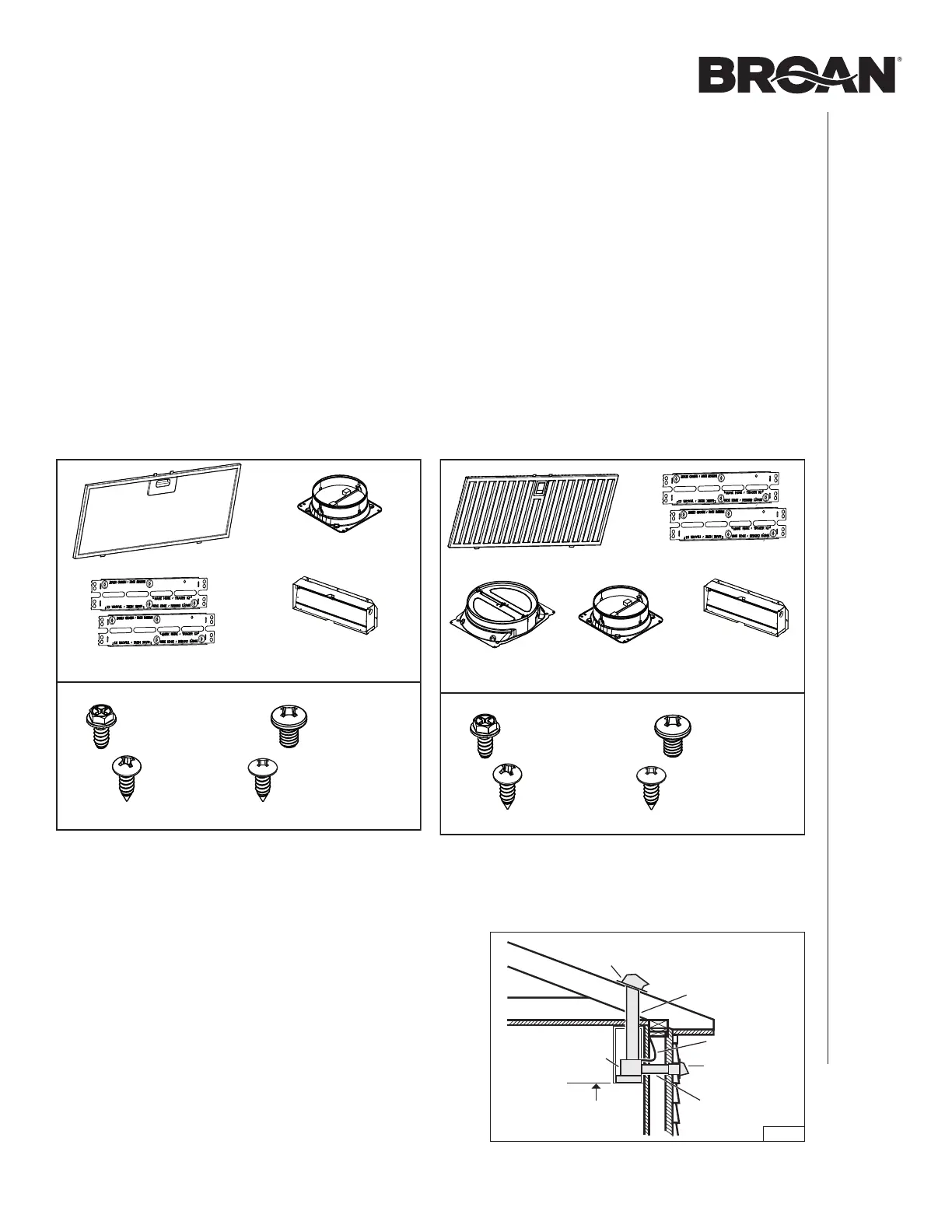

CONTENTS
Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the
manufacturer.
Make sure that the following items are included:
PM400SSV
(1) GREASE FILTER
(1) 6” ROUND
DAMPER ASSEMBLY
(ATTACHED TO ONE SIDE THE UNIT)
(1) P
ARTS BAG* CONTAINING:
(4) NO. 8-18 X 1/4”
M
ETAL SCREWS
(8) NO. 8-15 X 5/8”
P
AN HEAD
WOOD SCREWS
(4) NO. 6-18 X 5/8”
T
RUSS HEAD
WOOD SCREWS
C
ABINET BRACKETS
(ATTACHED TO THE BACK OF THE UNIT)
* FIND PA RT S BAG BEHIND THE WIRING COMPARTMENT COVER.
(1) 3¼” X 10”
DAMPER ASSEMBLY
(ATTACHED TO THE BACK OF THE UNIT)
(4) NO. 8-32 X 1/4”
M
ACHINE SCREWS
PM600SSV
(1) HYBRID BAFFLE FILTER
(1) 6” ROUND
DAMPER ASSEMBLY
(ATTACHED TO ONE SIDE THE UNIT)
(1) P
ARTS BAG* CONTAINING:
(4) NO. 8-18 X 1/4”
M
ETAL SCREWS
(8) NO. 8-15 X 5/8”
P
AN HEAD
WOOD SCREWS
(4) NO. 6-18 X 5/8”
T
RUSS HEAD
WOOD SCREWS
C
ABINET BRACKETS
(ATTACHED TO THE BACK OF THE UNIT)
* FIND PA RT S BAG BEHIND THE WIRING COMPARTMENT COVER.
(1) 3¼” X 10”
D
AMPER ASSEMBLY
(ATTACHED TO
THE
BACK OF THE UNIT)
(4) NO. 8-32 X 1/4”
M
ACHINE SCREWS
(1) 8” ROUND
DAMPER ASSEMBLY
24" MIN - 30" MAX
ABOVE
COOKING SURFACE
POWERPACK
INSERT
WALL CAP
ROOF CAP
8" ROUND DUCT
(PM600SSV ONLY),
6"
ROUND DUCT,
OR 3¼" X 10" DUCT
HOUSE WIRING
3¼" X 10" DUCT
FIG. 1
INSTALL THE DUCTWORK
(DUCTED INSTALLATION ONLY)
NOTE: To reduce the risk of fire, use only metal ductwork.
1. Decide where the ductwork will run between the hood and
the outside. (FIG. 1)
2. A straight, short duct run will allow the unit to perform most
efficiently.
3. Long duct runs, elbows, and transitions will reduce the
performance of the unit. Use as few of them as possible.
Larger ducting may be required for best performance with
longer duct runs.
4. Install wall cap or roof cap (sold separately). Connect metal
ductwork to cap and work back towards the unit location.
Use 2” metal foil duct tape to seal the joints between
ductwork sections.
