Page 4

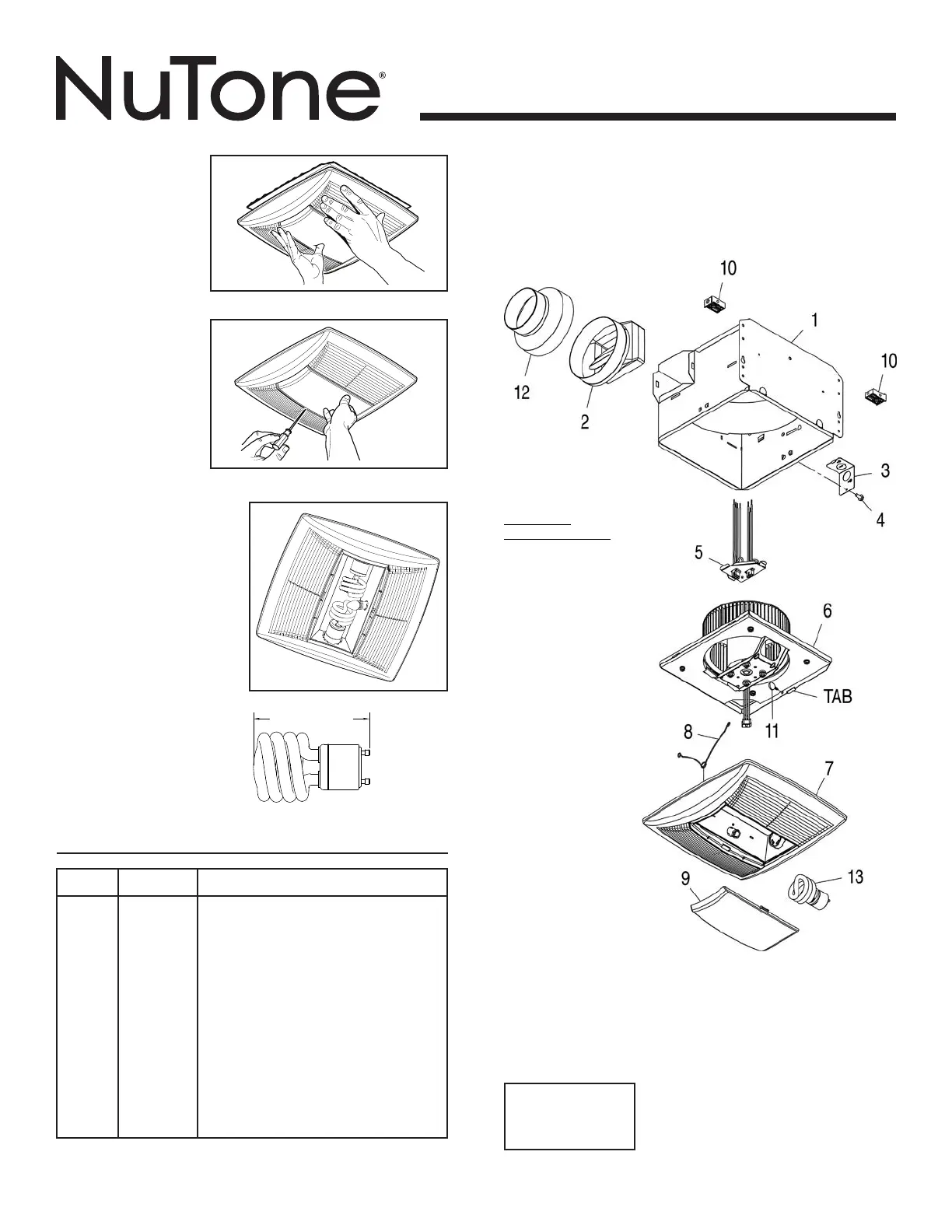

MODEL QTN130LE1
SERVICE PARTS
99045226A
Key No. Part No. Description
1 97016466 Housing
2 97018562 Duct Connector - 6”
3 98010102 Wiring Plate
4 99170245 Screw, #8-18 X .375
5 97018011 Wire Panel/Harness Assembly
6 97019537 Blower Assembly
7 97018428 Grille Assembly
(includes key nos. 8 & 9)
8 99140199 Grille Spring (2 req’d)
9 99111512 Lens
10 97018014 Spacer (2 supplied)
11 99420665 Thumbscrew, #8-18 x .375
12 475 Duct Reducer - 6” to 4”
13 99271381 Bulb, GU24, 18W Fluorescent (2 req.)
SERVICE NOTE
To remove
Blower Assembly:
Unplug motor.
Remove
thumbscrew (11)
from motor plate
flange.
Find the single
TAB on the
motor plate
(located next to
the receptacle).
Push up near
motor plate tab
while pushing
out on side
of housing.
Or insert a
straight-blade
screwdriver into
slot in housing
(next to tab) and
twist screwdriver.
Order service parts by “Part No.” - not by “Key No.”
9. Remove
light lens.
Carefully insert a
small flat-blade
screwdriver
between grille
and lens. Pry
lens out.
8. Push grille
against
ceiling.
10. Install light
bulbs.
Product includes (2)
18W (max.), type GU24
fluorescent lamps with
M.O.L. (maximum
overall length) of 3.9”
(100mm) as illustrated
below.
Purchase a 4W (max.),
type C7 incandescent
night light bulb.
Insert lamps and bulb
into their sockets.
Replace lens.
Replacement parts can
be ordered on our web-
site. Please visit us at
www.nutone.com
3.9" (100mm) M.O.L.
