NuTone SPK80L User Manual

INSTALL THE HOUSING
- PLEASE NOTE -
THE FOLLOWING INSTALLATION ILLUSTRATIONS SHOW 2
X 6 JOISTS. IF YOU HAVE A TRUSS OR “I”-JOIST INSTALLATION, MOUNT THE VENTI-
LATOR TO THE ADDITIONAL FRAMING IN THE SAME MANNER. (Additional framing must be a 2x6 (minimum height).
Cooking
Equipment
Floor
COOKING AREA
Do not install above or
inside this area.
45
o
45
o
NOT FOR USE IN
A COOKING AREA.
SUSPENDED CEILING MATERIAL
HOUSING
POWER CABLE
GRILL
4" ROUND DUCT
MOUNTING TABS
SUSPENDED CEILINGS
Housing hung with wires - 3-point mount.
"I" JOIST
ADDITIONAL FRAMING*
POWER CABLE
MOUNTING TABS
HOUSING
GRILL
CEILING MATERIAL
4" ROUND DUCT
HOUSING MOUNTED TO “I” JOIST
*Requires additional framing for mounting tabs. Discharge 90
0
to joists.
4" ROUND DUCT
MOUNTING TABS
CEILING MATERIAL
POWER CABLE
HOUSING
ADDITIONAL FRAMING*
GRILL
2 x 4 CEILING JOIST or TRUSS
HOUSING MOUNTED TO 2x4 TRUSS
*Requires additional framing for mounting tabs. Discharge 90
0
to joists.

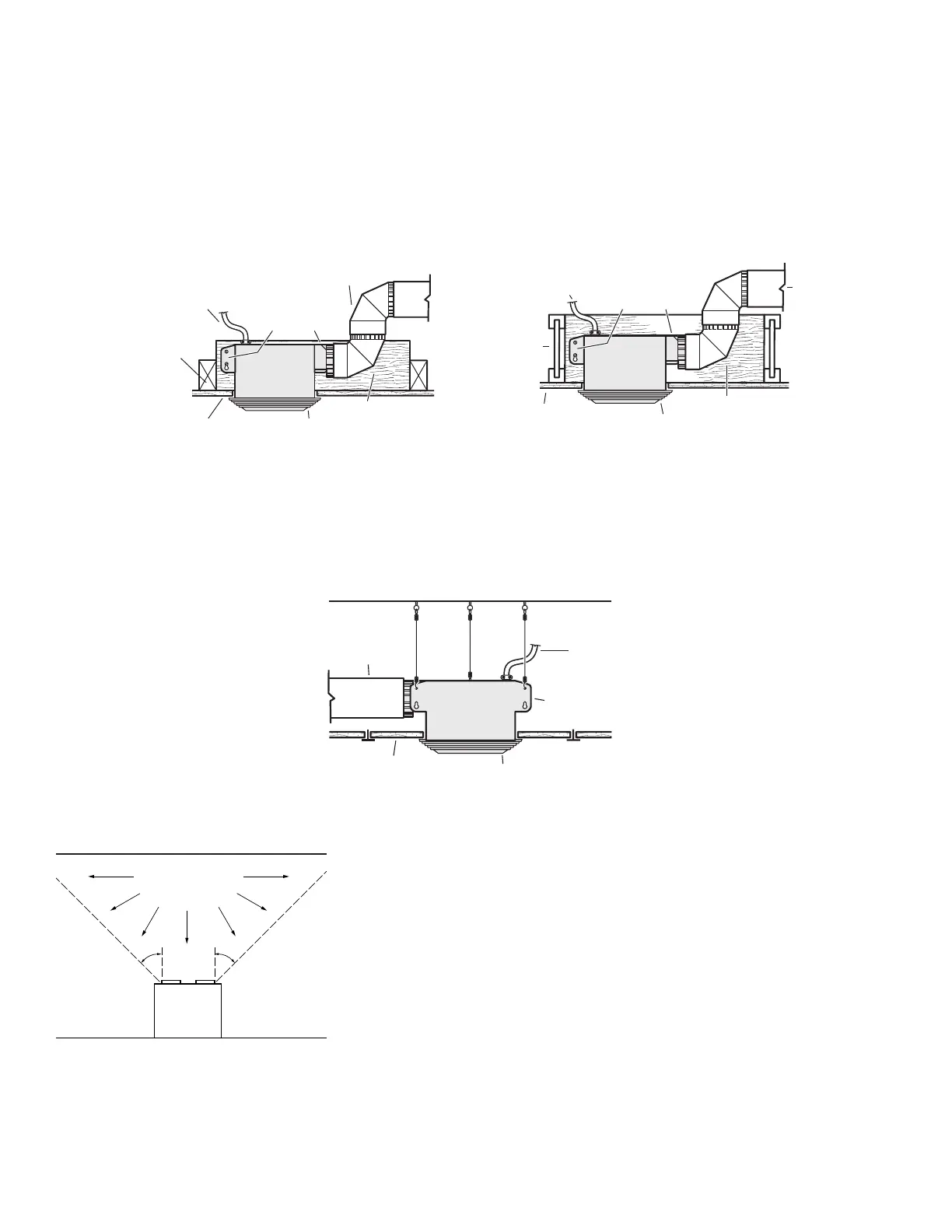

TYPICAL INSTALLATIONS
All additional framings must be 2x6 minimum
