8

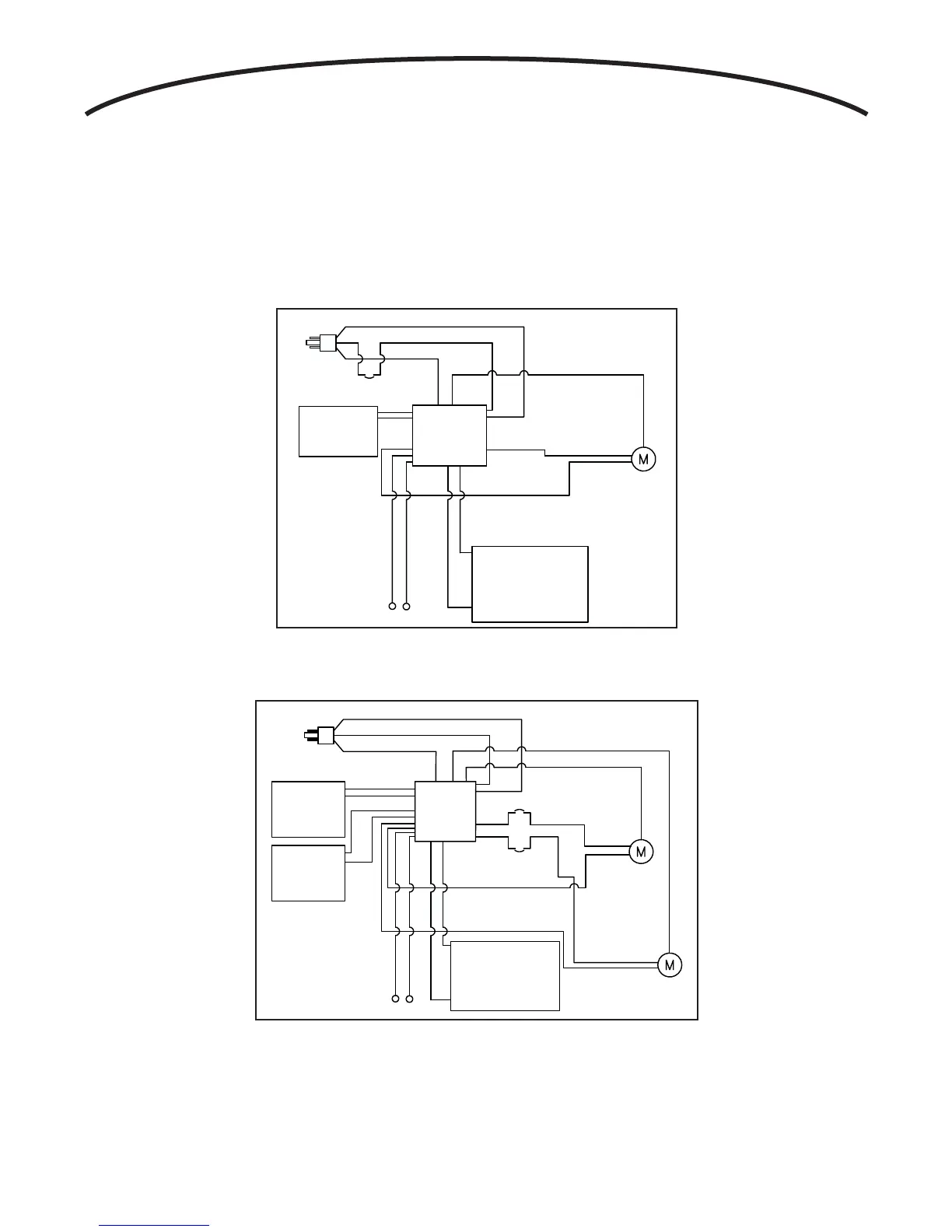

DIAGRAMAS
DE CABLES INTERNOS
• VX475 • VX475C • VX550 • VX550C
AE0025E
BLANCO
BLANCO
NEGRO
NEGRO
NEGRO
NEGRO
VERDE
VERDE
120 VOLTIOS
MOTOR
CONTROL
AMARILLO
AMARILLO
PRESOSTATO
UNIDAD DE PODER
VX550
SÓLO CON BOLSA
PROTECCIÓN
TÉRMICA
PLACA DE
CONTROL
AZUL
AZUL
AE0026E
ROJO O BLANCO
ROJO O BLANCO
ROJO O BLANCO
NEGRO
NEGRO
NEGRO
NEGRO
AZUL
NEGRO
NEGRO
VERDE
VERDE
VERDE
VERDE
AMARILLO
AMARILLO
MOTOR
MOTOR
CONTROL
PLACA DE
CONTROL
PROTECCIÓN
TÉRMICA
240 VOLTIOS
PRESOSTATO
UNIDAD DE
PODER VX1000
SÓLO CON BOLSA
AZUL
AZUL
AZUL
PROTECCIÓN
TÉRMICA
• VX1000 • VX1000C
