WIRING

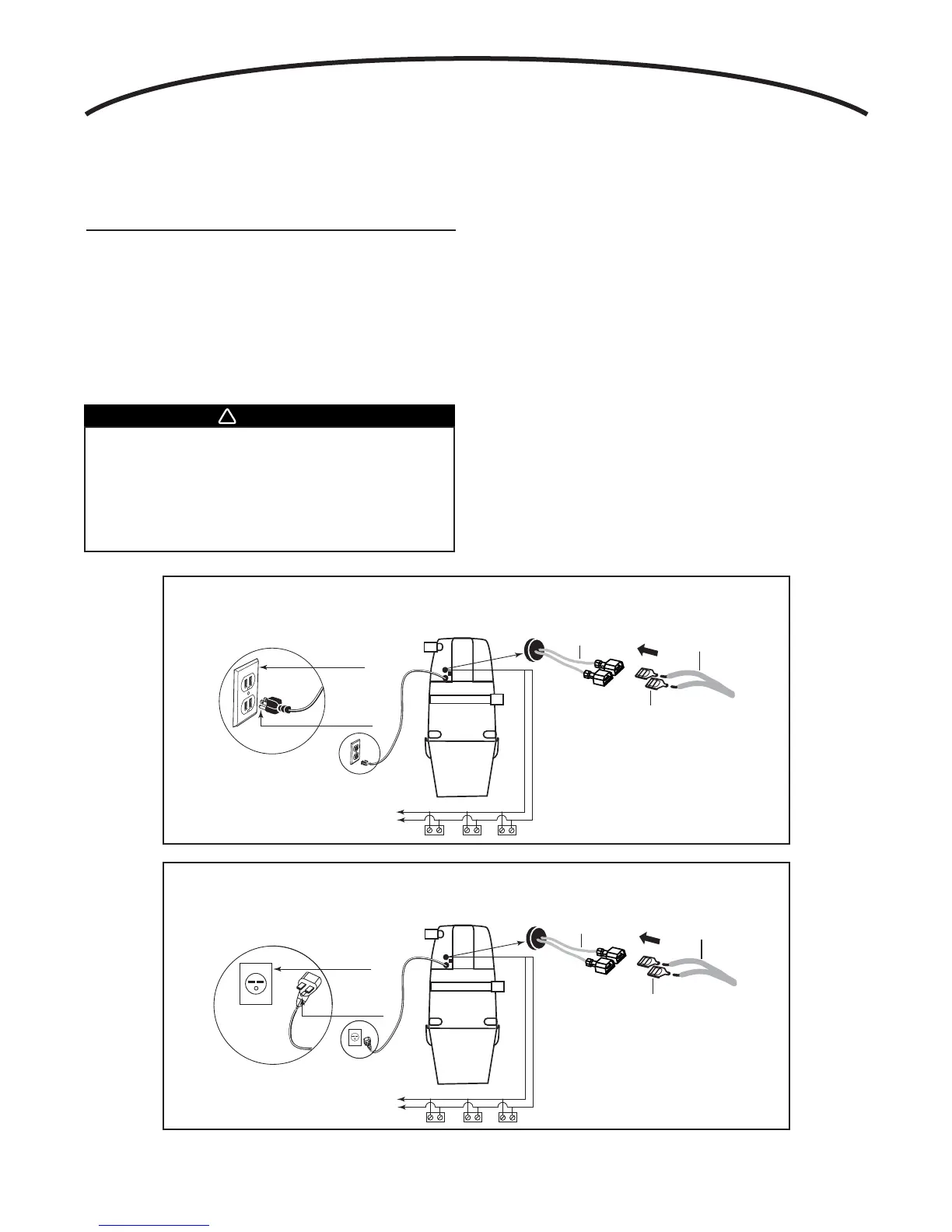

This section refers to Figures 17 and 18.
This appliance must be grounded. If it should malfunction or
break down, grounding provides a path of least resistance
for electric current, to reduce the risk of electric shock. This
appliance is equipped with a cord having an equipment-grounding
conductor and grounding plug. The plug must be plugged
into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
This appliance is for use on a standard 120 V a.c., dedicated
20-amp branch circuit with a NEMA 5-20R receptacle for
VX475 and VX550 models. For VX1000 models a nominal
240 V a.c., dedicated 20-amp branch circuit with NEMA 6-20R
receptacle is required. Make sure that the appliance is
connected to an outlet and has a grounding attachment plug
that looks like the plug shown in either Figure 17 or 18,
depending on model.
No adapter should be used with this appliance.
FIGURE 18
GROUNDING INSTRUCTIONS
WARNING
Improper connection of the equipment-grounding
conductor can result in a risk of electric shock. Check
with a qualified electrician or service person if you are
in doubt as to whether the outlet is properly grounded.
Do not modify the plug provided with the appliance—if
it will not fit the outlet, have a proper outlet installed by
a qualified electrician.
