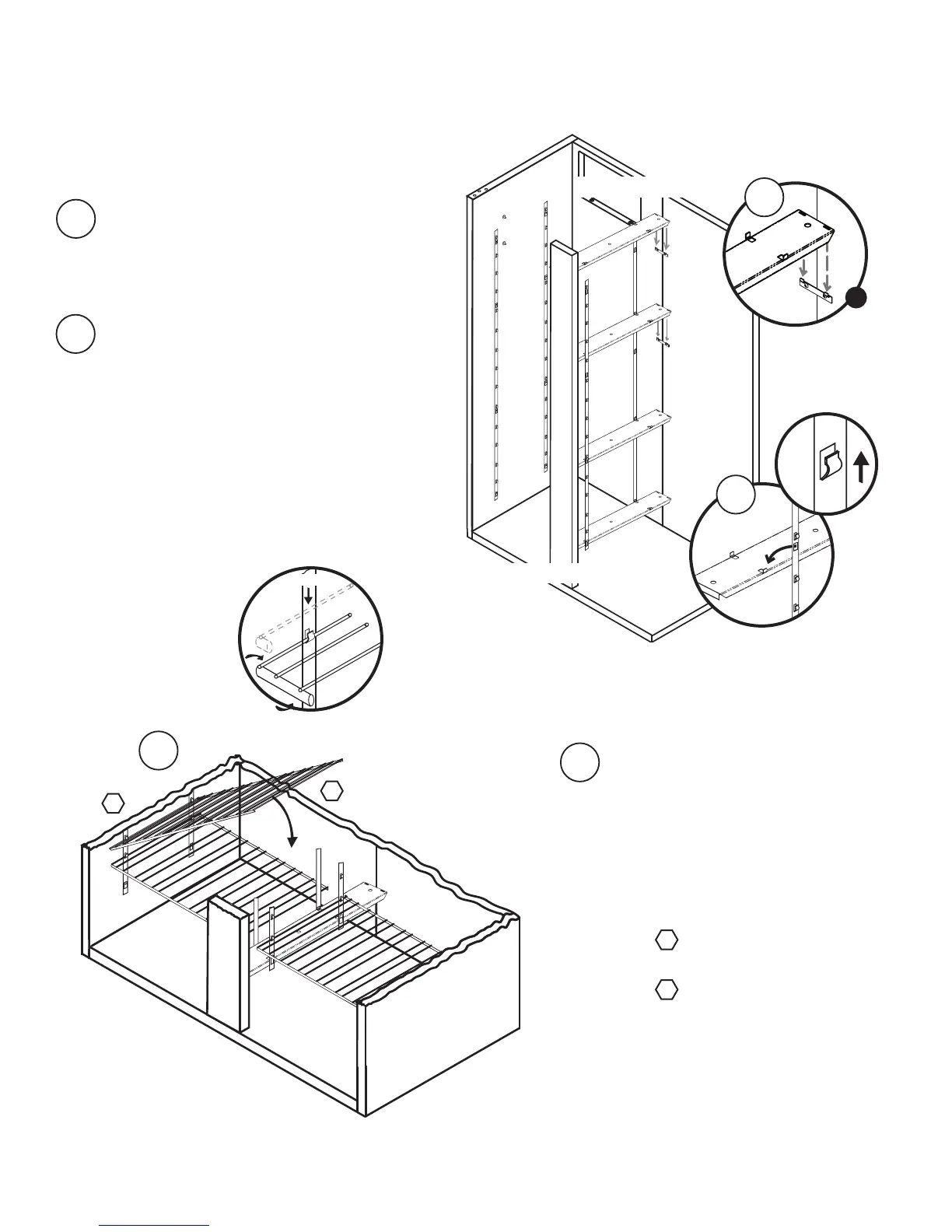

STEP 4 : SHELVES
Open box VP4S or VP4D
Hook SHELVES into hangers start-
ing from the bottom of cabinet, (12
shelves on cooling unit side, 14 on
the other) alternating the two sides
HINT :
CENTER SHELVES ON HANGERS
1
2
Snap SHELVES into
hangers on one side
Push the SHELVES
down to snap into op-
posite side hangers
3
3
1
2
PRESS
BOTTOM
TOP
1
2
Install COUPLER SHELVES between
the VERTICAL COUPLER and the
BACK PANEL, hook them on the
COUPLER HANGERS (G)
Install 4 HANGERS STRIPS, hook-
ing them to the COUPLER SHELVES
through square holes. (Watch for
orientation, all hooks have to point
upwards).
NOTE : Assure that each of them is
hooked to all 4 shelves
1
2
COUPLER SHELVES
VERTICAL COUPLER
G
To Next Page
