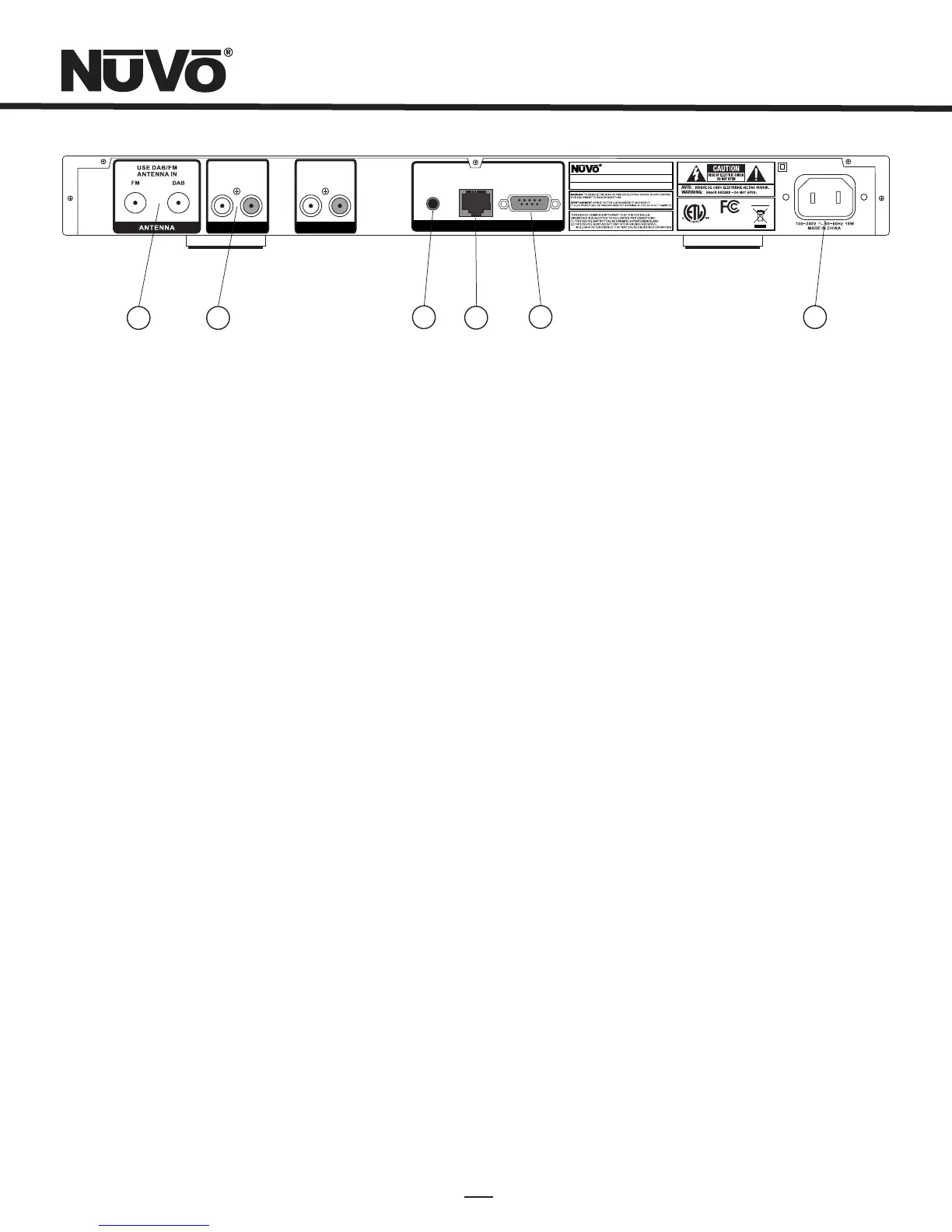

Nuvo NV-T2DAB - Back Panel

072 8
3033118
R
T
E
E
T
K
N
I
CM
Model NV-T2DAB
Dual SIRIUS Ready AM/FM Tuner
www.nuvotech nologies.com
NuVo Technologies LLC Hebron, KY USA •
CON FORMS TO U L
STD .6006 5 CERTI FIED
TO CA N/CSA ST D.
C22 .2 No.6 0065: 06
RS 232
SYSTEM
NuVoNet
IR INPUT
L
AUDIO
R
TUNER A
L
AUDIO
R
TUNER B
RoHS
1
3
4
5
6
2
Back Panel Features
1. Antenna Input: These “F” connectors are the coaxial cable connections for FM and DAB signal reception.
2. Audio Output: The audio broadcast for AM and FM received by the Tuner module is available through this stereo RCA output.
Tuner A and B offer independent audio outputs for use with the NuVo audio systems or third
party receivers and amplifiers.
3. IR Input: The T2DAB offers a single stereo mini, 3.5mm, connection for independent IR control of both tuners A and B.
4. NuVoNet: This single CAT5 connection provides full NuVoNet communication for both tuners A and B to the NuVo Grand Concerto
and Essentia E6G audio distribution systems. This connection is made at the Grand Concerto EZ Port or the Essentia
E6G Allport.
5. RS232: This DB9 9-pin connector is used for configuration programming (see section IV. Using the Tuner Configurator Software,
pg. 15) and bidirectional serial control from a third party home automation controller.
6. AC Power: The T2DAB is designed to plug into any AC power source. The digital switching power supply allows the tuner to
respond to any world wide voltage.
5
