NVE MEC 5000 - Parts Diagram

MEC 5000, 6500 & 8000/P | 35www.natvac.com | 800.253.5500

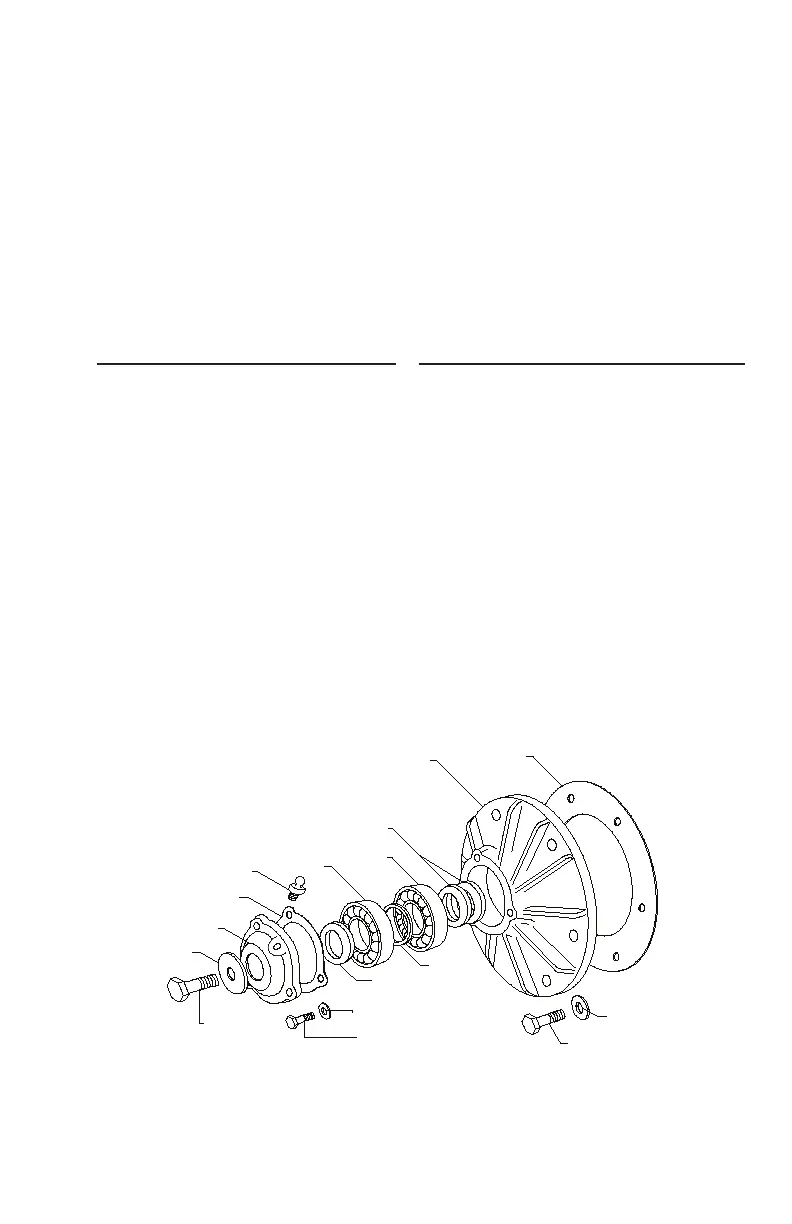

Parts Diagram
MEC 5000/P
MEC 6500/P
MEC 8000/P
Parts list continued from previous page.
A M 54
A M 49
A M 55
A M 48
A M 18
A M 3 /P
AM 4
A M 50
A M 51
A M 56
A M 35
A M 13
A M 53
A M 58
A M 16
A M 17
Part # Description
AM36 Exhaust Pipe
AM39 Gasket
AM40 Seal (30-40-7)
AM41 Non-Return Ball
AM45 Spring
AM48 Bearing (6208)
AM49 Fitting
AM50 Washer
AM51 Bolt
AM52 Key
AM53 Seal (35-52-10)
AM54 Bearing Cover
AM55 Bearing (6207)
Part # Description
AM56 Bolt (m8x50)
AM57 Spacer (80-70-5)
AM59 Oil Plug
AM60 Handle
AM62 4-way Valve Plug
AM63 Flange
AM64 O-Ring
AM65 4-way Valve Cover
AM66 Bolt (m10x40)
AM67 4-wayValveHousing
AM68 4-way Valve Cover Gasket
AM83 3”HoseConnection
