28 | MEC 5000, 6500 & 8000/P
www.natvac.com | 800.253.5500

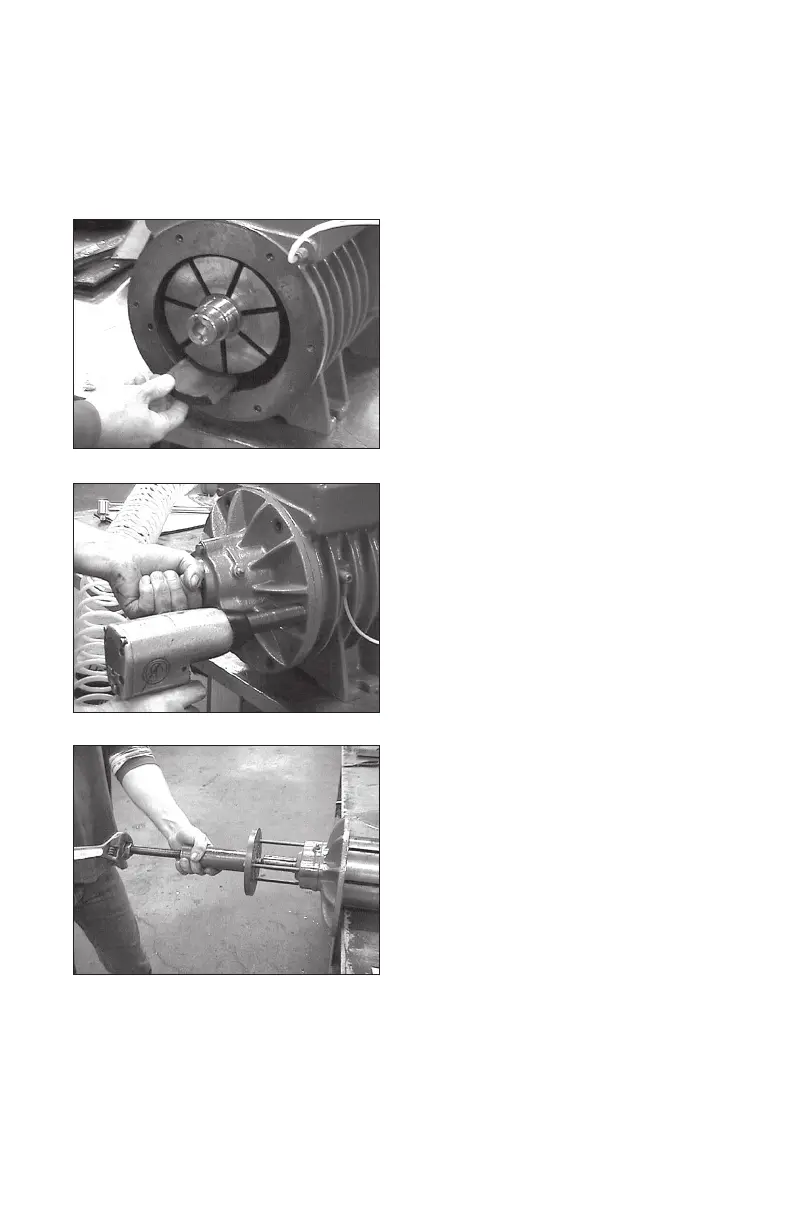

Complete rebuild
1. Follow steps 1-7 in the vane replacement
instructions.
2. Place a cushion under the rotor
to prevent damage when the
front endplate is unbolted.
3. Remove the six bolts attaching the
endplate to the housing.
Support the rotor shaft prior to
loosening the last bolt.
Slide the rotor out
4. Remove the front endplate,
front bearing and bearing cover
from the rotor with a puller or
hydraulic press.
Put an identifying mark on the
endplate so as to not confuse it
with the rear.
