Nvidia GeForce 256 User Manual

MS-8809 nVIDIA GeForce 256
Graphics Accelerator
User’s Guide
1-5

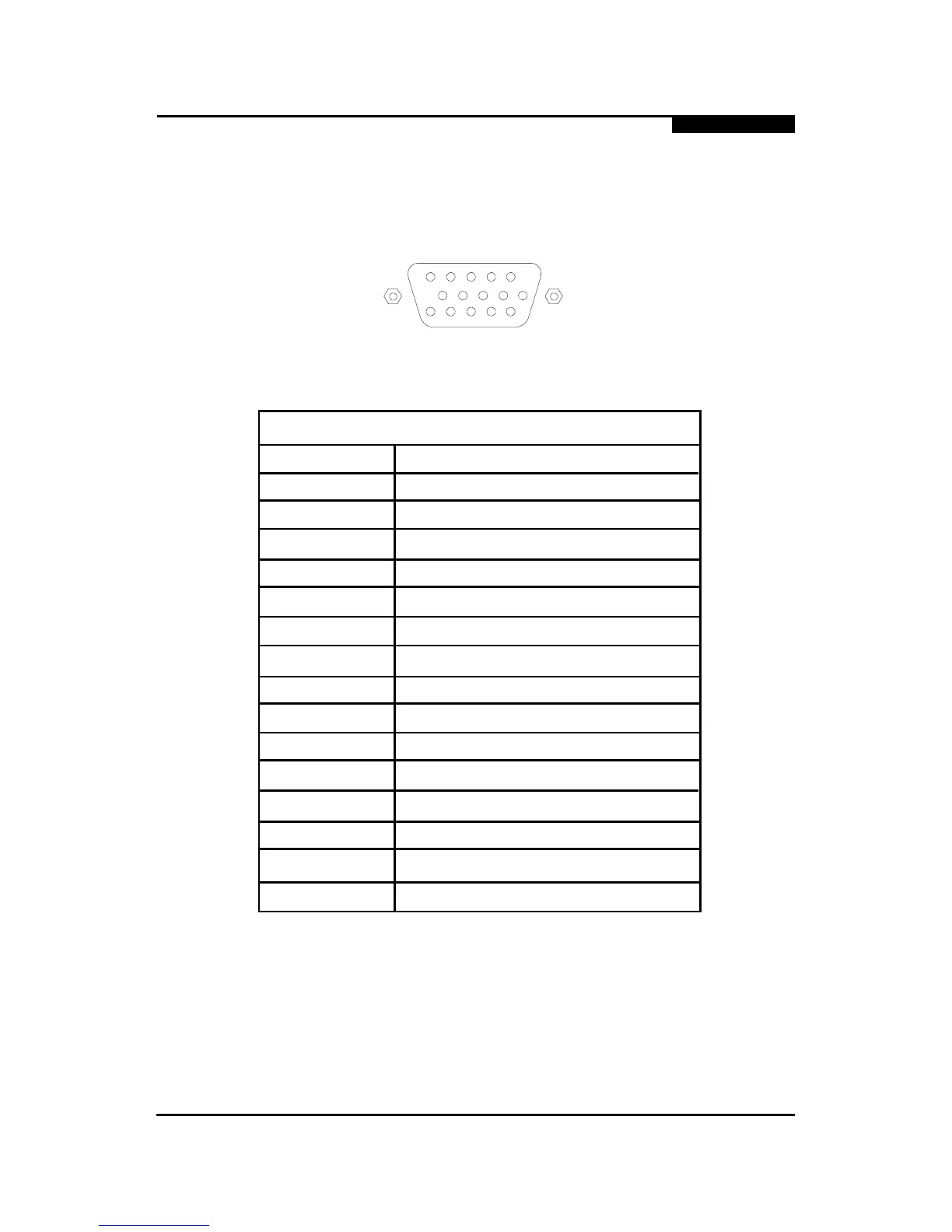

6. DB 15 Pin Connector
Analog Video Display Connector(DB15-S)
Pin Signal Description
1 Red
2 Green
3 Blue
4 Not used
5 Ground
6 Ground
7 Ground
8 Ground
9 Not used
10 Ground
11 Not used
12 SDA
13 Horizontal Sync
14 Vertical Sync
15 SCL
1
5
6
10
11
15

Nvidia GeForce 256 Specifications

General

Core Clock	120 MHz
Memory Size	32 MB
Memory Type	SDR
Memory Clock	166 MHz
Memory Bus	128-bit
DirectX Support	7.0
Transistors	23 million
GPU	NV10
RAMDAC	350 MHz
OpenGL Support	1.2
Bus Interface	AGP 4x
Manufacturing Process	220 nm
Memory Bandwidth	2.656 GB/s
Pixel Fillrate	480 MPixel/s
Texture Fillrate	480 MTexel/s
