Back Panel Connectors

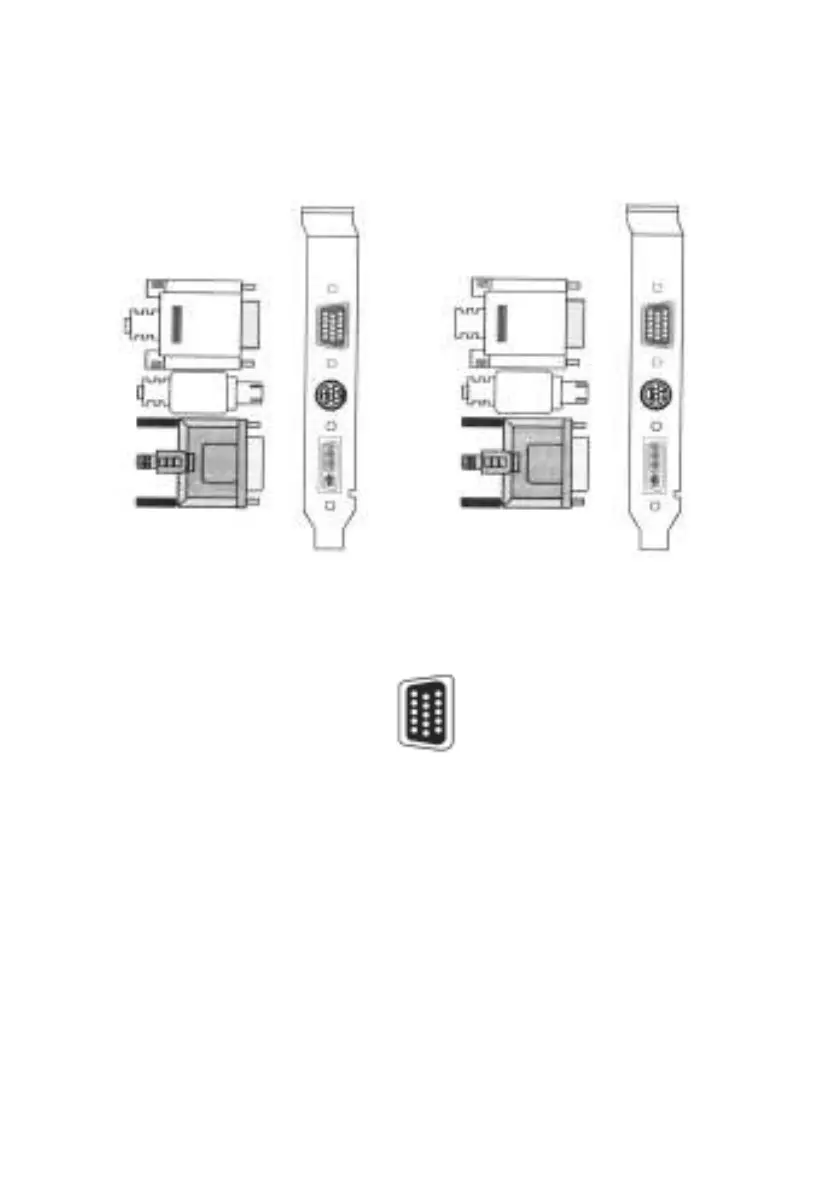

This section describes the back panel on your graphics card. Note that your
card may vary slightly from the diagram below depending on the model.
VGA Output Connector
This connector is a standard DB 15-pin, VGA (Virtual Graphics Array) connec-
tor used to attach directly to a VGA compatible CRT or LCD monitor. Simply
attach your monitor cable to the VGA output connector on the card, making
sure that it is secure before applying power. Refer to your monitor manual for
further information on how to adjust your picture within the display.
