You can use the S-Video connector to send and receive video signals to and
from video devices that use standard AV cables such as video cam recorders or
DVD players. However, you must use the VIVO adapter which is supplied in the
box when your card supports video input / video output functionality.
At one end of this adapter is the S-Video connector that you attach to the card.
The other end will have up to 4 connectors which may include one or all of the
following connectors: S-Video-In, S-Video-Out, Video-In (AV) and Video-Out (AV).
Attach AV video devices to either the video-in connector or video-out connector
depending on your needs.
Note: In order to use the Video-In functionality, you must have installed the
WDM drivers (for VIVO use) from the Setup CD-ROM (see software installation
section). Then you need to install a video editing program which supports WDM,
to display video data received on your Video-In port. If you are only using Video
out functionality, you do not need to install the drivers. Also note that you must
use the audio connectors on the mainboard to transmit audio signals.

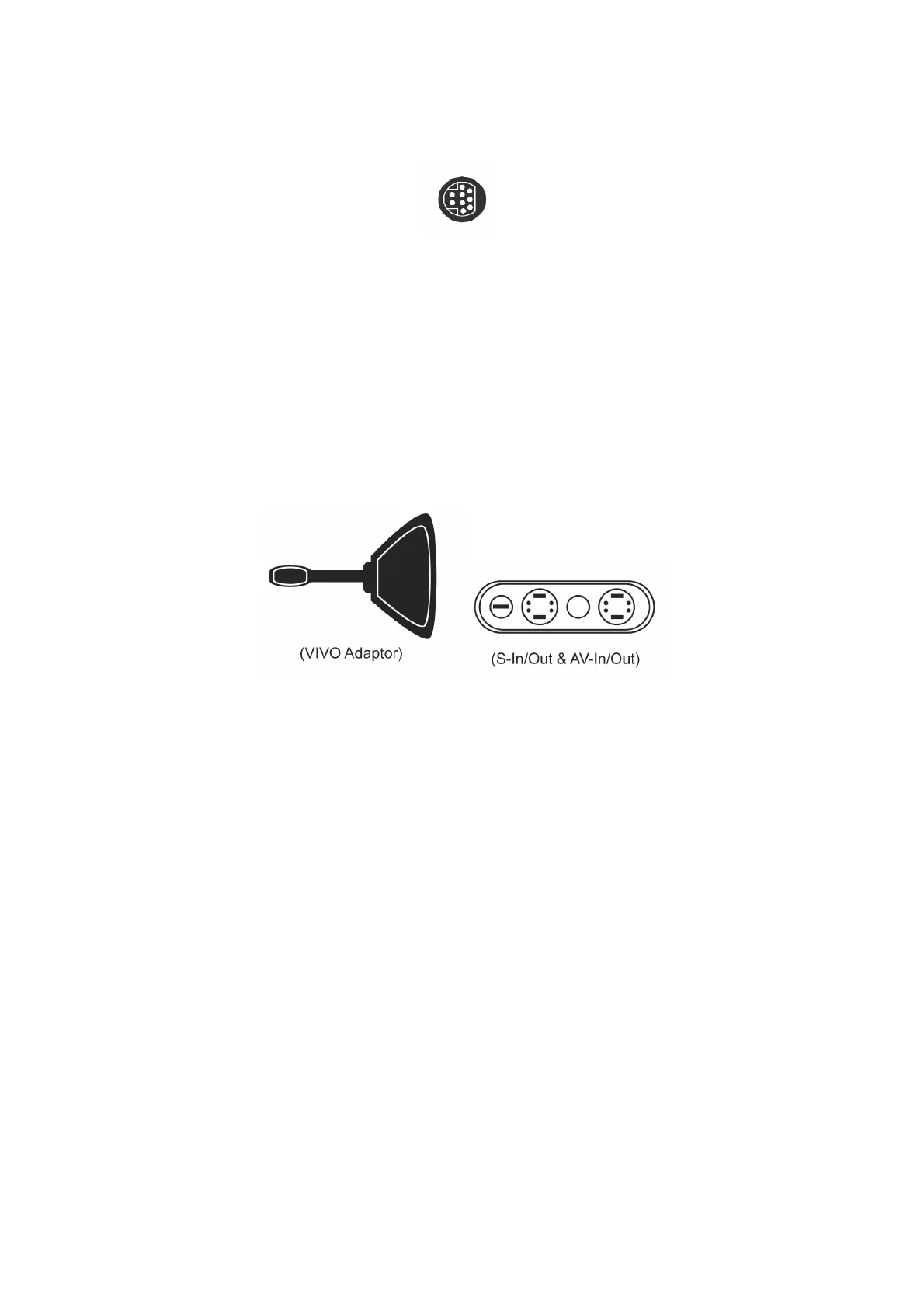

S-Video Output Connector
