Nvidia Quadro 4000 User Manual

- 10 -
▪ If you elect to use a resolution on your flat panel display other than the display’s native resolution, this
setting allows you specify the scaling used in order to achieve the highest possible display quality, but
please note that flat panel displays always look best when run at native resolution.

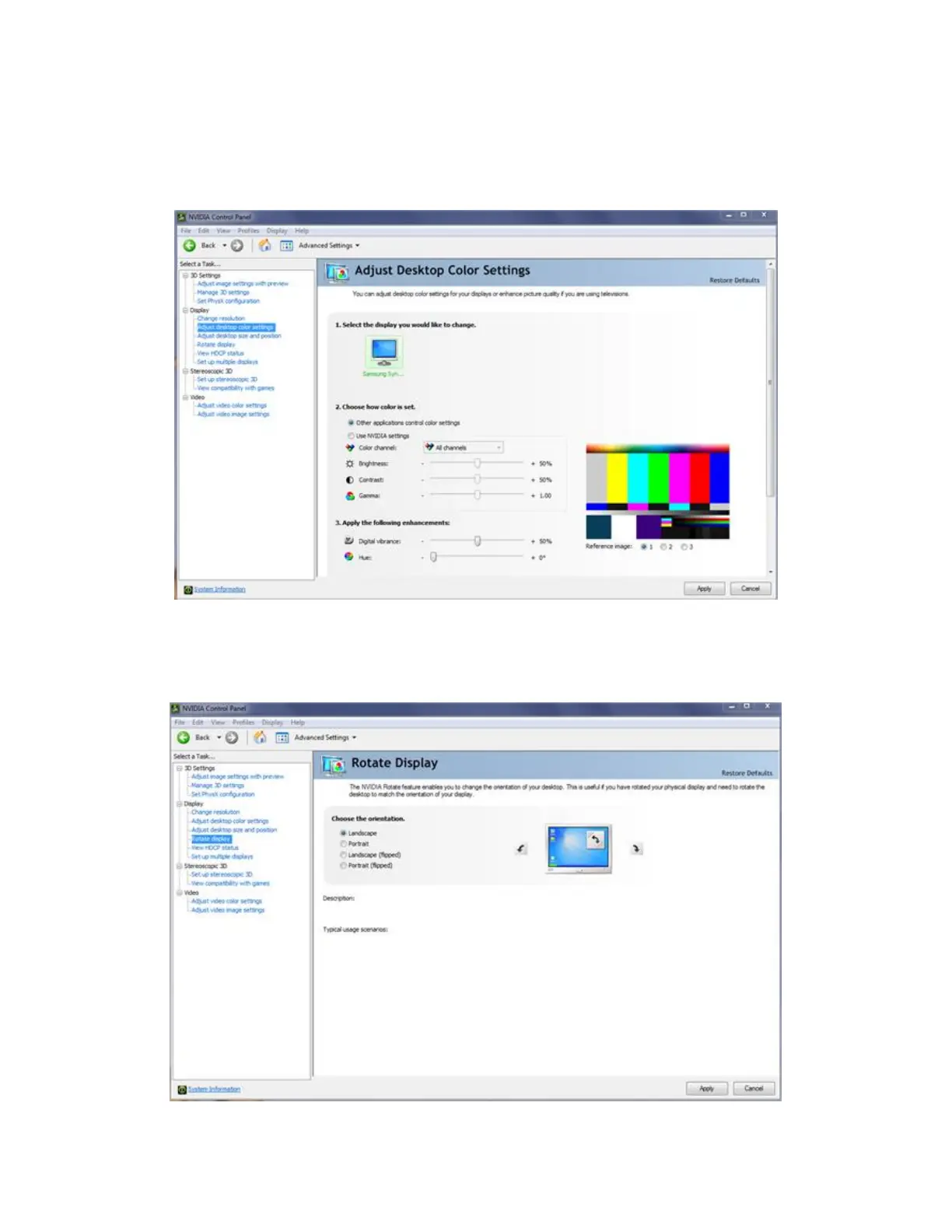

Figure 5 – Adjust Desktop Color Settings
▪ Allows you to adjust the color settings for your desktop. These changes will not affect any video
playback. To change video color settings, go to ‘Adjust Video Color Settings’.
Figure 6 – Rotate Display

Nvidia Quadro 4000 Specifications

General

GPU Architecture	Fermi
CUDA Cores	256
Memory Size	2 GB
Memory Type	GDDR5
Memory Interface	256-bit
Memory Bandwidth	89.6 GB/s
Max Power Consumption	142 W
Outputs	DisplayPort, DVI-I
Shader Model	5.0
OpenGL	4.1
DirectX	11
GPU	GF100
Base Clock	475 MHz
Shader Clock	950 MHz
Bus Interface	PCIe 2.0 x16
Max Resolution	2560x1600
OpenGL Support	Yes
Thermal Solution	Active
