HARDWARE INSTALLATIONS
5 Reinstall the computer cover and any cables that were
removed earlier.
Note: If you are using one 8-pin power connector, you must
ensure that the power supply can drive enough power
through the 8-pins to the power connector. (up to 150W
through a single 8-pin connector)

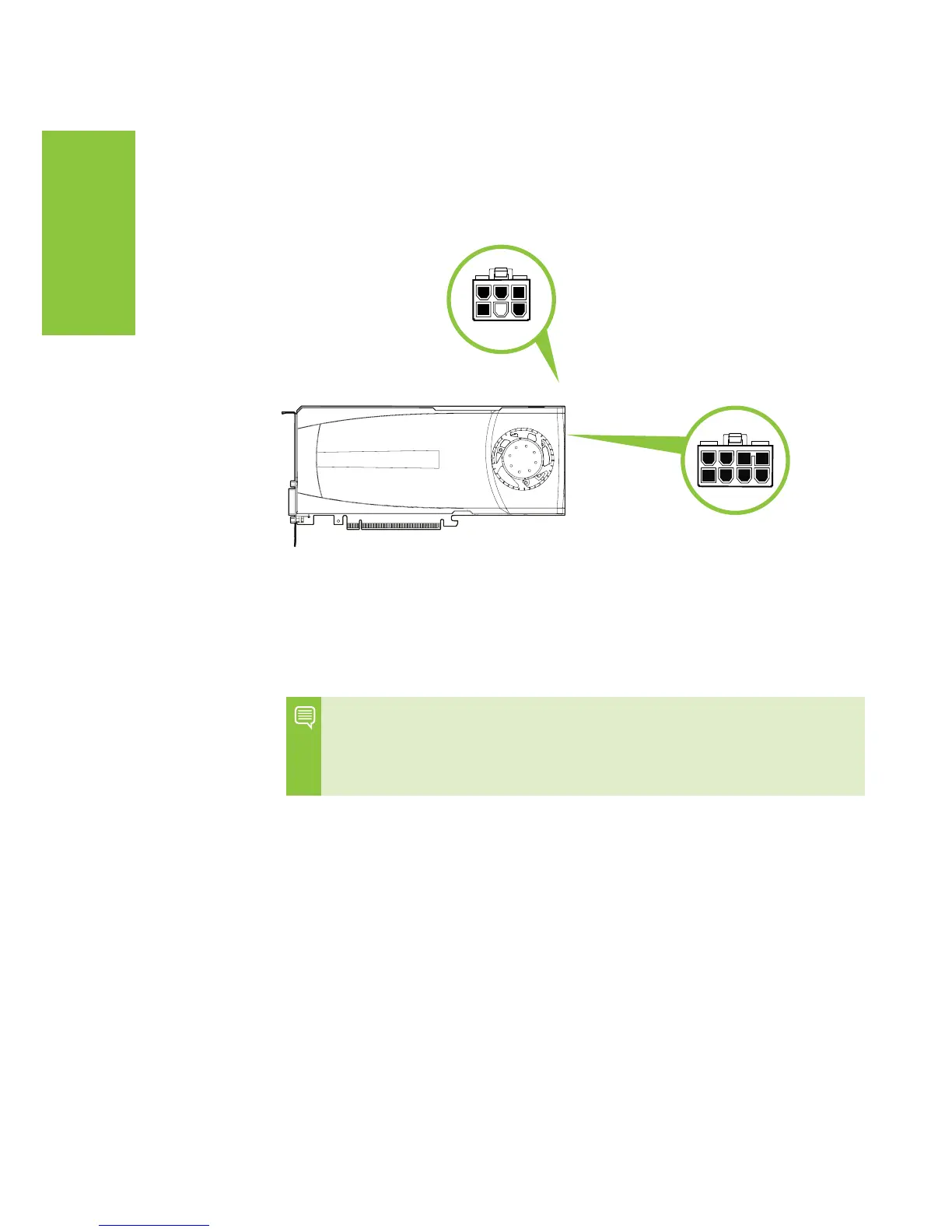

6-pin power connectors
Connect one (1) 6-pin PCI Express
power connector on the edge of the
board
8-pin power connector
Connect one (1) 8-pin OR
one (1) 6-pin PCI Express
power connector on the
edge of the board
