NVX MVPA1 User Manual

Visit: nvx.com | Call: 213.444.1689 | 15303 Ventura Blvd. 9th Floor, Sherman Oaks, CA 91403
4
AMPLIFIERS
INSTALLATION CONTINUED
POWER: Connect a wire directly to the vehicle’s positive battery
terminal, installing an appropriate fuse holder within 18 inches of the
battery. Route the wire to the amplier’s location, connecting it to
the amplier’s positive terminal (+12V). Be sure to use appropriate
grommets whenever routing the wires through the rewall or other sheet
metal. After routing and connecting this wire, you may install the fuse
into the fuse holder near the battery.
REMOTE: Connect the amplier’s remote (Rem) terminal to either the
source unit’s remote turn-on lead, or an alternate switched 12V+ source
using a minimum of 18 gauge wire.
STEP 3: SIGNAL CONNECTIONS
The MVP ampliers have been designed to accept both low-level “RCA”
inputs, as well as high-level speaker inputs through the included four/
eight-pin plug.
LOW-LEVEL RCA INPUTS: To use the low-level RCA inputs, connect
a high-quality RCA cable from the preamp outputs of the source unit to
the RCA inputs on the amplier. For the clearest signal, we recommend
using an NVX shielded “noise-rejecting” twisted RCA cable.
HIGH-LEVEL SPEAKER INPUTS: To use the high-level speaker
inputs, connect each of the wires coming from the included connector
to the corresponding speaker output wires from the factory source unit.
Take care to match the polarity and channel of each wire. Once the
speaker wires have been spliced, plug the connector into the amplier.
STEP 4: SUBWOOFER & SPEAKER CONNECTIONS
Once you’ve made the power, ground, remote, and signal connection
for the amplier, you are ready to connect the speakers or subwoofer(s).
Simply connect the speaker wire to the terminals of the corresponding
speaker or subwoofer. For the best results, we recommend using NVX
speaker wire with a minimum size of 16 gauge.

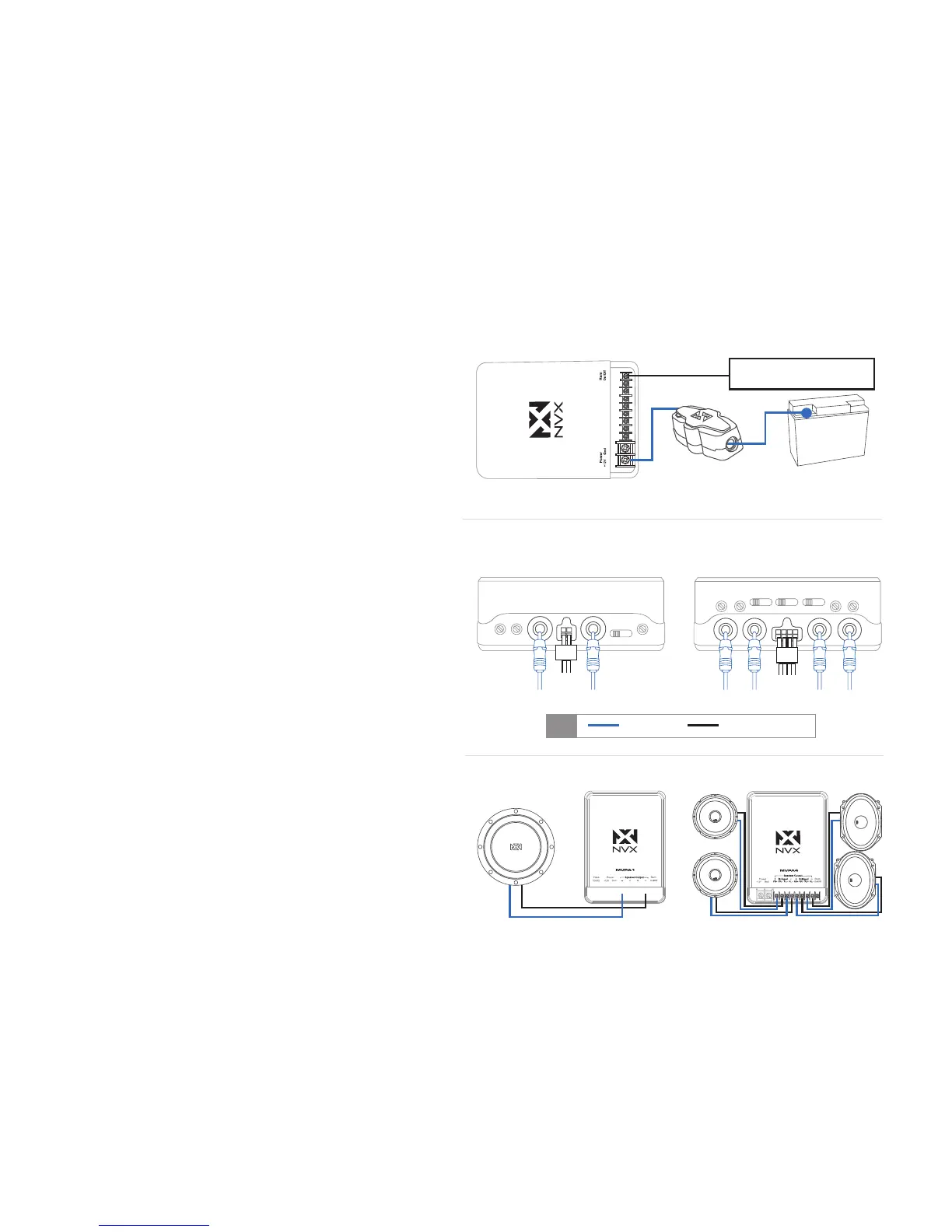

Fuse Holder
MVPA1 Signal Connection
MVPA1 Subwoofer Wiring Diagram MVPA4 Speaker Wiring Diagram
MVPA4 Signal Connection
Choose either RCA or 4-pin speaker plug
RCA Inputs High-Level Inputs
KEY
Choose either RCA or 8-pin speaker plug
L
RL
R
RR FL
FrontRear4 Pin Plug
Subwoofer
Front Speakers
R L
L R
Rear Speakers
8 Pin Plug
FL
Source Unit’s Remote
Turn On
Battery Positive
Terminal
+12V

NVX MVPA1 Specifications

General

Brand	NVX
Model	MVPA1
Category	Amplifier
Language	English
