5

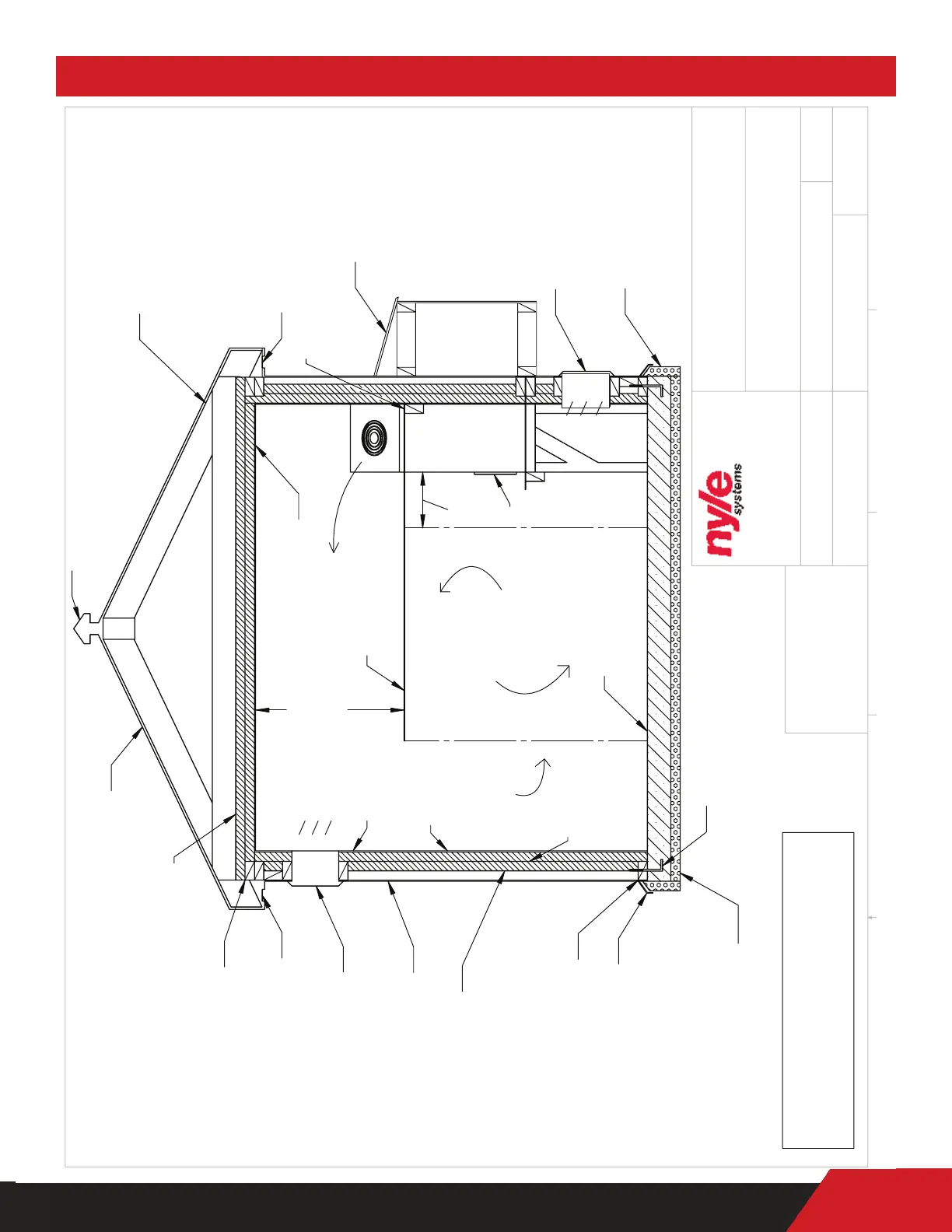

Chamber Plans
12"
MIN.
18" MINIMUM
MAX. BY CUSTOMER
FOR ADEQUATE
WORKING ROOM
RIDGE VENT
2" x 6"
SCREENED VENTSCREENED VENT
DOUBLE 2"x4"
TOP PLATE
EXHAUST VENT BY
NYLE (10"x10" R.O.)
INTAKE VENT BY
NYLE (10"x10" R.O.)
PROVIDE AIR SPACE
BETWEEN INSULATION
AND ROOF
1/2" CDX PLYWOOD
BE SURE OUTSIDE WALL
IS WELL VENTILATED
ANCHOR BOLTS
4'-0" O.C. TYP
LUMBER
PACKAGE
4" CONCRETE PAD
REINFORCED AS
NECESSARY
2 LAYERS OF
2" "CELOTEX" FOIL FACED
POLYISOCYANURATE OR EQUIVALENT
(3 LAYERS OPTIONAL) AT LEAST R30
CDX PLYWOOD
OVER 6 MIL POLY
CDX PLYWOOD
OVER 6 MIL POLY
VAPOR BARRIER
2" BLUE STYROFOAM
W/ 1 LAYER 6 MIL POLY
BETWEEN CONCRETE PAD
AND INSULATION
2" "CELOTEX"
COAT WALLS
AND CEILING
W/ FIBERED
ALUMINUM
ROOF COATING
LAYER OF PLYWOOD TO
PROTECT TOP OF LUMBER
AND SEPARATE AIRFLOW
2" BLUE STYROFOAM
AROUND PERIMETER
AIR
INTAKE
2" "CELOTEX" FOIL
FACED PLOYISOCIANURATE
INSULATED BOARD
AIR FLOW
CDX PLYWOOD
SHEATHING W/
ASPHALT SHINGLES
FLASHING
TREATED SILL
WEATHERPROOF
ENCLOSURE TO
HOUSE CONTROLLER
2"x4" LEDGE TO
CARRY EDGE OF
PLYWOOD ALONG
WALL
2" x 6"
2" x 6"
DEHUMID-
IFIER
*FIBERGLASS INSULATION MAY BE USED
BUT WALL INSULATION MUST HAVE AT LEAST
1-1/2" CLOSED CELL INSULATION AS INSIDE
SHEATHING. THE MINIMUM R-FACTOR SHOULD
BE AT LEAST R-30.
AIR FLOW
SHEET
SCALE
TITLE
CHECKED
DRAWN
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN
THISDRAWING IS THE SOLE PROPERTY OF
NYLE SYSTEMS. ANY REPRODUCTION IN
PART OR AS A WHOLEWITHOUT THE
WRITTEN PERMISSION OF NYLE SYSTEMS IS
PROHIBITED.
5
4
3
2
1
DWG FILE NAME
CUSTOMER
12 Stevens Road
Brewer, Maine 04412
Tel: 1-207-989-4335 Fax: 1-207-989-1101
Email: info@nyle.com
1-800-777-6953
REV
1
L53 KILN CHAMBER
SECTION B
REFERENCE
2/11/2013
INTAKE
EXHAUST
