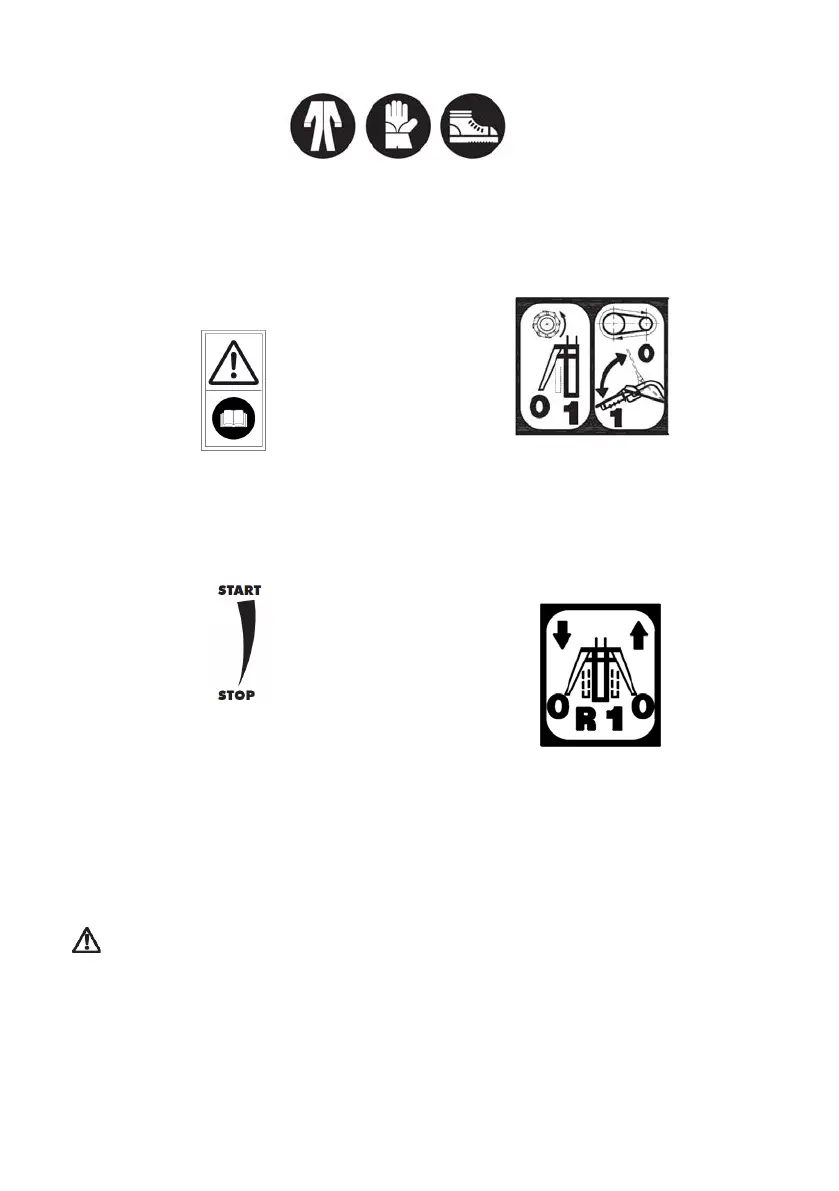

III. Definition of pictograms
DANGER!
Keep all labels clean and in good condition, replace them if damaged.
CAUTION - read the manual.
Accelerator command. In the START position,
the air is open; while, in the STOP position, the
motor is off.
LEFT - the lever under the handlebar activates
the forward movement of the wheels.
RIGHT - the lever moved upward activates the
equipment.
(IF AVAILABLE)
LEFT - the lever on the right of the handlebar
activates the wheels backward movement.
RIGHT - the lever on the left of the handlebar
activates the wheels forward movement.
