O.S. engine MAX-25FX - Engine Drawings and Specifications; Three View Drawing MAX-25 FX; Specifications MAX-32 SX

MAX
-
25FX
MAX
-
32SX
4-ø3.3
15
38
35
16
19
1/4-28UNF
24
53
22.6
24.8
22.3
30.5
30
46
15.5
60
30.6
45
UNF1/4-28
22
53
22.7
24.8
22
30.5
15.3
57.2
35
16 19
38
15 4-ø3.3

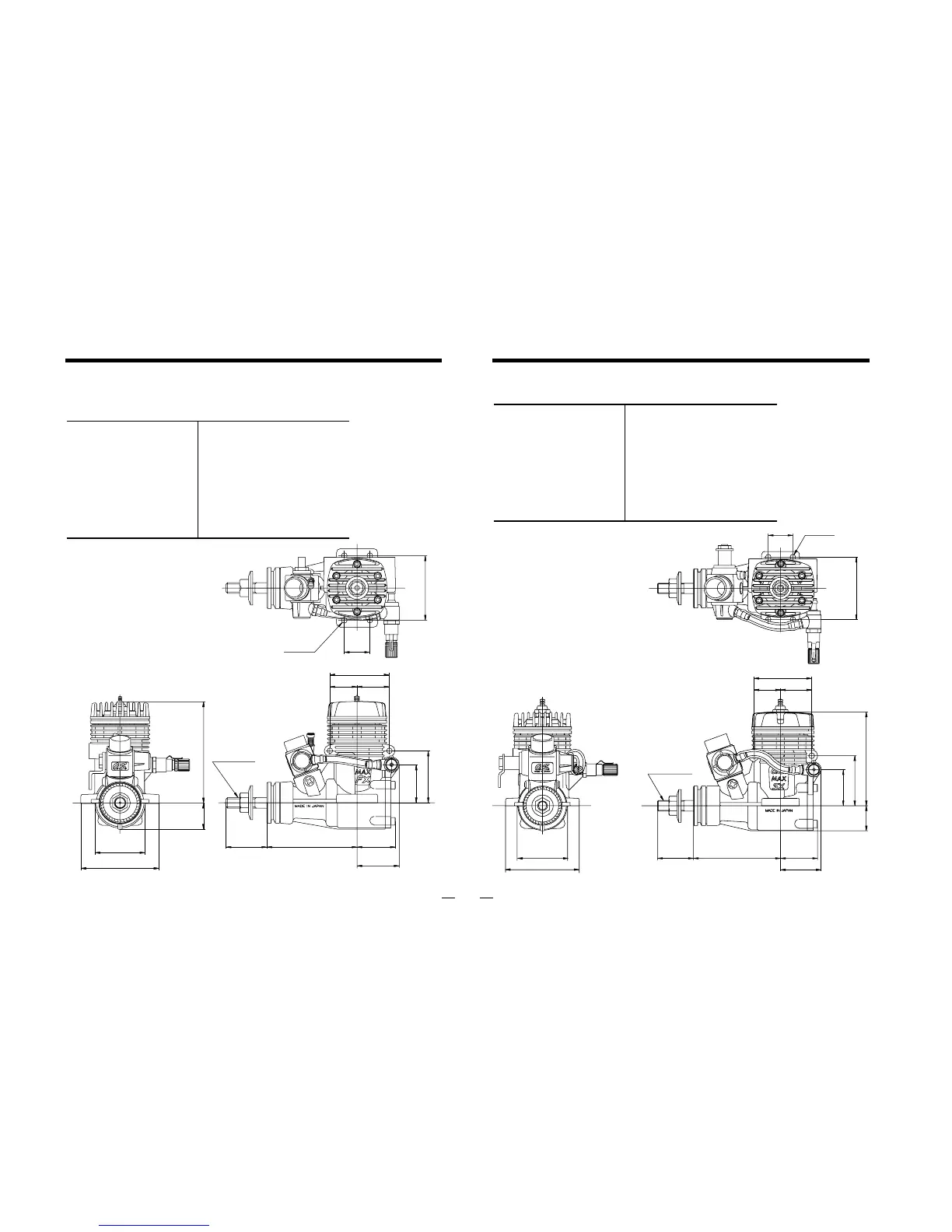

THREE VIEW DRAWING
Displacement
Bore
Stroke
Practical R.P.M.
Power output
Weight
4.07 cc
(
0.2485 cu.in.
)
18.0mm
(
0.7087 in.
)
16.0mm
(
0.630 in.
)
2,500
~ 19,000 r.p.m.
0.84 bhp / 18,000 r.p.m.
248g
(
8.75 oz.
)
■
■
■
■
■
■
SPECIFICATIONS
Dimensions(mm)
Displacement
Bore
Stroke
Practical R.P.M.
Power output
Weight
5.23 cc
(
0.319 cu.in.
)
19.5mm
(
0.768 in.
)
17.5mm
(
0.689 in.
)
2,000
~ 22,000 r.p.m.
1.2 bhp / 18,000 r.p.m.
270g
(
9.5 oz.
)
■
■
■
■
■
■
SPECIFICATIONS
