O.S. engine MAX-25LA - MAX-15 LA;25 LA Three View Drawings and Specifications

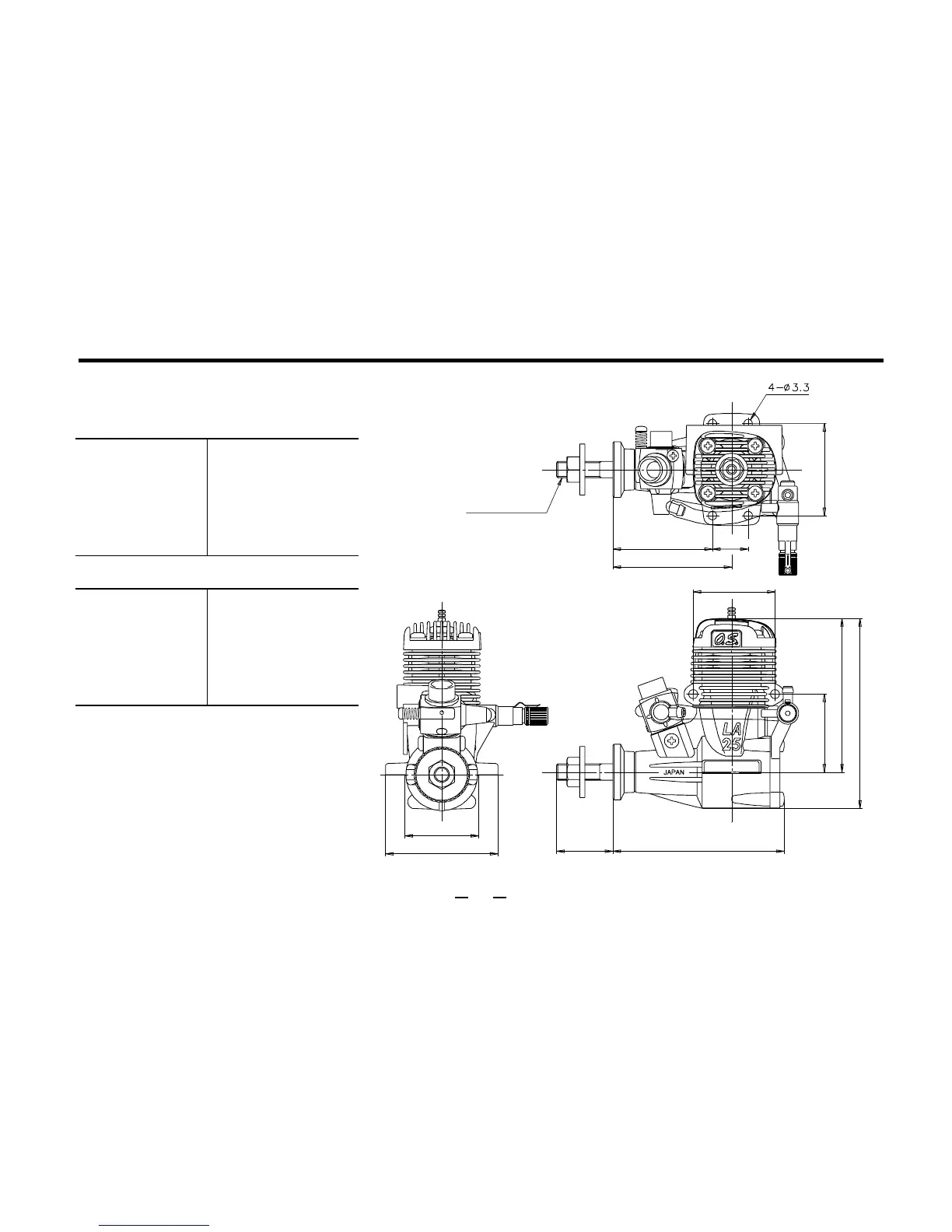

MAX-15LA/25LA THREE VIEW DRAWING
Displacement
Bore
Stroke
Practical R.P.M.
Power output
Weight
4.07 cc
(
0.249 cu.in.
)
18.0mm
(
0.709 in.
)
16.0mm
(
0.630 in.
)
2,500
~ 16,000 r.p.m.
0.6 bhp / 15,000 r.p.m.
197g
(
6.94 oz.
)
■
■
■
■
■
■
25LA SPECIFICATIONS
Displacement
Bore
Stroke
Practical R.P.M.
Power output
Weight
2.49 cc
(
0.1517 cu.in.
)
15.2mm
(
0.598 in.
)
13.7mm
(
0.539 in.
)
2,500
~ 18,000 r.p.m.
0.41 bhp / 17,000 r.p.m.
138g
(
4.87 oz.
)
■
■
■
■
■
■
15LA SPECIFICATIONS
( )15LA
Dimensions(mm)
UNF1/4-28 (M5)
39 (30.8)
14 (14.4)
46.5 (39.5)
36 (33)
32 (27.5)
30.5 (25.8)
60 (48.5)
74.5 (61)
22 (20)
29 (24.8)
44 (40)
67.5 (56.5)
36
