8mm
TOOLS
HEX Screwdriver
SCREWDRIVER
Necessary for engine installation.
1.5mm, 2.5mm
Necessary for carburetor adjustments.
Phillips Screwdriver
No.2, etc.
Socket Screwdriver
5mm, 5.5mm, 7mm
LONG SOCKET WRENCH WITH PLUG GRIP
Recommended for easy removal and
replacement of the angled and recessed
glowplug, the O.S.Long Socket Wrench
incorporates a special grip.
End Wrenches
10mm, etc.
Needle Nose Pliers
15

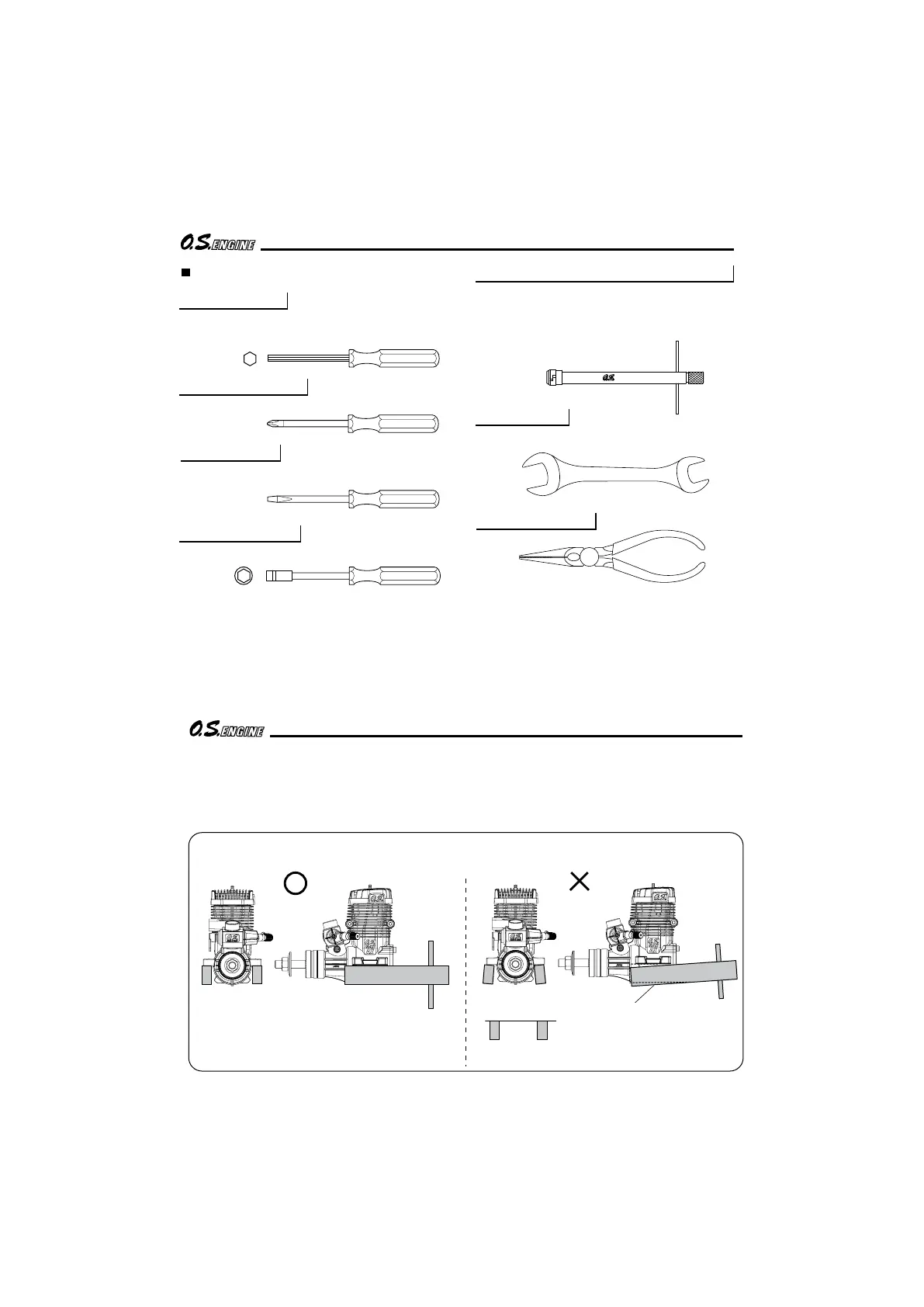

It is suggested to use as heavy and rigid as possible engine mounting for highest performance and
safe running. Conventional wooden mounting beams should be of rigid hardwood and of at least
15mm or 5/8-in square section. Use at least 3mm steel screws, such as Allen type, with locknuts, for
bolting the engine to the bearers..
INSTALLATION
CORRECT
Top surfaces are in the same plane.
INCORRECT
Front view
Side view
Re-align the surfaces
as necessary
Opposite beam
Top surfaces are not in the
same plane.
Engine does not rest firmly.
Top surfaces are not
in the same plane.
Make sure that the mounting beams are parallel and that their
top surfaces are in the same plane.
