HOW TO CONNECT
Connection

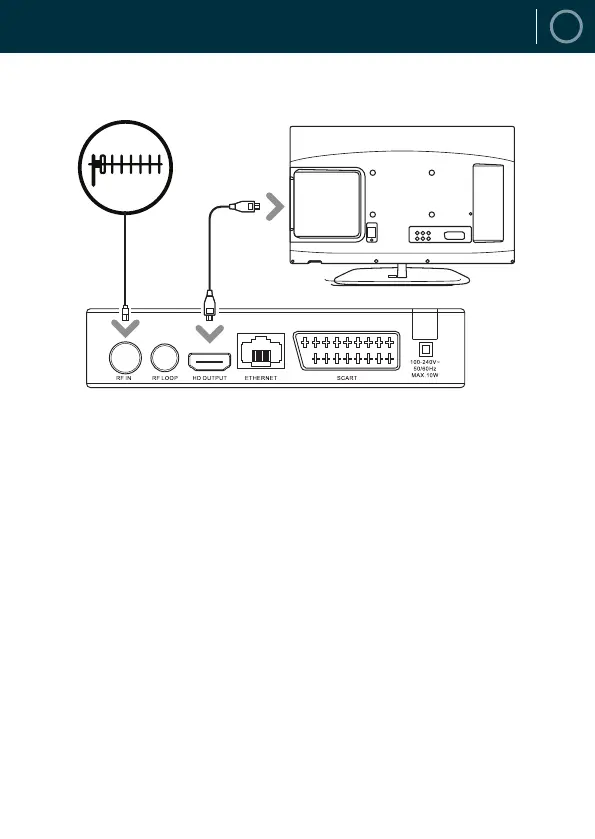

Refer to the diagram above for the connection of your Freeview box to your aerial
and TV using the HDMI slot.
Step 1: Connect your antenna lead to the TV RF IN port (Ref.42).
Step 2: Choose an installation method (HDMI (Ref.44) or SCART (Ref.46)) and
follow the steps below.
HDMI - connect an HDMI cable between your TV and the device. HDMI
incprporates both audio and video so there is no requirement to make separate
connections for audio.
SCART - if your TV does not have an HDMI slot, you can connect using the SCART
connection (Ref.46).
HDMI Cable
Coaxial Cable
Rear view of the TV
TV aerial
