Oberheim XK - External Arpeggiator Tempo

ARPEGGIATOR

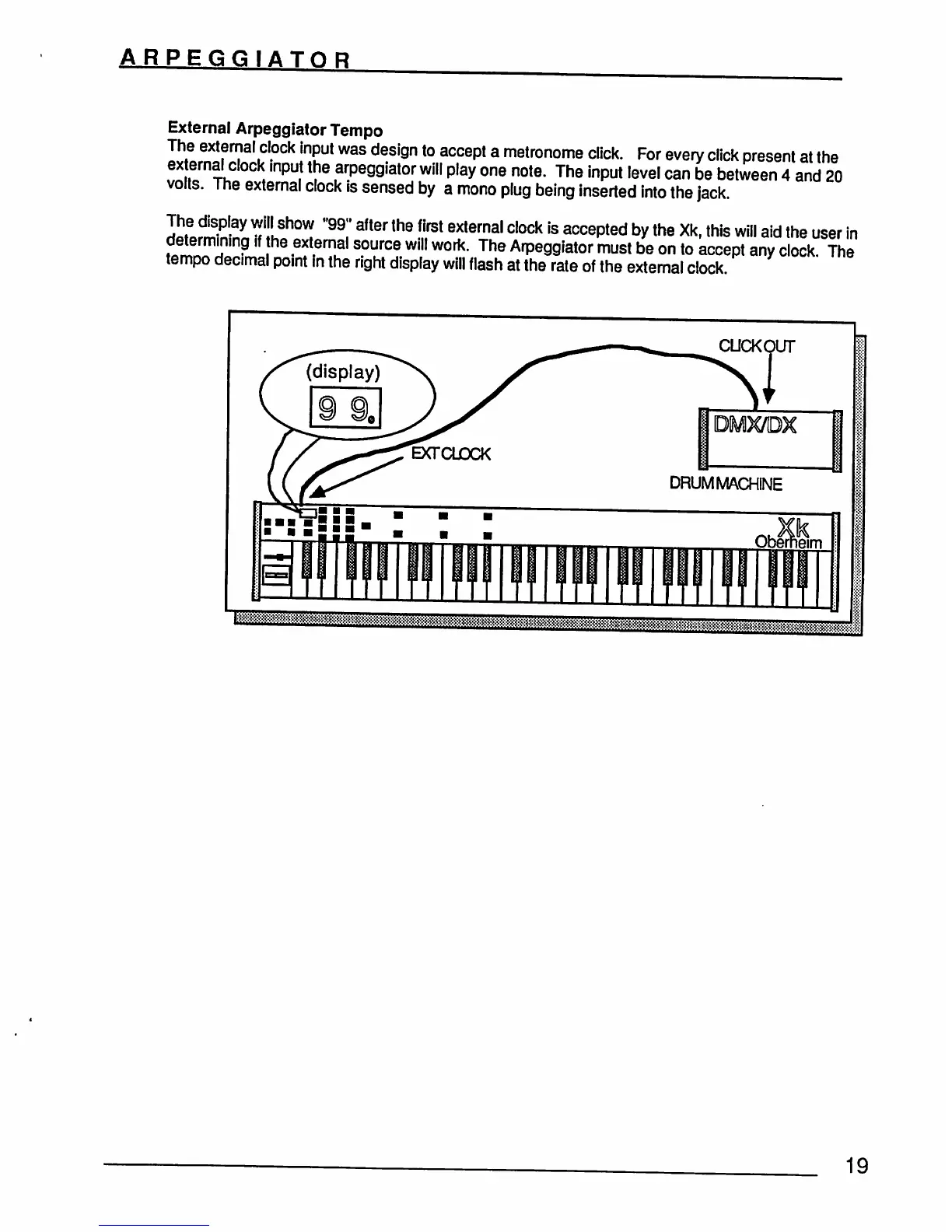

External Arpeggiator Tempo
The external clock Input was design to accept a metronome click. For every click present at the
ex ernahclock input the arpeggiator will play one note. The input level can be between 4 and 20
volts. The external clock is sensed by a mono plug being inserted into the jack.
i; "i'after the flrSl 8Xternal clock ls accePted ^the Xk-thls wl" aW the user in
external source will work. The Arpeggiator must be on to accept any clock. The
tempo decimal point in the right display will flash at the rate of the external clock
19
