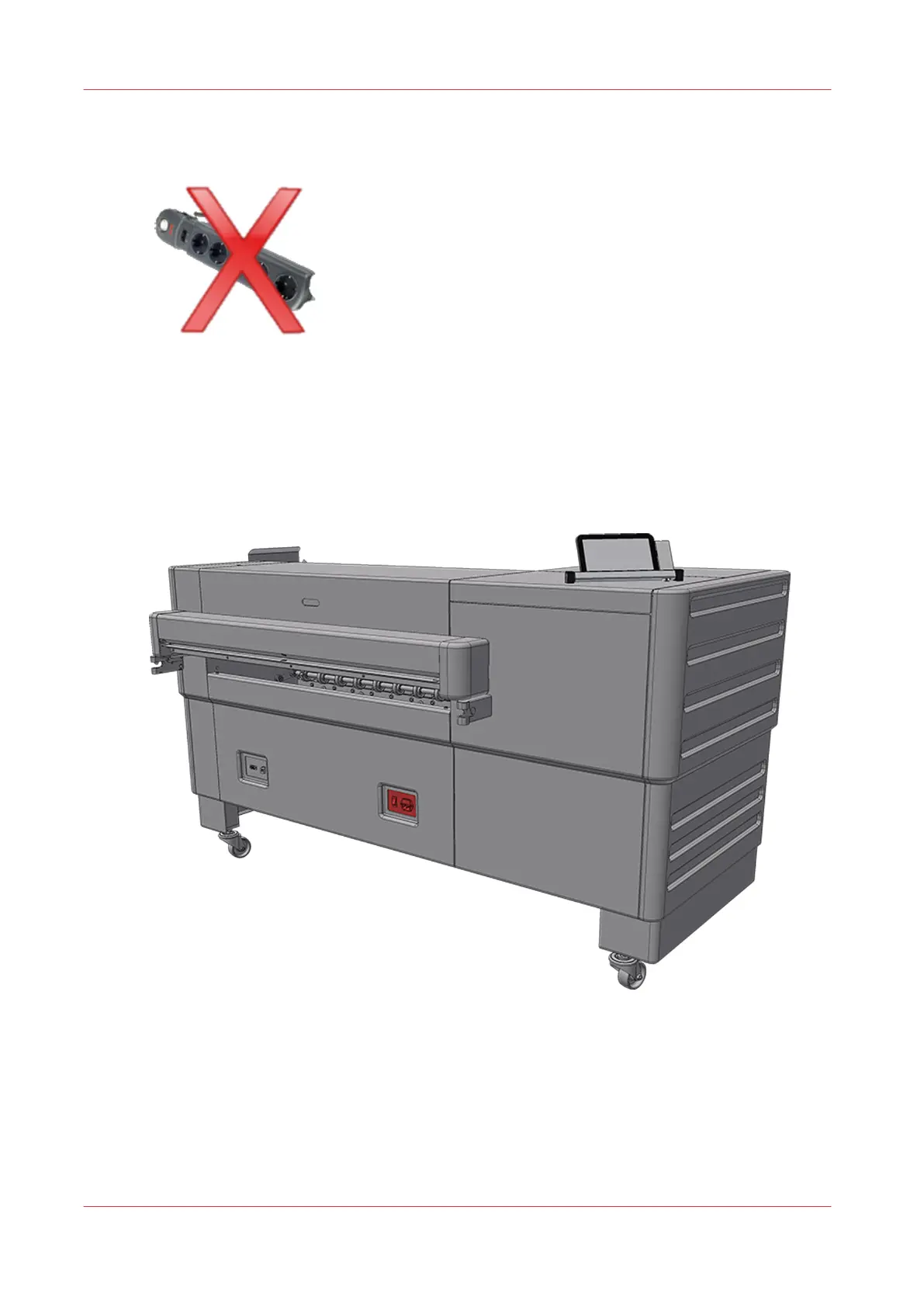

Power cable
Please use only the power cable supplied with the folder.
Do not use multi plug extension cords. These cords will not stand the power consumption of
plotter and folder.
The wall plug must be near to the machine and easy to access.
Power supply box
The power supply box is at the fan folder's right bottom side.
The machine can be completely switched off by disconnecting the power cable itself.
This area must be accessible at all times.
Power supply: 100V - 120V / 200V - 240V AC 50/60Hz 10A
Find the folders serial number on the rating plate next to the switch.
20
Chapter 3 - Power and switch on
