Oceanic BioCube HQi User Manual

WARNING:
1. Thisxtureisforuseovercovered
aquariumsonly.
2. Always turn xture off and unplug ballast
power cord before adjusting xture or
replacing lamps. Let the xture cool down
before handling.
3. Do not attach xture to ballast until
all assembly connections, adjustments
and mounting setups are completely
performed.
Aqualight HQI Mounting
(Figures B1 and B2)
1. Place Aqualight tank mount bracket
between the two rear ltration covers
(Figure B1).
2. Hold the tank mount bracket in place
and remove the two rear ltration covers.
3. Continue to hold tank mount bracket
in place and fasten tank mount screws
(Figure B2). Hand tighten tank mount
screws until tank mount bracket is securely
in place.
Aqualight HQI Fixture Assembly
(Figure B3)
1. Connect lighting hood (Connection A),
with male connection knob to tank mount
bracket (Connection B), with female
connection knob using height
adjustment knob.
2. Screw height adjustment knob through
Connection B and into Connection A.
3. Adjust and secure connection.
Safety Precautions:
1. Do not plug BioCube into an outlet or
power source until setup and installation
is completed.
2. Visually inspect the aquarium and canopy
prior to installation to make sure it has not
been damaged.

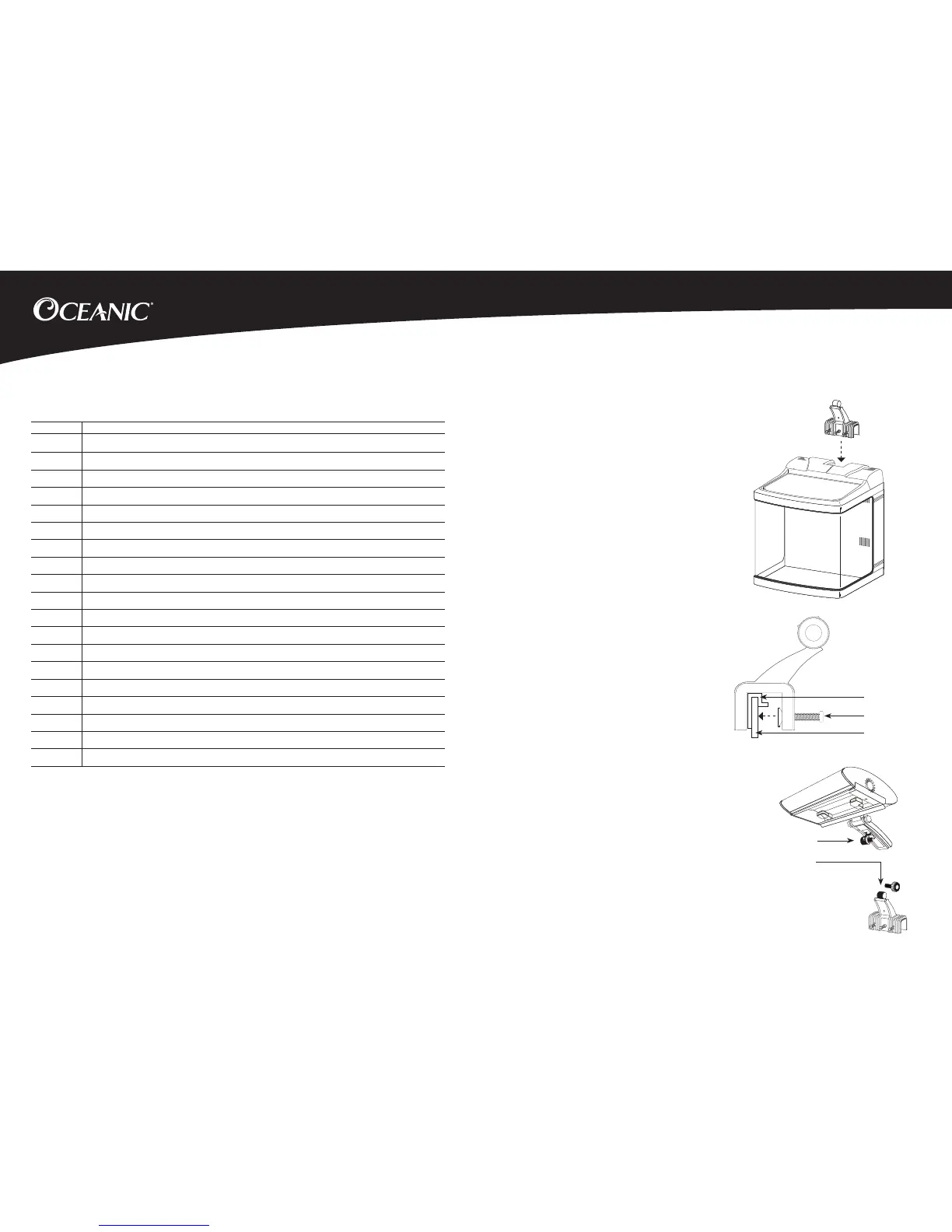

ASSEMBLY AND MOUNTING
Molding
Tank Mount
Screws (3)
Glass
Connection A
Connection B
FIGURE B3
FIGURE B1
FIGURE B2
AQUALIGHT HQI PARTS
IDENTIFICATION
Part # Description
1 Aqualight Lighting Hood
2 Lamp Holder
3 Angle Adjustment Knob
4 Male (A) Connection Knob
5 Side End Panel
6 HQI Glass Lens Cover
7 Double-Ended HQI Metal Halide Lamp
8 Extension Arm
9 Ventilation Grill
10 Height Adjustment Knob
11 Female (B) Connection Knob
12 Hang-On Tank Mount Base
13 Tank Mount Bracket
14 Tank Mount Screws (3)
15 Extension Adjustment Knob
16 Ballast Connection
17 Cooling Fan Connection
18 HQI Metal Halide Ballast
19 Cooling Fan Adaptor
20
21
