Grounding Setup:
This appliance should be grounded to minimize
the possibility of electric shock. This appliance
is equipped with an electric cord having
an equipment grounding conductor and
a grounding type plug. The plug must be
plugged into an outlet that is installed and
grounded in accordance with all appropriate
codes and ordinances.
This appliance is for use on a nominal 120-volt
circuit, and has a grounding plug that looks like
the plug illustrated in Figure A2.
A temporary adaptor which looks like the
adaptor shown (Figure A3) may be used to
connect this plug to a two-pole receptacle as
shown in Figure A4, if a grounded outlet is not
available. The temporary adapter should be
used only until a grounded outlet can be
installed by a qualied electrician.
(Temporary adapter not included.)
Grounding Installation:
The green-colored ground terminal (screw, and
the like) extending from the adapter must be
fastened to a permanent ground such as a
grounded outlet box.
1. Plug temporary adapter into two-pole
outlet (Figure A4).
2. Insert screw through rigid ear on temporary
adapter and into grounded outlet box
(Figure A5).
Power Strip Setup:
1. If using a power strip, the ground connector
must be plugged into a receptacle controlled by
a GFI (ground fault interrupter) circuit breaker.
2. Make sure to place the power strip in a dry and
safe area away from the aquarium in order to
avoid moisture.
3. Place power strip in a secure and stable area so
that it cannot fall into the aquarium or sump.
4. Make sure all receptacles are protected from
water: splash, spilling and evaporation.

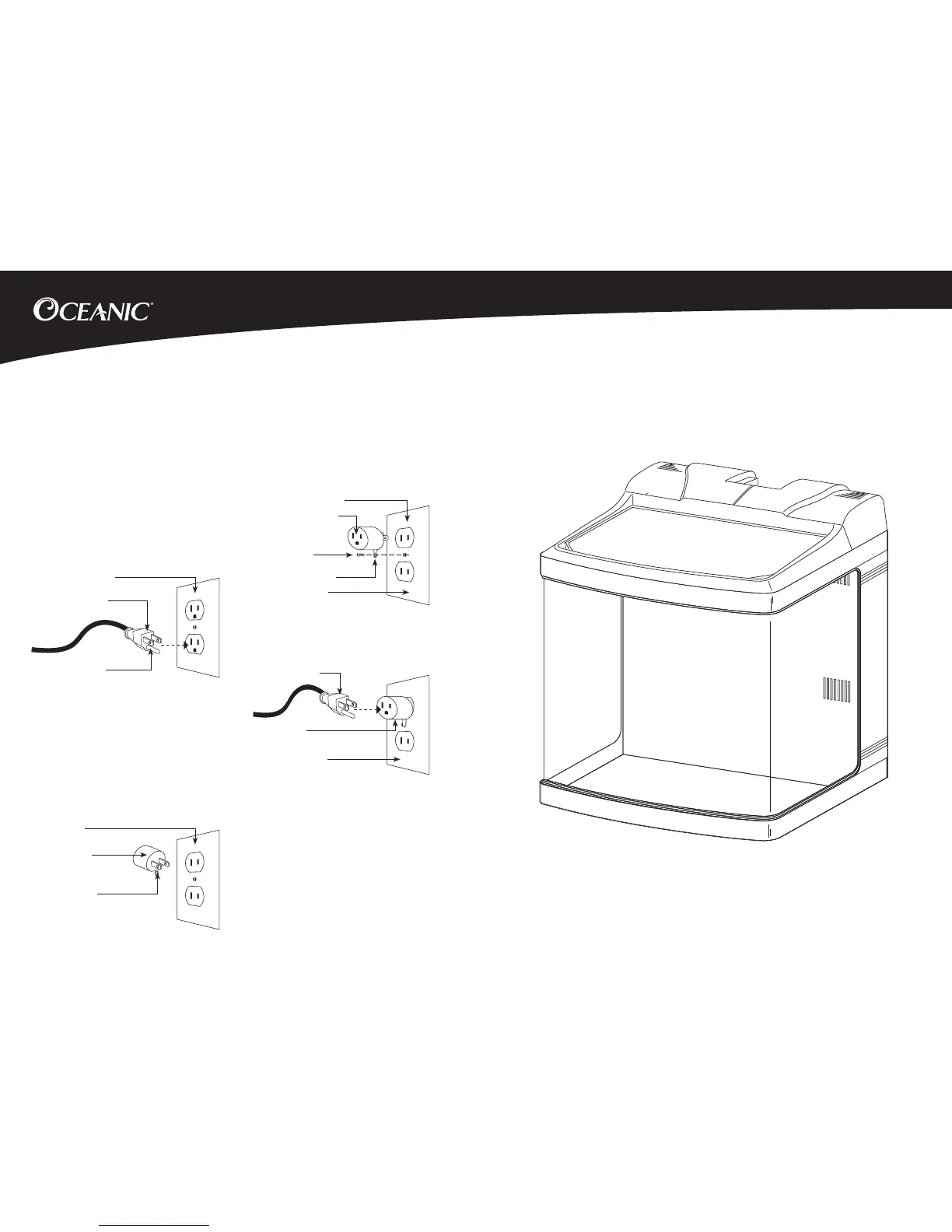

GROUNDING
FIGURE A3
FIGURE A2
Grounded Outlet
Two-Pole
Receptacle
Grounded Plug
Temporary
Adapter
Screw
Grounding Pin
Rigid Ear
(Grounding
Means)
FIGURE A4
Two-Pole Receptacle
Temporary Adapter
Grounded Outlet
Box Cover
Rigid Ear
(Grounding Means)
FIGURE A5
Grounded Outlet
Box Cover
Temporary
Adapter
Grounded Plug
BioCube HQI
ASSEMBLY AND SETUP INSTRUCTIONS
