Oceanic DX1 User Manual

REGULATORS
DXI INTEGRATED FIRST STAGE
© 2002 Design 2000
OCEANICOCEANIC
OCEANICOCEANIC
OCEANIC®
Product Service Guide Product Service Guide
Product Service Guide Product Service Guide
Product Service Guide
Doc. 12-2205-r01 (01/00)
PG-11

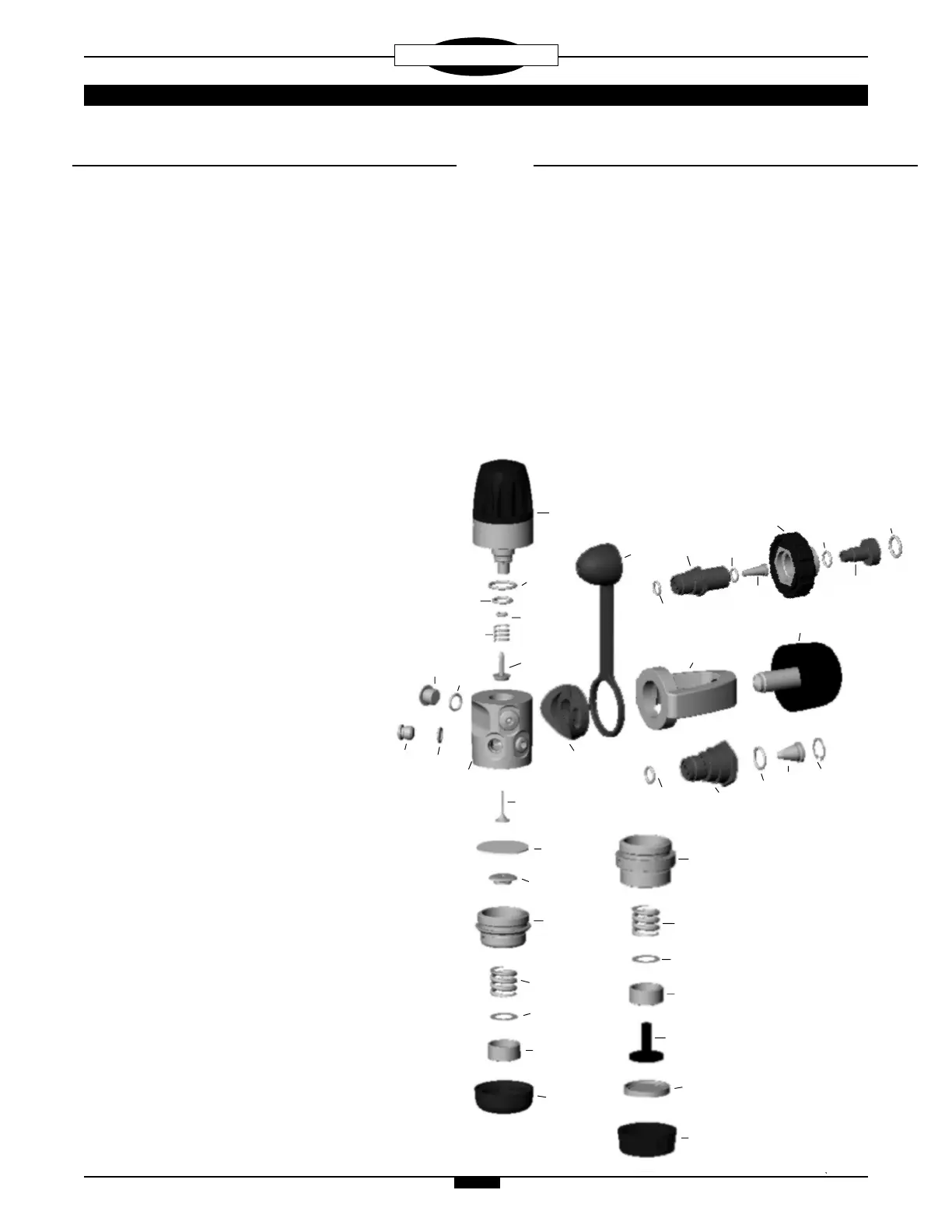

Yoke Version
1c 6307.07 Knob Assembly (Black)
6307.21 Knob Assembly (Nitrox)
2c 6562 Yoke (satin finish)
3c 3530 Clip - Retaining
4a 3545 Filter - Conical
5a 2.013 O-ring - Filter
2.013V O-ring - Filter Viton (Nitrox)
6c 6564 Retainer - Yoke
7a 2.011 O-ring - Retainer
2.011V O-ring - Retainer Viton (Nitrox)
8c 6560 Cap - Protector (Black)
DIN Version
9a• 6374 O-ring - DIN Face Urethane (Nitrox)
10c 4544 Retainer - DIN Filter
11a• 2.012 O-ring - Retainer
2.012V O-ring - Retainer Viton (Nitrox)
12c 6559 Wheel - DIN Coupler
13a• 4546 Filter - DIN Conical
14a• 2.011 O-ring - Filter
2.011V O-ring - Filter Viton (Nitrox)
15c 6565 Housing - DIN Filter
16a• 2.011 O-ring - Filter Hsg
2.011V O-ring - Filter Hsg Viton (Nitrox)
Yoke & DIN Versions
17c 6585 Saddle
18c 3462 Plug - HP Port
19c 3.904 O-ring - HP Port Plug
3.904V O-ring - HP Port Plug Viton (Nitrox)
20c 3463 Plug - LP Port
21c 3.903 O-ring - LP Port Plug
22c 6586 Assembly - Transmitter
23c 2.112 O-ring - Transmitter, Outer
24c 2.015 O-ring - Transmitter, Inner
6508 O-ring - Transmitter Urethane (Nitrox)
25a 6498 O-ring - Seat Urethane (Nitrox)
26c 6512 Spring - Seat
27a 6490 Seat - HP
28c 6575 Body (satin finish)
29c 6576 Button Pin Assembly
30a 6574 Diaphragm
31c 6577 Pad - Spring
32c 6580 Cap - End
33c 6513 Spring - Diaphragm
34b 6524 Washer - Spring
35c 6518 Cup - Adjustment (polished)
36c 6581.02 Boot - End cap
Dia.
No. Part # Description
Dia.
No. Part # Description
1
2
3
5
18
22
27
26
29
28
31
35
33
36
37
38
40
20
19
34
30
4
8
7
6
32
39
17
35
33
Environmental Kit Version (P/N 40.4045.99.1)
37c 6583 Cap - End, Environmental
38c 6516 Piston - Transfer
39c 6511 Diaphragm - Environmental
40c 6584 Cap - Environmental
ANNUAL SERVICE PARTS KITS
40.6170 Service Kit - Regulator
(Includes all Bold items.)
40.6180 Nitrox Conversion/Service Kit
40.6144 Service Kit - DIN assembly
(Nitrox compatible)
(Includes all • items)
25
34
11
15
13
16
14
10
12
9
21
24
23
