2 Intended use
The set-top box is intended to receive TV and radio signals in conjunction with
IPTV systems. The remote control is intended for operating the set-top box and
TV sets. Any other use constitutes improper use. The manufacturer assumes no
liability for errors, faults or damage caused by improper use. This includes the
following in particular:
■
Improper connection and operation
■
Use of unsuitable data media or accessories
■
Failure to comply with the installation and storage conditions
■
Infection of software components with computer viruses
■
Modification of the hardware and software
3 Scope of delivery
■
Set-top box
■
Power supply
■
High speed HDMI
®
Cable (1,5 m)
■
Network cable (3 m)
■
Remote control
■
2 x alkaline batteries type AAA
■
Instructions for use
4 Connections

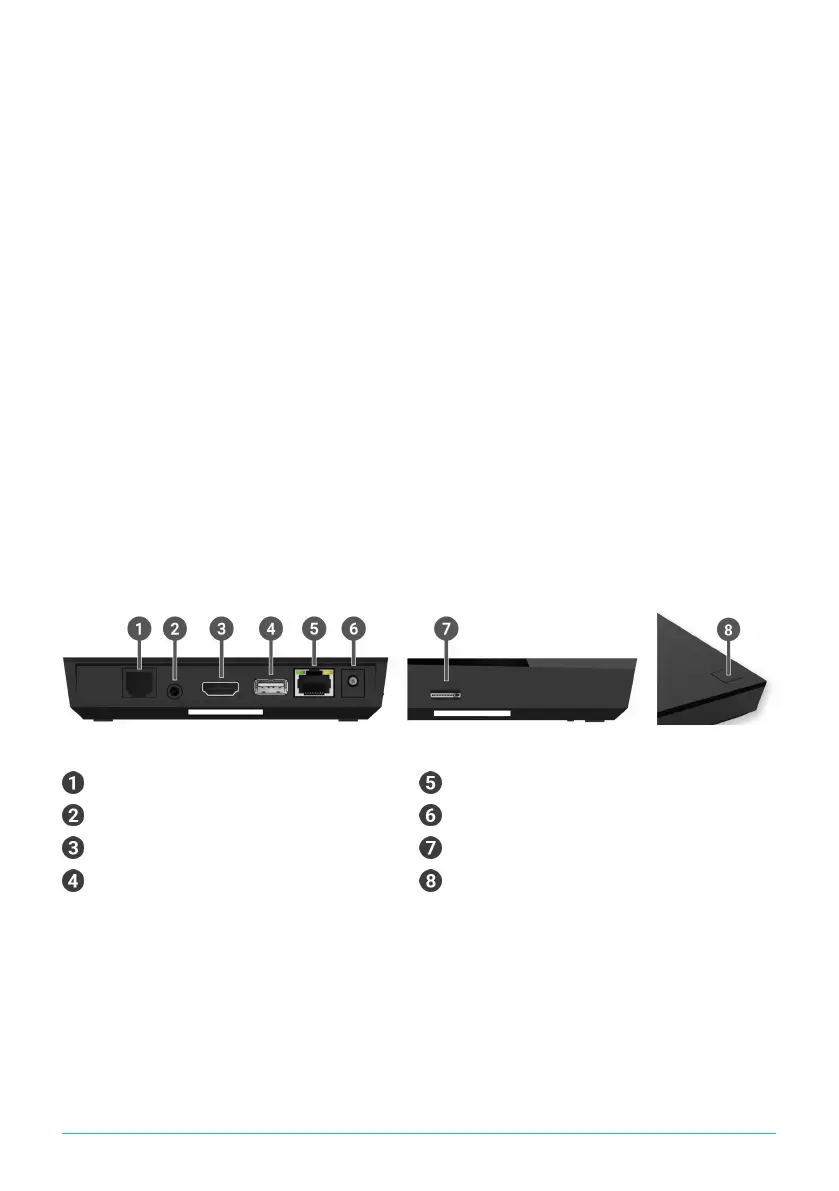

Figure 1: Connections
RJ12 (RS232 and IR Input)
S/PDIF optical / 3.5mm jack
1)
HDMI
®
output
USB
2)
LAN
Power
Micro SD card slot
2)
On/off, remote control pairing
(Bluetooth mode)
3)
1)
Combined connection for 3.5mm jack (e.g. for headphones) and optical
TOSLink (S/PDIF)
2)
For service use only, or as instructed by your provider. The connection of media
can influence the serviceability of the set-top box.
