22
11. TECHNICAL DATA AND DIMENSIONS
In- and Outputs:
Inputs: 5 x RCA, including one optional Home Theatre Bypass input
Outputs: 1 x RCA Record output, 1 x regulated Preamplifier
output, 1 x Loudspeaker output
Amplifier
Power output: 2 x 70 W / 4 ohms
Frequency response 10 Hz - 80 kHz / 0.5 dB
Total harmonic distortion 0.1% at 10 W into 4 ohms
Signal-to-noise ratio 100 dB
Minimum load impedance 2 ohms
Input sensitivity 120 mV, normal gain
700 mV, low gain
General
Power consumption 130 W minimum, 320 W at full power
Weight: 21.6 kg
Standard accessories power cable,
3mm slotted screwdriver for BIAS measurement,
Allen wrench 2 mm for removing the grille
IR remote control

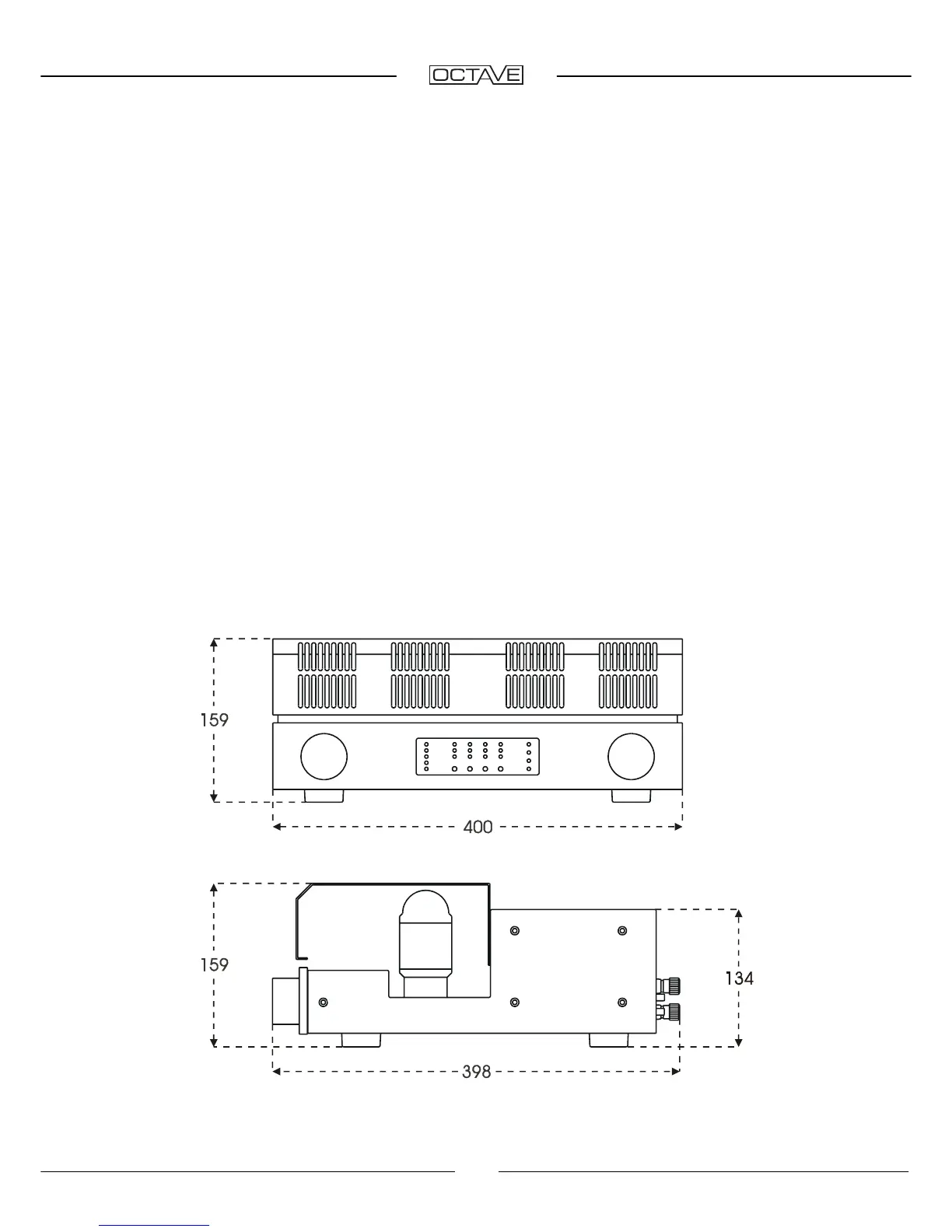

Dimensions Overall dimensions in mm
