8.ENGINE
8-11
ENGINE OIL STRAINER
Oil Strainer Location
The engine oil strainer is located
between both crankcase halves.
Removing the Oil Strainer
Separate crankcase halves .Refer to
BOTTOM END subsection.
Remove:
-Screws
-Retaining plate
-Engine oil strainer

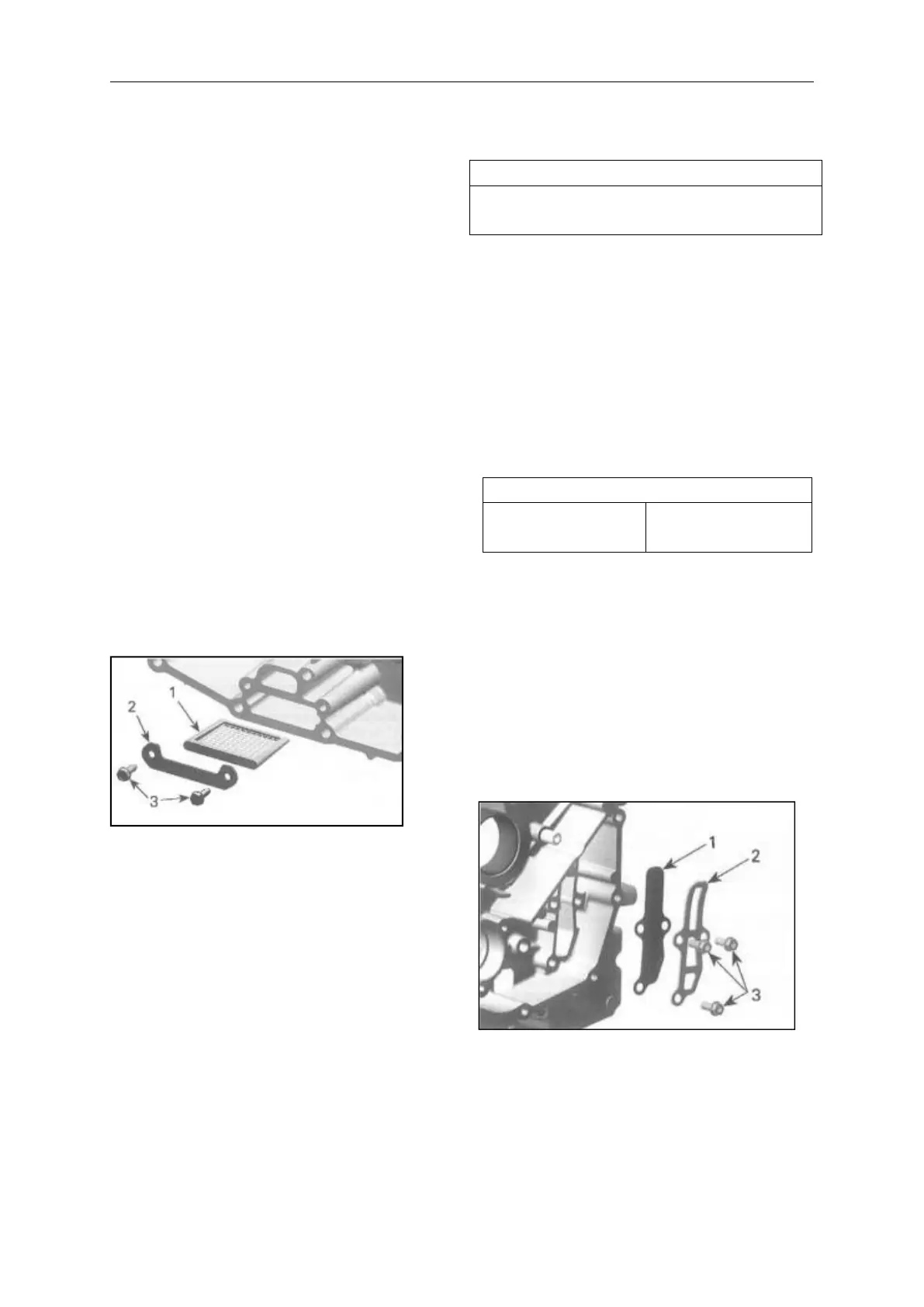

1. Engine oil strainer
2. Retaining plate
3. Screws
Cleaning and Inspecting Oil Strainer
Clean engine oil strainer with a part
cleaner then use an air gun to dry it.
▲WARNING
Always wear eye protector. Chemicals can
cause a rash break out and injure your eyes.
Check engine oil strainer for cracks or
other damage. Replace if damaged.
Installating the Oil Strainer
The installation is the reverse of the
removal procedure.
OIL STRAINER RETAINING SCREWS
Oil strainer reatining
screws
6N·m± 0.7N·mm
REED VALVE
The engine is equipped with a reed valve
which prevents accumulation of larger oil
quantities in the crankcase. The reed
valve is fitted into the crankcase.
1. Reed valve
2. Stopper
3. Screws
