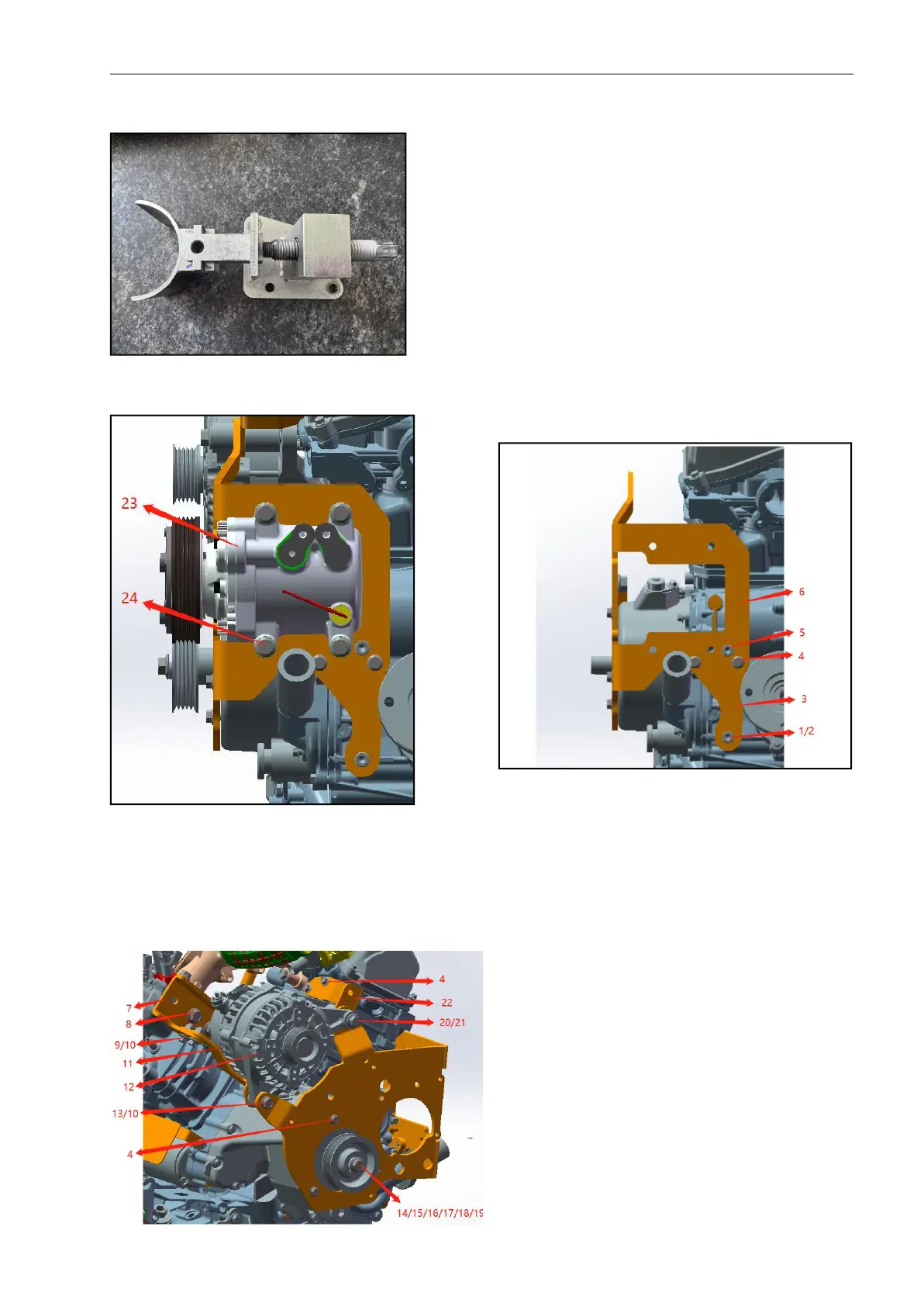

Elastic belt disassembly and assembly tooling
4.Remove the compressor
23. Compressor
24. M8 bolt×4
5.Remove the generator and generator
bracket
6.Remove the bracket fixing plate
7.Remove the pulley
7. Bracket fixing plate
8. bolt M10×2
9. bolt M8×2
10. nut M8×3
11. Generator rear bracket
12. Generator
13. bolt M8
14. Plug M10
15. Oil seal
16. Ordinary round head flat key
17. Belt pulley
18. Butterfly gasket
19. bolt M10
20. bolt M10
21. Generator clamping sleeve
22. Generator front bracket
8. Remove the bracket and bracket plate
1.bolt M10
2. Spacer
3. Support plate
4. bolt M8×7
5. bolt M10
6. Bracket
9.For installation, reverse the removal proce
dure.
