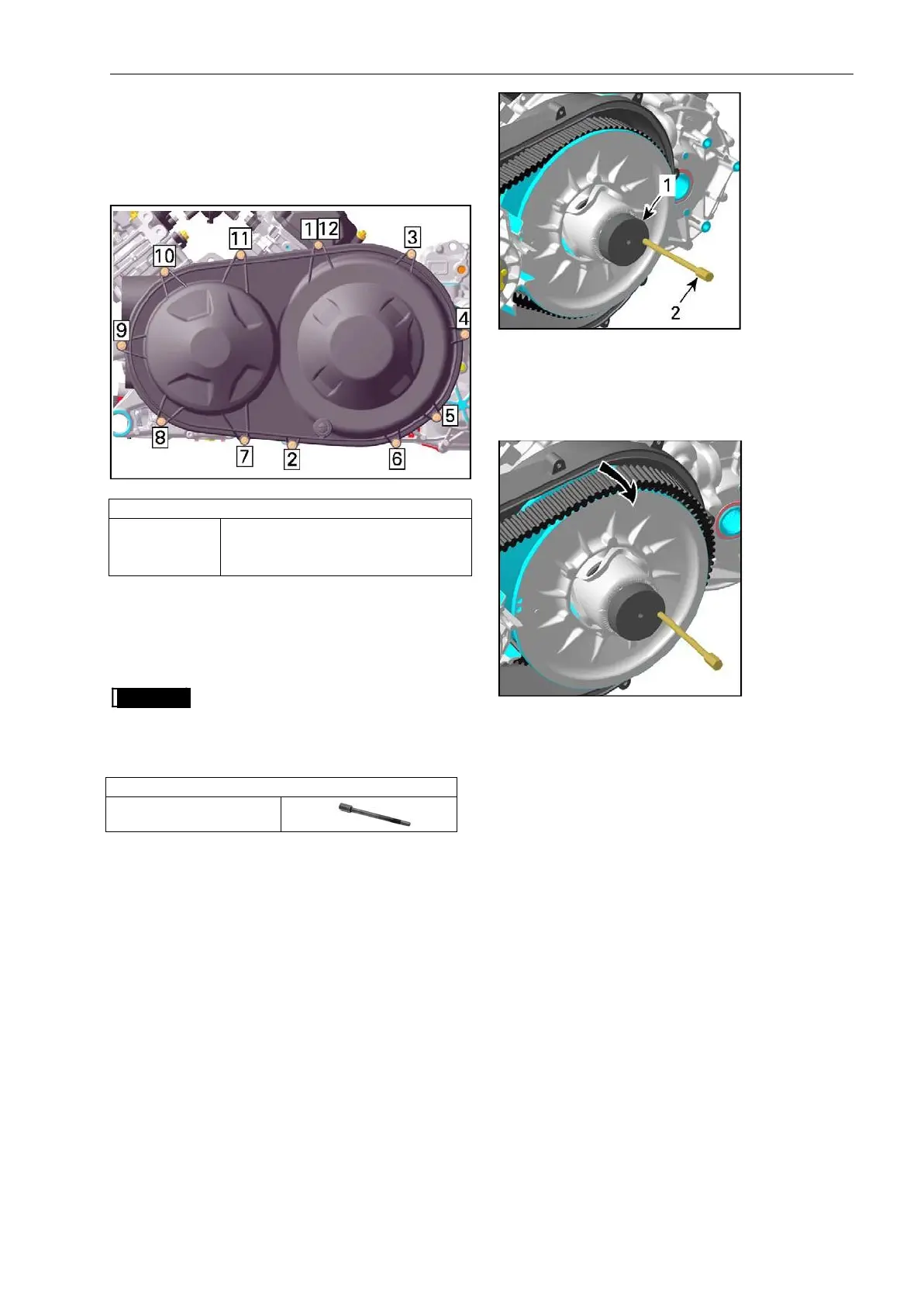

Installing the CVTCover
Install the center top screw of first.
Tighten the CVT cover retaining screws
as per fol-lowing sequence.
DRIVE BELT
Removing the Drive Belt
NOTICE In case of a drive belt failure, the
CVT, cover and air outlet must be cleaned.
Remove CVT COVER.
Screw in the driven pulley adapter into
the driven pulley shaft.
Screw in the driven pulley extractor into
the threaded offset hole of the adapter.
Tighten the extractor to open the pulley.
1.Driven pulley adapter
2.Driven pulley extractor
To remove belt, slip the belt over the top
edge of fixed sheave, as shown.
Inspecting the Drive Belt
For drive belt inspection refer to DRIVE
BELT INSPECTION in the PERIODIC
MAINTENANCE PROCEDURES
subsection.
Installing the Drive Belt
For installation, reverse the removal
procedure. Pay attention to following
details.
The maximum drive belt life span is
obtained when the drive belt has the
proper rotation direction. Install it so
that the arrow printed on belt is pointing
towards front of the vehicle, viewed
from top.
