6.ELECTRICAL SYSTEM
6-12
angle of the throttle valve.
(5). Other: including：a. throttle body, which controls air intake through throttle pull wire; b.
Fault alarm lamp, which is installed on the dashboard for fault alarm; c. Battery, door lock,
fuse for power supply to EFI system.

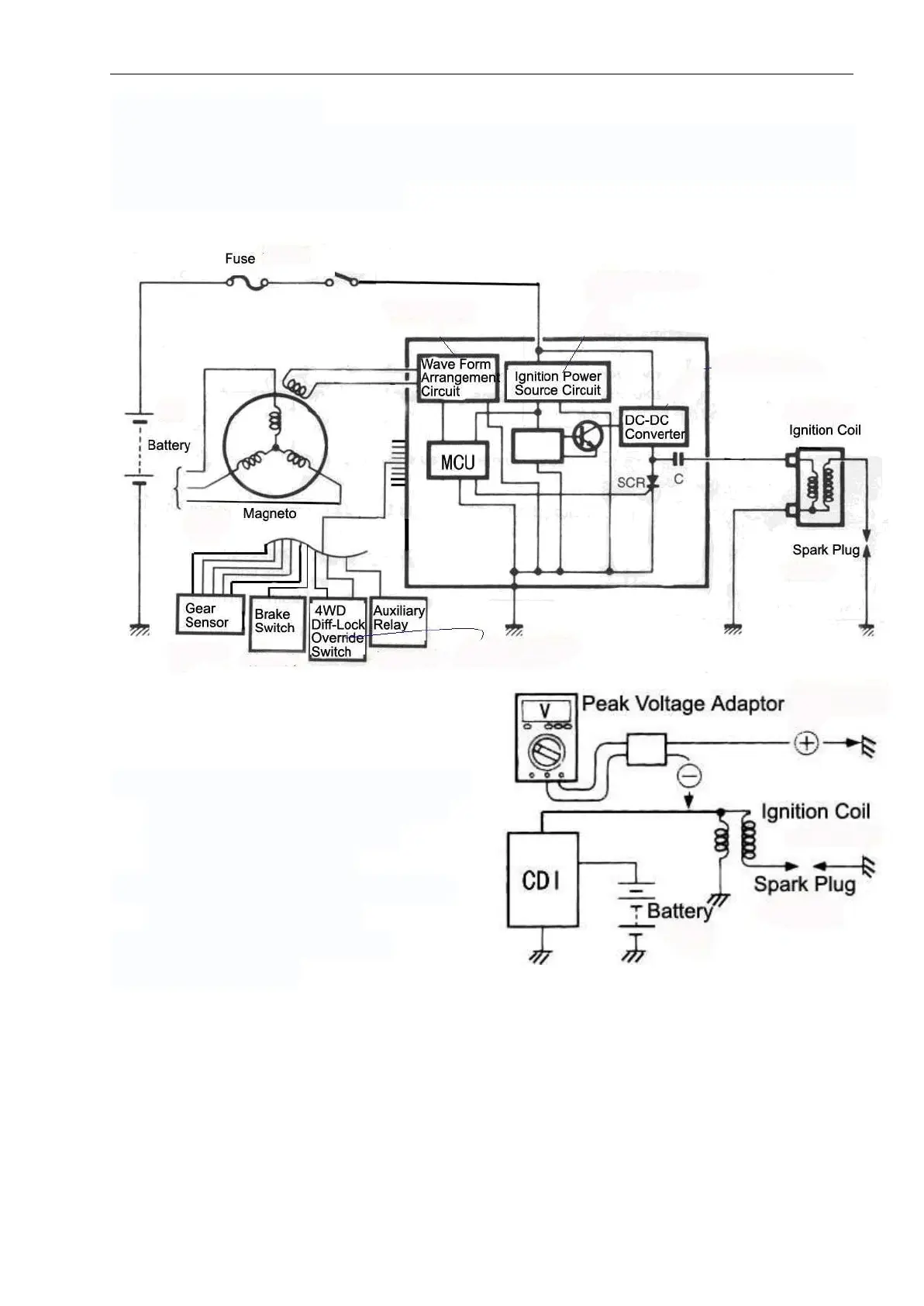

Ignition system
Ignition coil
Primary peak voltage of ignition coil
Z Remove the spark plug cap as shown in
the right figure. Install the new spark
plug to the cap. The cylinder is
connected to grounding.
Z Connect the multimeter and the peak
voltage adapter as follows:
+Probe: BK wire or grounding wire
-Probe: Br / yellow wire
