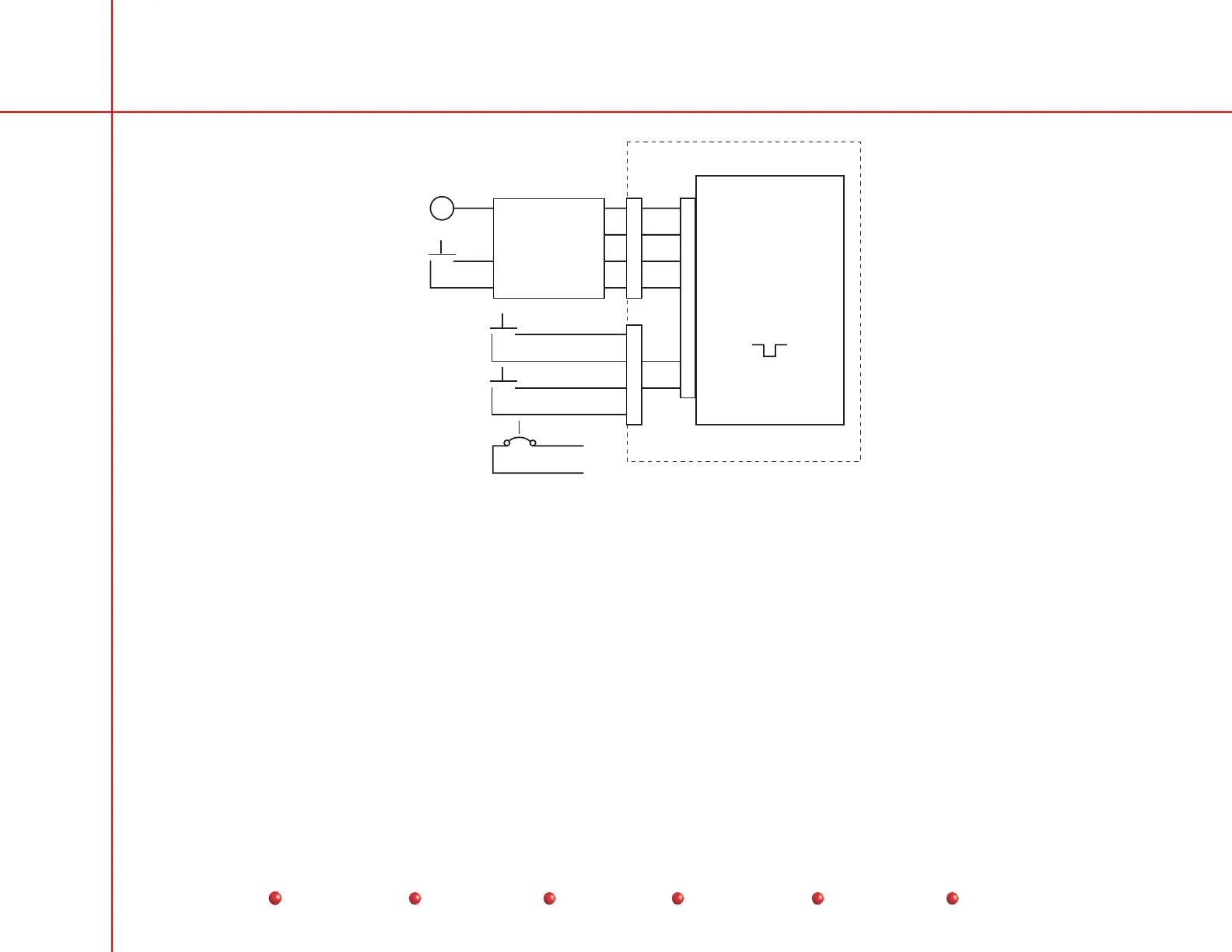

X-ray On, X-ray Disable
Backplane
Xray Controller PCB
+ 5V
Xray Lamp
Xray Enable
Xray On
Security
Process
I-Source
FS-Motor A/B
FS-INTLK Loop
FS-Motor Loop
Power/Signal
Interface PCB
Faststop
Switches
To Power/Signal
Interface Board
Handswitch
Footswitch
S3- A,B
Xray Switch
Xray Lamp
On
X-Ray On, X-Ray Disable
The Generator does not receive drive signals unless both X-ray Enable and X-ray ON are asserted. X-Ray Enable is generated
by a hardware switch closure (top button, hand or footswitch), whereas X-Ray ON is generated by software. Both must be active
to allow X-Ray generation, which prevents a single fault condition from allowing uncommanded X-rays.
Status of these lines is displayed at LED DS2 on the HV Supply Regulator PCB. LED XRE shows a hardware switch closure
when lit and LED XRO shows when illuminated that software signal X-Ray ON is active.
