OEC 9800C-Arm - Page 151

kV Generation

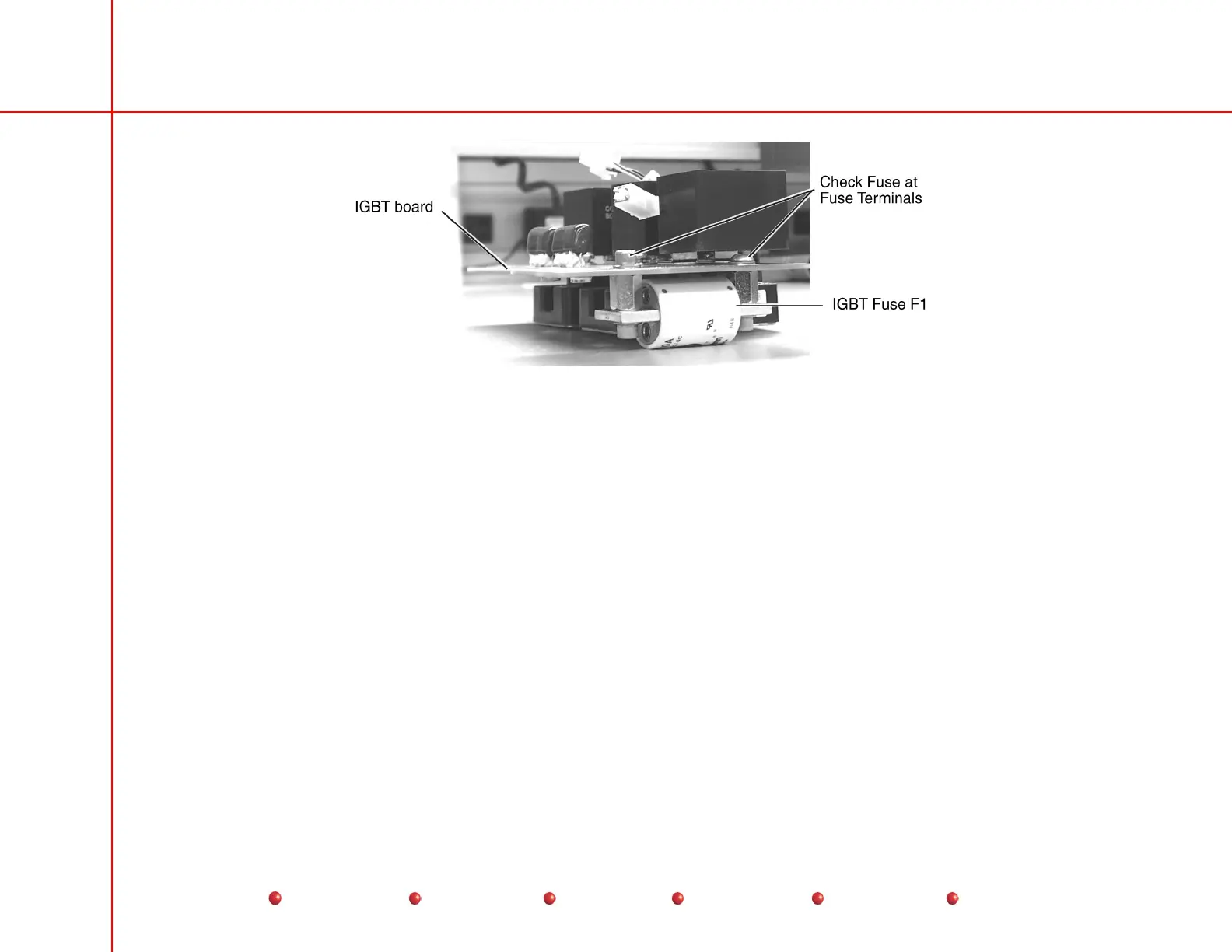

IGBT PCB Removed for Clarity
A bank of three 6800uF, 300V capacitors (C8-C10) are located in the Capacitor/Power Module. They supply large amounts of
current for short periods. These capacitors are connected to four 1K, 25-watt resistors in parallel to bleed dangerous voltages
from the high-energy capacitors when the system is shut down because of a fault.
11
