Flip Flop Motion
Circuit/Mechanical Descriptions
The C can pivot on its cradle axis ±180 degrees. A Flip-Flop brake secures the C in whatever position you choose. There is a
brake handle on either side of the Flip-Flop assembly. To secure the C and prevent further rotation on the cradle axis, position
either brake handle toward the “lock” icon.
CAUTION: When you release the Flip-Flop brake handle, place your other hand on the C so that you have full control of its
movement.

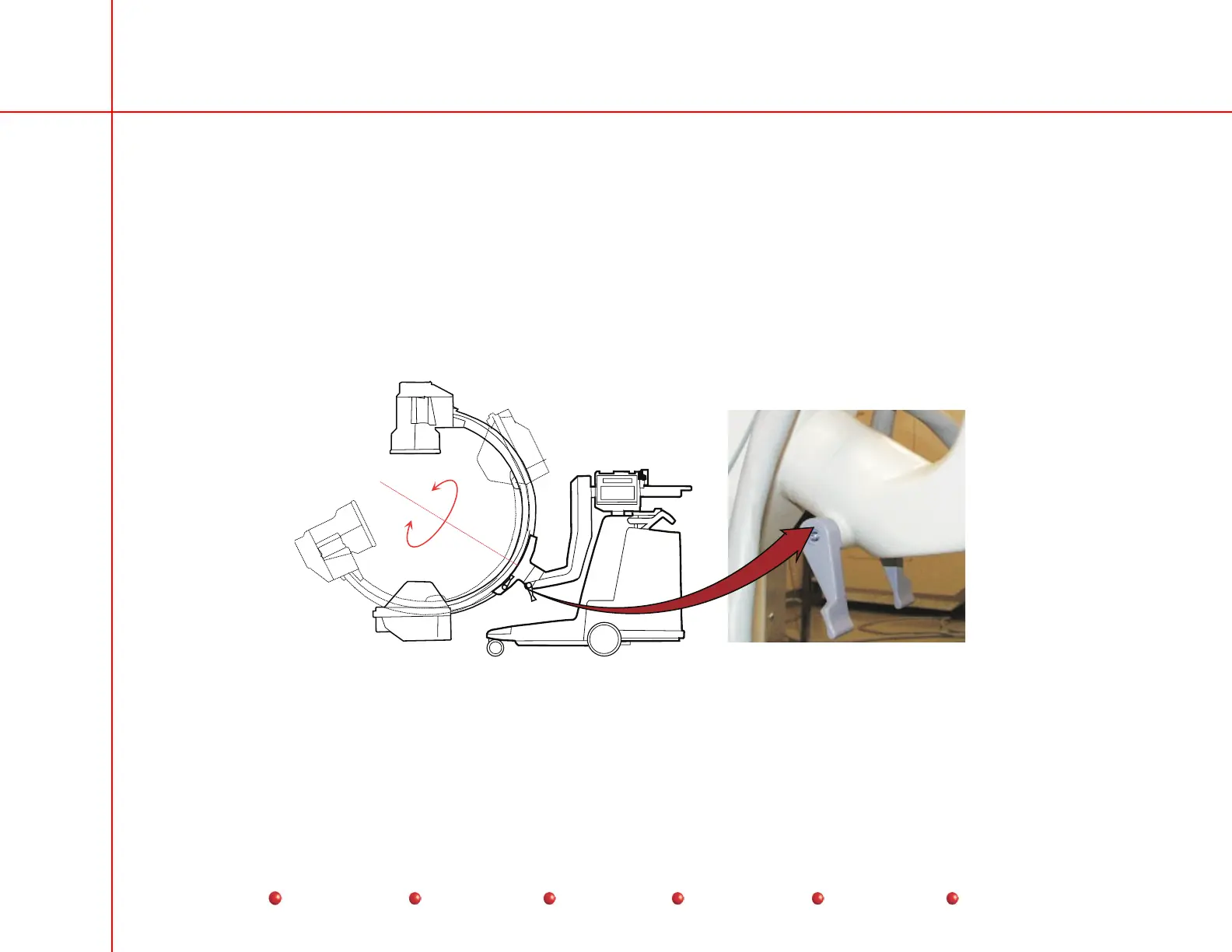

Flip-flop Motion
Flip-flop Brake Handles
Flip-Flop Movement and Brake Handle
