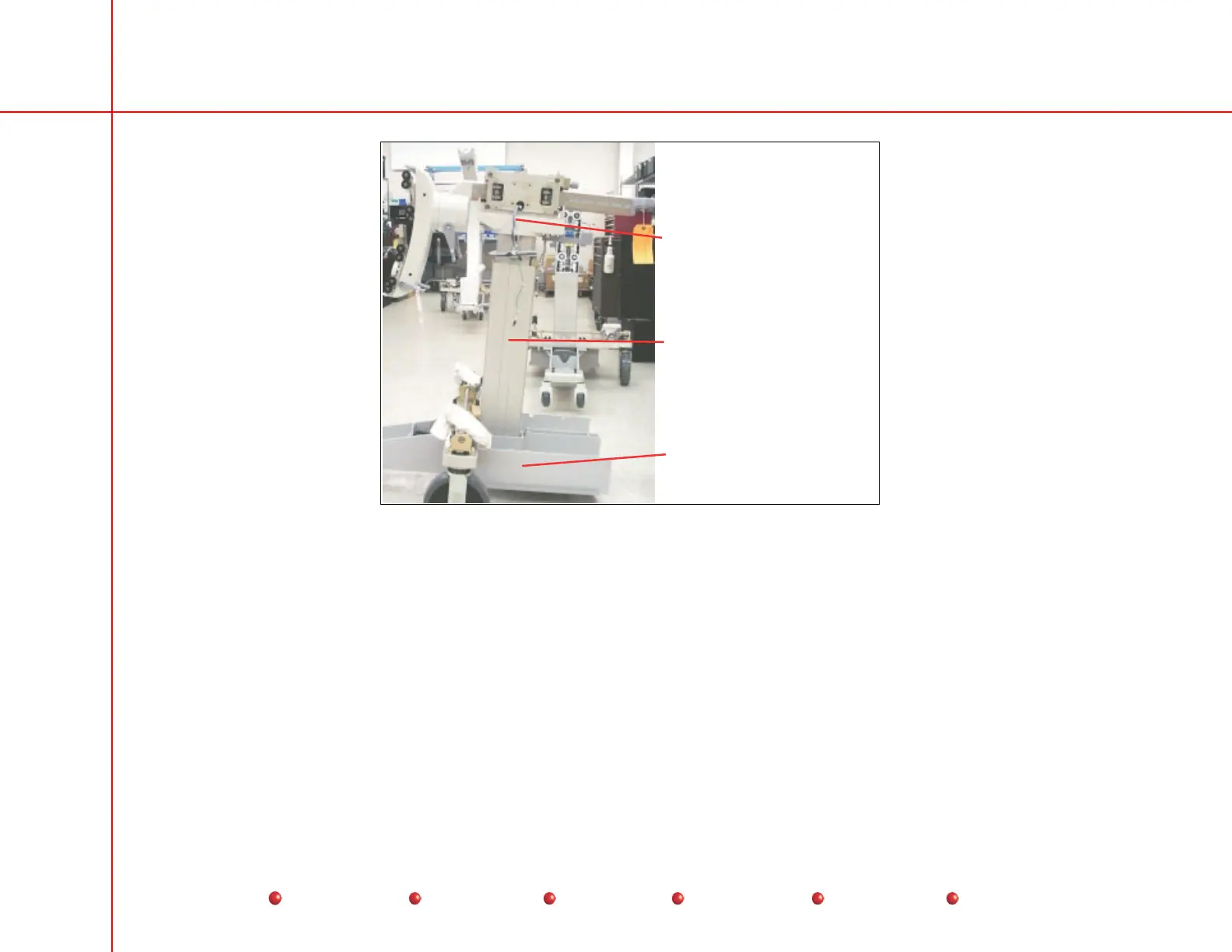

Vertical Column Lift
Cabling Routed
Inside Vertical Column
Vertical Column Assembly
Generator Chassis
Vertical Column Lift with Cabling
Vertical Column Power Supply PS3
The Vertical Column Power Supply produces 24 VDC at 6 Amps, which powers the DC motor that drives the Vertical Column up
and down. PS3 also produces 36 VDC, which it uses to interface with the Vertical Column Lift buttons. PS3 mounts on the left-
hand side of the generator under the Left Side Cover as shown in the following illustration.
PS3 has three connectors:
• The input power connector, which accepts 115 VAC from the Power/Motor Relay PCB.
• The output power connector provides 24 VDC of the proper polarity to drive the Vertical Column Lift up or down.
3
