Vertical Column Lift
Power/Signal Interface PCB
The Power/Signal Interface PCB routes +24 Volts from PS2 to the Power/Motor Relay PCB. This voltage operates the relays on
the Power/Signal Interface PCB. Fuse F11 protects this line. The fuse is rated at 3.15 amps and resides on the Power Signal
Interface PCB.

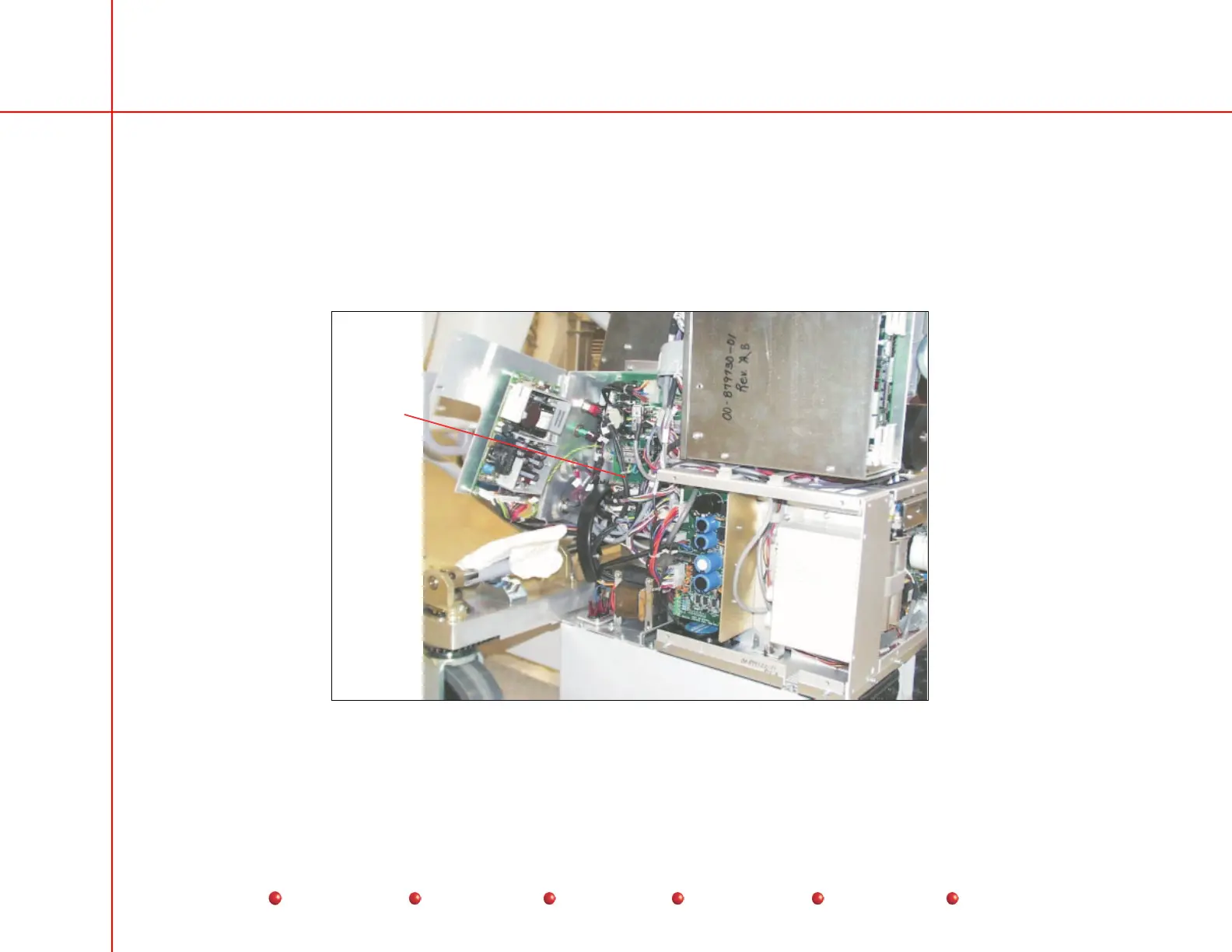

The Power/Signal Interface PCB resides on the left-hand side of the generator as shown in the following illustration.
Power/Signal
Interface PCB
Power/Signal Interface PCB
7
