Diagnostics
Small Filament Acknowledge
Filament Dive OK
Ground Integrity
Fault
Over KVP Fault
DS1
Filament Driver PCB
DS1
DS2
DS3
DS4
Generator Driver PCB
Filament Drive Signals
Drive B Low
Drive B High
Drive A Low
Drive A High
Overload Fault
Saturation Fault
HV_GEN_ON
Shutdown
On during X-Ray exposures - X-Ray Enable
On during X-Ray exposures - X-Ray On
Disable_HV
DS1 is lit during bootup (16-18 arrows),
is off after bootup, and will light at power
off and then decay as the pre-charge caps
are discharged.
=ON
=OFF
Generator Driver PCB
Filament Driver PCB
LEDs shown as they appear after bootup

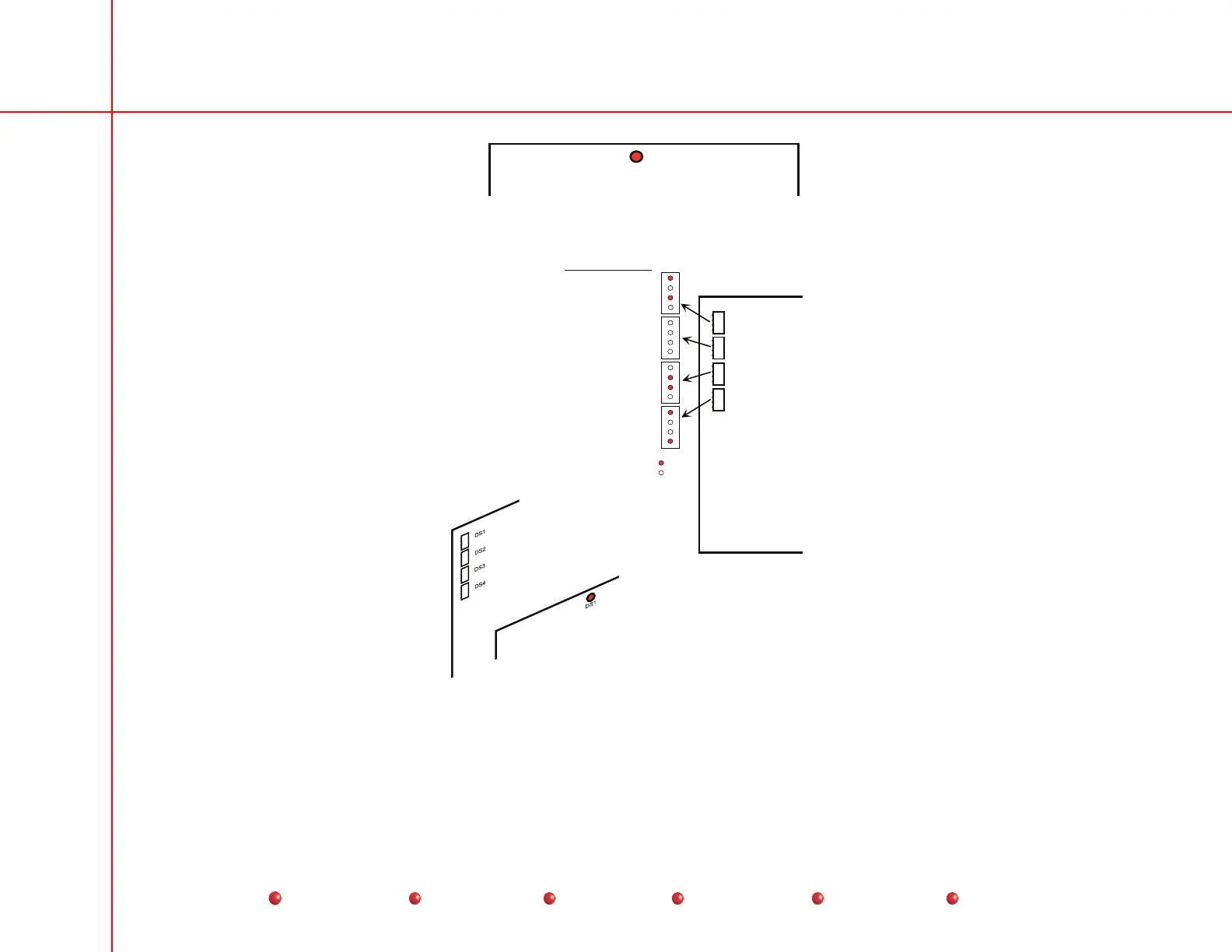

LEDs on Generator Driver and Filament Driver PCBs
32
