Calibration

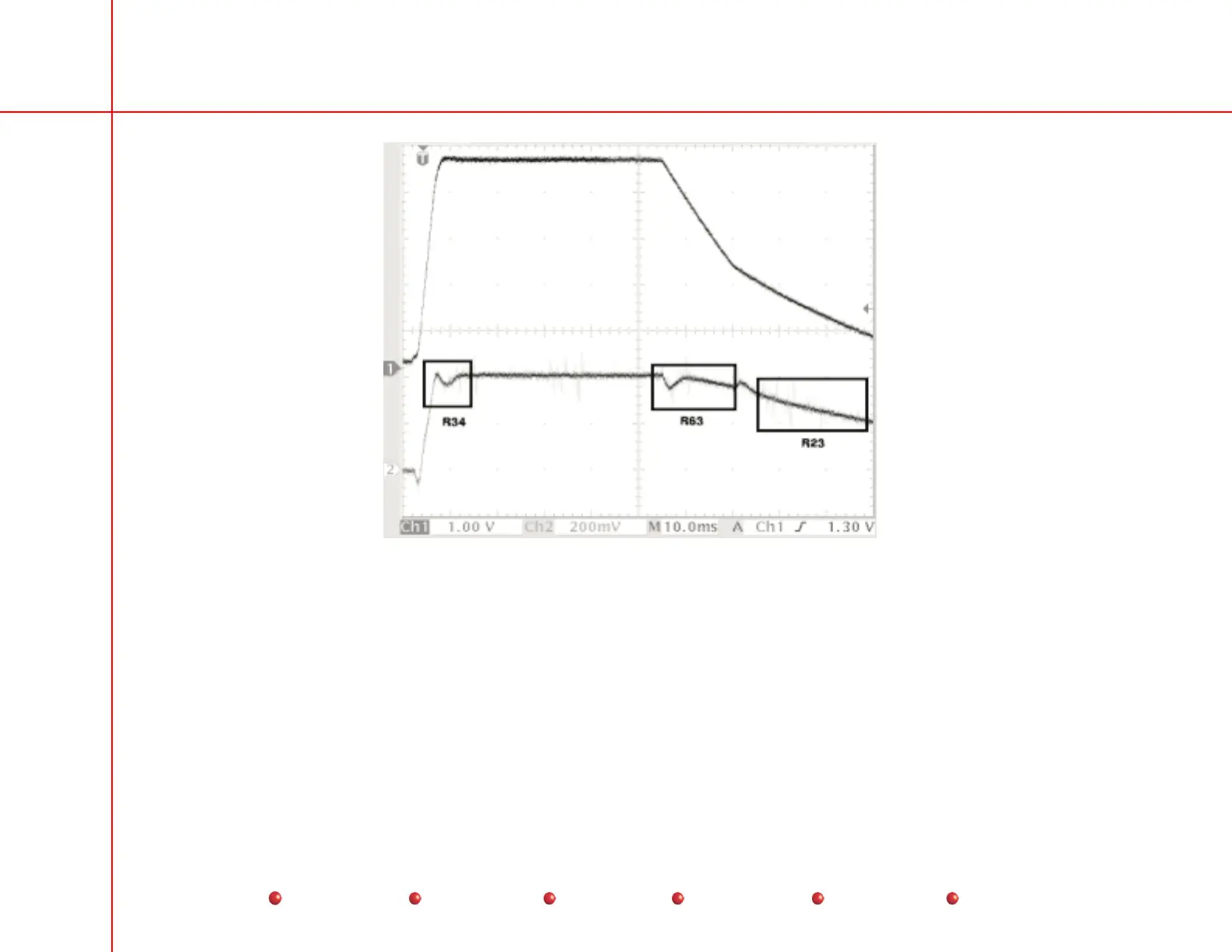

Properly Adjusted Differentiator Waveforms
Note: R63 moves the sloping portion of the form between the dip at left and the hump at right, up and down. R23 moves the
trailing slope up and down to the right of the hump. The object is to get a smooth curve, ignoring the dip and hump.
Adjust R34 to give a rise time with a small dip at the beginning of the ramp, and the peak of the ramp not higher than the
flat portion.
14
