Locking the Workstation Casters
The Workstation brake pedal has three positions:
1. The UP position locks two of the four Workstation casters facing straight ahead, making it easier to push the
Workstation longer distances, such as down a hallway.
2. The CENTER pedal position permits all casters to pivot freely so you can maneuver the Workstation around
corners and obstacles. Use this pedal position when placing the Workstation in its final operating location.

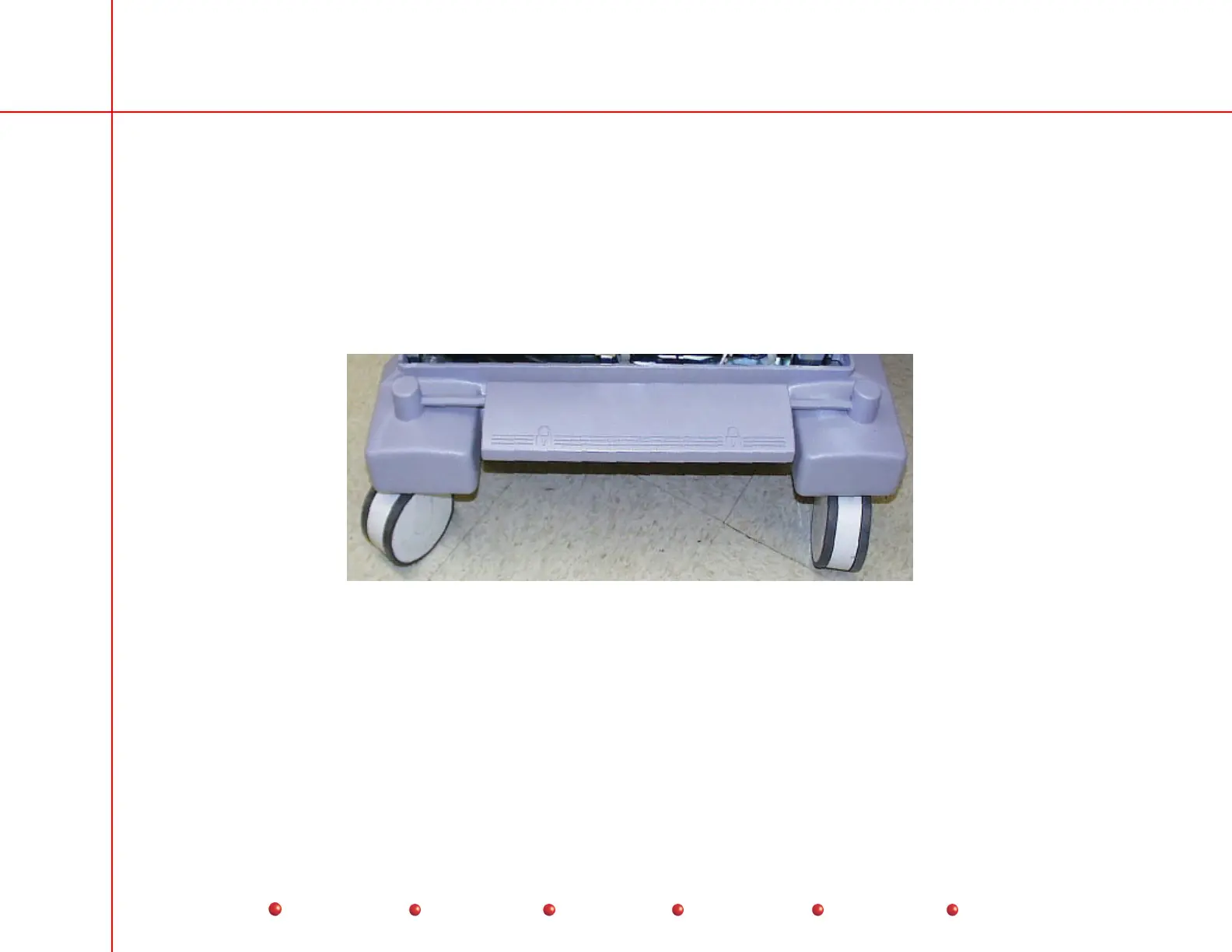

Brake Pedal
