OEC 9800C-Arm - Page 378

Replacement
The rear cover protects most of the C-Arm electronics, so it will probably be the cover you remove most often. You must remove
the rear cover before you can remove the left side cover or front leg cover. Follow these steps:

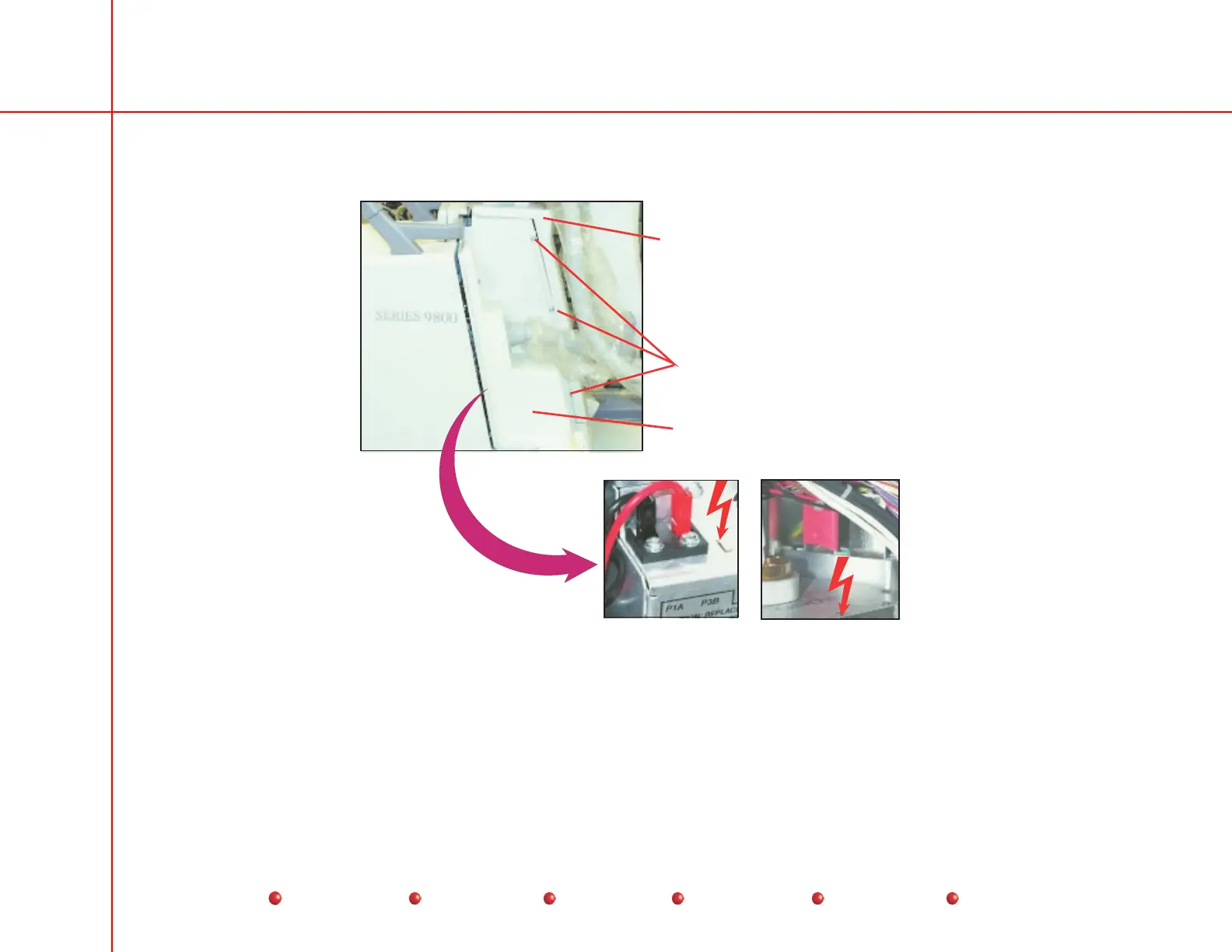

P3B
High Energy
Capacitor
Bus Bars
Front Cover
Three Mounting Screws
Right Side Cover
Right Side Cover Details
1. Make certain Workstation’s AC power plug is not connected to AC outlet.
2. Turn off battery breaker.
