OEC 9800C-Arm - Page 415

Replacement
Busbars on Capacitor/Power Module
8. Disconnect multi-pin plug P4 from J4.
9. Free all wiring from cable restraints on the Capacitor/Power module and move the wiring out of the way.

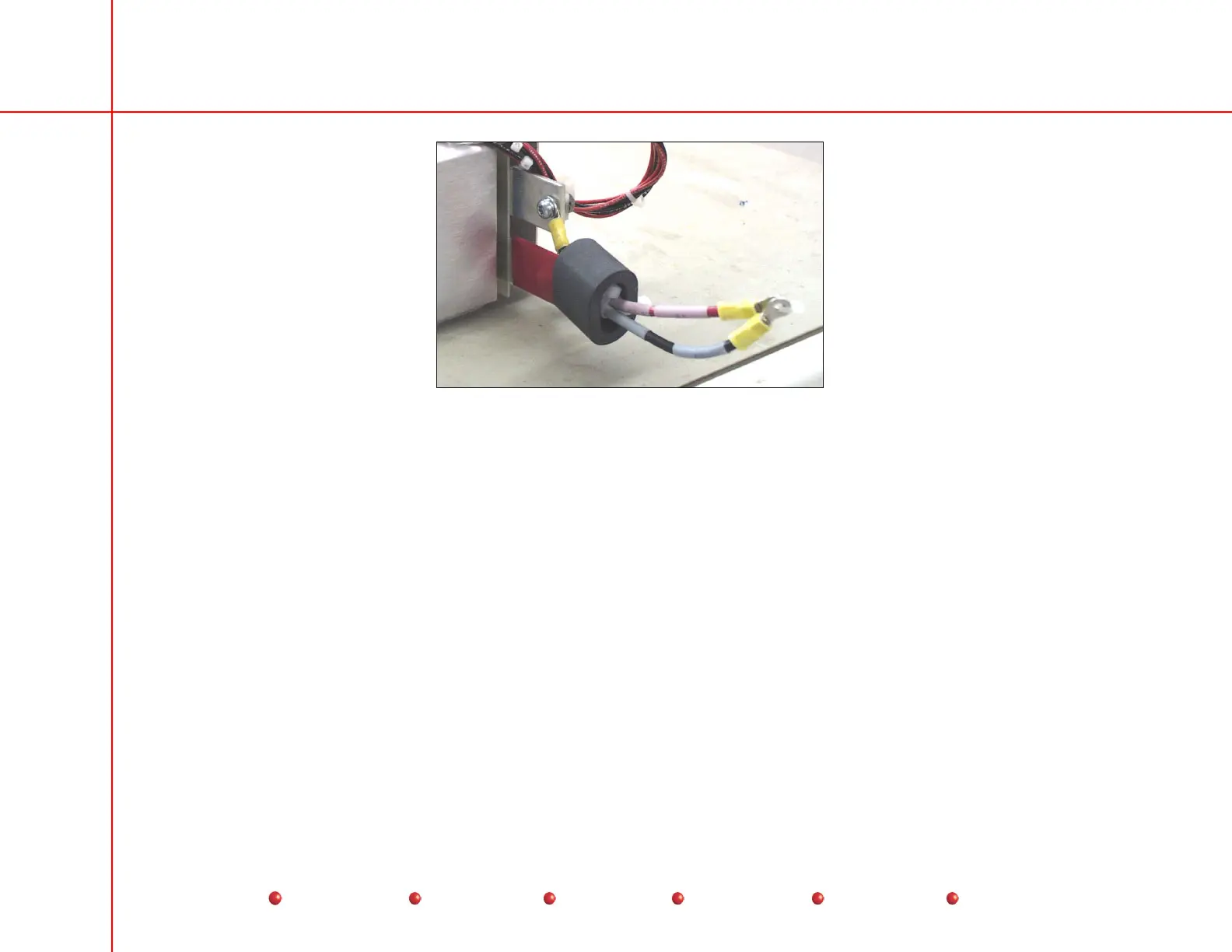

10. Disconnect busbar wiring from connectors on IGBT Snubber PCB. Be careful not to damage heat shrink on positive busbar.
