Image Subsystem
The following is a basic description of the Image Subsystem hardware. Refer to Section 7 - Image Subsystem for
detailed circuit descriptions, troubleshooting information, and component replacement instructions.
The Image Subsystem processes video from the CCD camera to produce enhanced images for the Display system
monitors and Cine Disk subsystem. The Image Subsystem also produces standard resolution interlaced video for the
optional VCR, and digitized images for the DICOM interface, optional laser camera, and optional hardcopy devices.
The Image Subsystem includes the Video Controller PCB, Image Processor PCB, and Display Adapter PCB, all of
which are located in the Workstation’s Electronics box.
Video Controller PCB
Image Processor Pcb
Display Adapter PCB

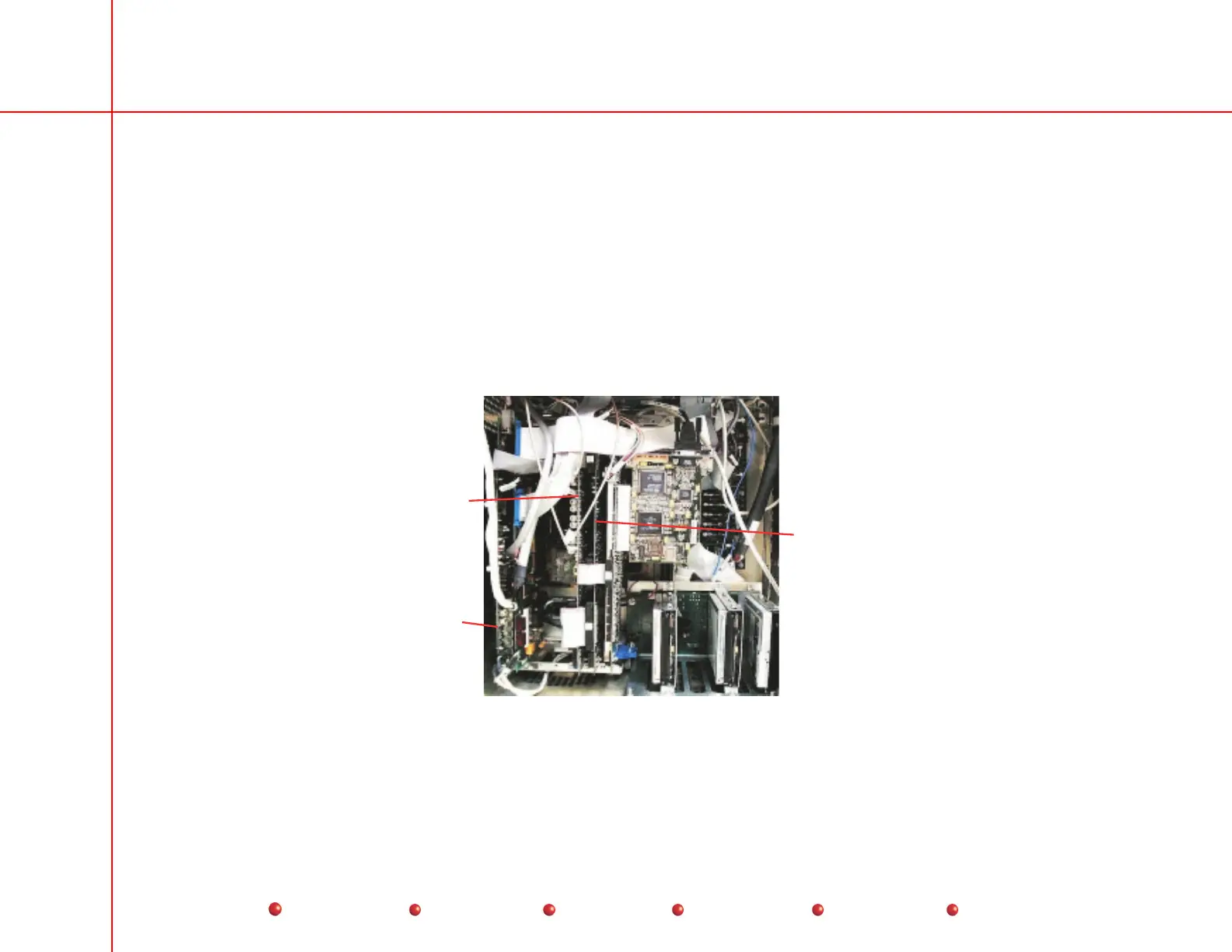

Image Subsystem Components in Electronics Box
