SCSI Devices
The SCSI Controller PCB described previously in the HOST CONTROLLER paragraphs supports several optional
devices, such as a removable media hard disk drive. The SCSI controller can support up to seven SCSI devices.
Removable Dynamic Digital Disk
The removable disk drive, located on the Workstation rear panel, is supplied as a standard feature on Cardiac
Workstations, and is available as an option on others. The removable cartridge can hold about two gigabytes of data.
The fast transfer rate and large storage capacity make it ideal for archiving cine runs.

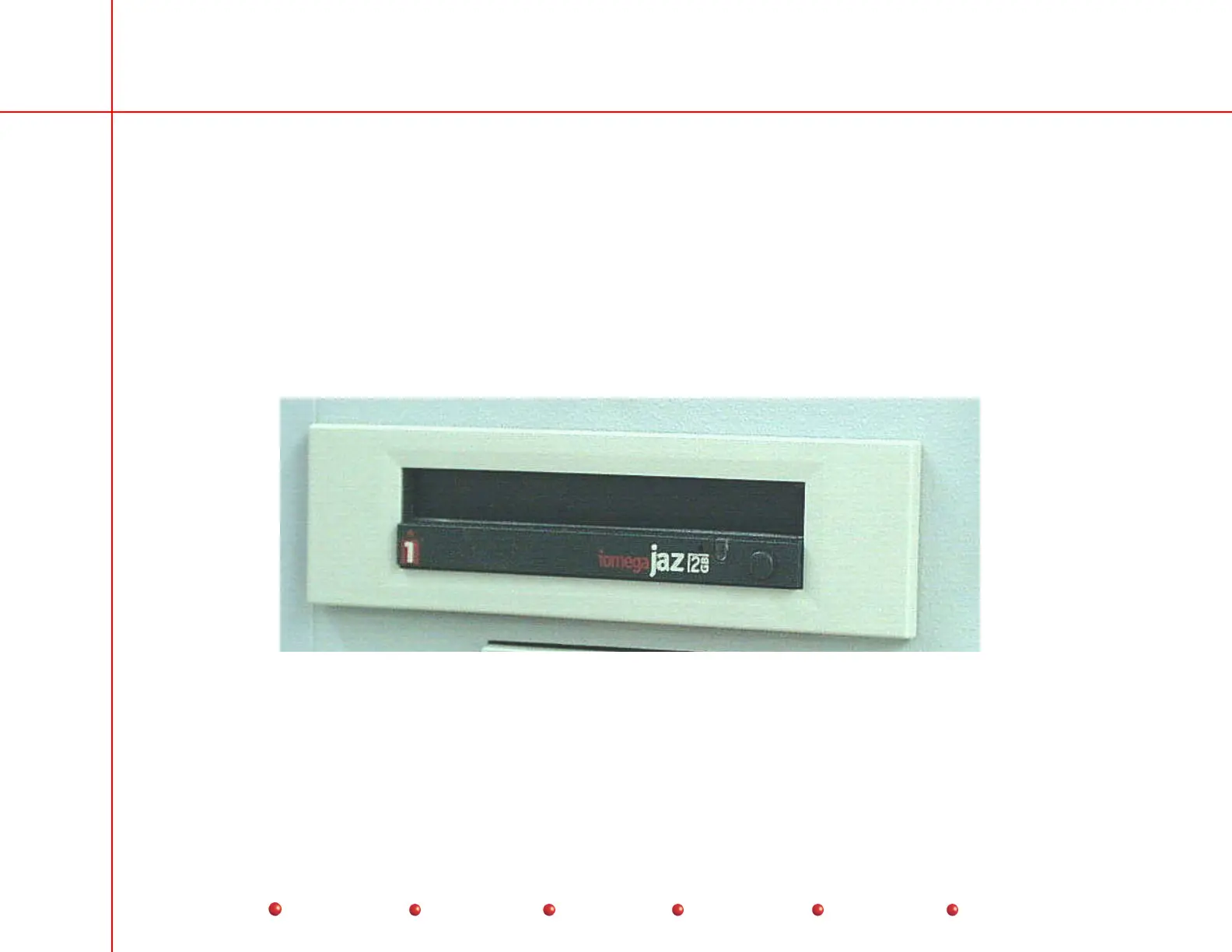

Removable Media Hard Disk Drive
