Laser Camera Interface
The laser camera interface is an 8-bit ISA PCB that mounts in ISA slot 3 of the Host Pentium CPU motherboard.
Under program control, this PCB transmits digital archived images over a 37-pin D-type connector to a remote laser
imaging camera connected to the Workstation rear panel. The laser camera interface supports both the 3M MMU910
and Kodak Model 100 digital interface protocols.
For complete information on the laser camera interface, refer to Section 7 - Image Subsystem.

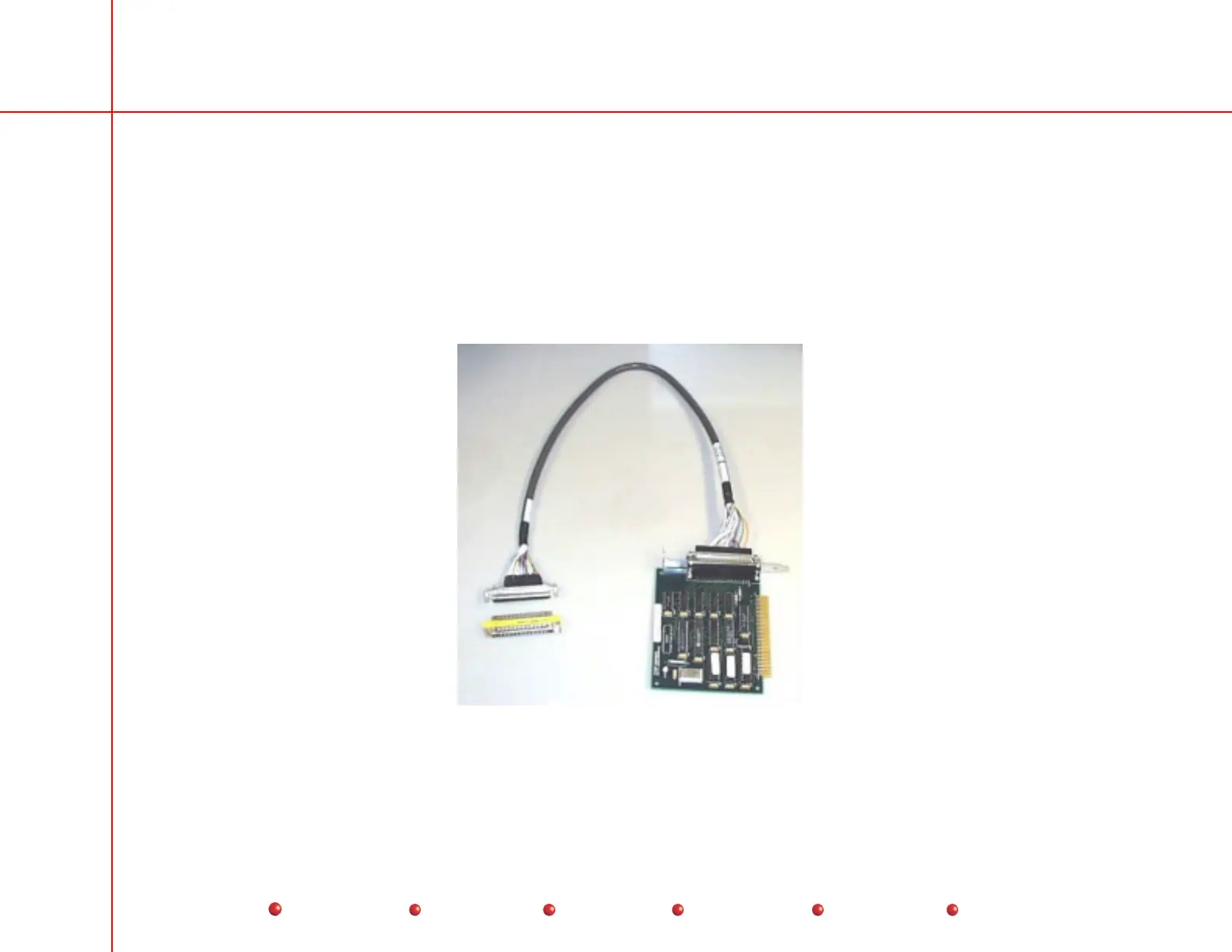

Laser Camera Interface
